Product Info Summary
| SKU: | A00017-2 |
|---|---|
| Size: | 100 μg/vial |
| Reactive Species: | Human |
| Host: | Rabbit |
| Application: | ELISA, Flow Cytometry, WB |
Customers Who Bought This Also Bought
Product info
Product Name
Anti-TLR4 Antibody Picoband®
SKU/Catalog Number
A00017-2
Size
100 μg/vial
Form
Lyophilized
Description
Boster Bio Anti-TLR4 Antibody Picoband® catalog # A00017-2. Tested in ELISA, Flow Cytometry, WB applications. This antibody reacts with Human. The brand Picoband indicates this is a premium antibody that guarantees superior quality, high affinity, and strong signals with minimal background in Western blot applications. Only our best-performing antibodies are designated as Picoband, ensuring unmatched performance.
Storage & Handling
At -20°C for one year from date of receipt. After reconstitution, at 4°C for one month. It can also be aliquotted and stored frozen at -20°C for six months. Avoid repeated freezing and thawing.
Cite This Product
Anti-TLR4 Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # A00017-2)
Host
Rabbit
Contents
Each vial contains 4 mg Trehalose, 0.9 mg NaCl, 0.2 mg Na2HPO4.
Clonality
Polyclonal
Isotype
Rabbit IgG
Immunogen
E.coli-derived human TLR4 recombinant protein (Position: Q39-Q616).
*Blocking peptide can be purchased. Costs vary based on immunogen length. Contact us for pricing.
Cross-reactivity
No cross-reactivity with other proteins.
Reactive Species
A00017-2 is reactive to TLR4 in Human
Reconstitution
Adding 0.2 ml of distilled water will yield a concentration of 500 μg/ml.
Observed Molecular Weight
100 kDa
Calculated molecular weight
137910 MW
Background of TLR4
TLR4, Toll-like receptor 4, is a protein that in humans is encoded by the TLR4 gene. TLR 4 is a toll-like receptor. TLR4, the human homolog of Drosophila Toll, is a type I transmembrane protein with an extracellular domain consisting of a leucine-rich repeat region and an intracellular domain homologous to that of human interleukin-1 receptor. The TLR4 gene is mapped to chromosome 9q32-q33 by fluorescence in situ hybridization.It detects lipopolysaccharide from Gram-negative bacteria and is thus important in the activation of the innate immune system.The protein encoded by this gene is a member of the Toll-like receptor(TLR) family, which plays a fundamental role in pathogen recognition and activation of innate immunity. TLRs are highly conserved from Drosophila to humans and share structural and functional similarities. They recognize pathogen-associated molecular patterns(PAMPs) that are expressed on infectious agents, and mediate the production of cytokines necessary for the development of effective immunity.
Antibody Validation
Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.
Application & Images
Applications
A00017-2 is guaranteed for ELISA, Flow Cytometry, WB Boster Guarantee
Assay Dilutions Recommendation
The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.
Western blot, 0.25-0.5 μg/ml, Human
Flow Cytometry (Fixed), 1-3 μg/1x106 cells, Human
ELISA, 0.1-0.5 μg/ml, -
Positive Control
WB: human HCCT tissue
FCM: U937 cell
Validation Images & Assay Conditions
Click image to see more details

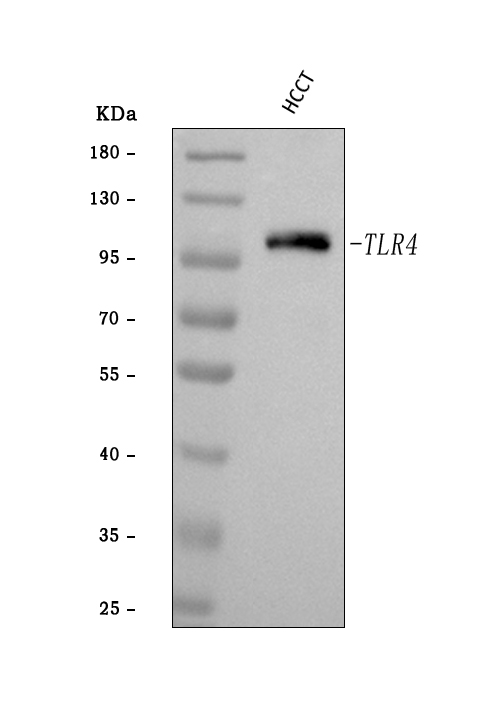

Figure 1. Western blot analysis of TLR4 using anti-TLR4 antibody (A00017-2).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human HCCT tissue lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-TLR4 antigen affinity purified polyclonal antibody (Catalog # A00017-2) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for TLR4 at approximately 100 kDa. The expected band size for TLR4 is at 96 kDa.
Click image to see more details
Figure 2. Flow Cytometry analysis of U937 cells using anti-TLR4 antibody (A00017-2).
Overlay histogram showing U937 cells stained with A00017-2 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-TLR4 Antibody (A00017-2, 1 μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10 μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1 μg/1x106) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Protein Target Info & Infographic
Gene/Protein Information For TLR4 (Source: Uniprot.org, NCBI)
Gene Name
TLR4
Full Name
Toll-like receptor 4
Weight
137910 MW
Superfamily
Toll-like receptor family
Alternative Names
Hypoxia-inducible factor 1-alpha; HIF-1-alpha; HIF1-alpha; ARNT-interacting protein; Basic-helix-loop-helix-PAS protein MOP1; Class E basic helix-loop-helix protein 78; bHLHe78; PAS domain-containing protein 8; HIF1A; BHLHE78, MOP1 TLR4 ARMD10, CD284, TLR-4, TOLL toll like receptor 4 toll-like receptor 4|hToll|homolog of Drosophila toll|toll like receptor 4 protein
*If product is indicated to react with multiple species, protein info is based on the gene entry specified above in "Species".For more info on TLR4, check out the TLR4 Infographic
We have 30,000+ of these available, one for each gene! Check them out.
In this infographic, you will see the following information for TLR4: database IDs, superfamily, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post-translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact [email protected].
Specific Publications For Anti-TLR4 Antibody Picoband® (A00017-2)
Hello CJ!
No publications found for A00017-2
*Do you have publications using this product? Share with us and receive a reward. Ask us for more details.
