Product Info Summary
| SKU: | A02812-3 |
|---|---|
| Size: | 100 μg/vial |
| Reactive Species: | Human, Monkey, Mouse, Rat |
| Host: | Rabbit |
| Application: | ELISA, IHC, WB |
Customers Who Bought This Also Bought
Product info
Product Name
Anti-ERK5/MAPK7 Antibody Picoband®
SKU/Catalog Number
A02812-3
Size
100 μg/vial
Form
Lyophilized
Description
Boster Bio Anti-ERK5/MAPK7 Antibody Picoband® catalog # A02812-3. Tested in ELISA, IHC, WB applications. This antibody reacts with Human, Monkey, Mouse, Rat. The brand Picoband indicates this is a premium antibody that guarantees superior quality, high affinity, and strong signals with minimal background in Western blot applications. Only our best-performing antibodies are designated as Picoband, ensuring unmatched performance.
Storage & Handling
Store at -20˚C for one year from date of receipt. After reconstitution, at 4˚C for one month. It can also be aliquotted and stored frozen at -20˚C for six months. Avoid repeated freeze-thaw cycles.
Cite This Product
Anti-ERK5/MAPK7 Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # A02812-3)
Host
Rabbit
Contents
Each vial contains 4mg Trehalose, 0.9mg NaCl, 0.2mg Na2HPO4, 0.01mg NaN3.
Clonality
Polyclonal
Isotype
Rabbit IgG
Immunogen
E.coli-derived human ERK5/MAPK7 recombinant protein (Position: K22-P816).
*Blocking peptide can be purchased. Costs vary based on immunogen length. Contact us for pricing.
Cross-reactivity
No cross-reactivity with other proteins.
Reactive Species
A02812-3 is reactive to MAPK7 in Human, Monkey, Mouse, Rat
Reconstitution
Add 0.2ml of distilled water will yield a concentration of 500ug/ml.
Observed Molecular Weight
115-120 kDa
Calculated molecular weight
96950 MW
Background of ERK5/BMK1
Mitogen-activated protein kinase 7 also known as MAP kinase 7 is an enzyme that in humans is encoded by the MAPK7 gene. The protein encoded by this gene is a member of the MAP kinase family. MAP kinases act as an integration point for multiple biochemical signals, and are involved in a wide variety of cellular processes such as proliferation, differentiation, transcription regulation and development. This kinase is specifically activated by mitogen-activated protein kinase kinase 5 (MAP2K5/MEK5). It is involved in the downstream signaling processes of various receptor molecules including receptor type kinases, and G protein-coupled receptors. In response to extracelluar signals, this kinase translocates to cell nucleus, where it regulates gene expression by phosphorylating, and activating different transcription factors. Four alternatively spliced transcript variants of this gene encoding two distinct isoforms have been reported.
Antibody Validation
Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.
Application & Images
Applications
A02812-3 is guaranteed for ELISA, IHC, WB Boster Guarantee
Assay Dilutions Recommendation
The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.
Western blot, 0.25-0.5μg/ml, Human, Mouse, Rat, Monkey
Immunohistochemistry (Paraffin-embedded Section), 2-5μg/ml, Human
ELISA, 0.1-0.5μg/ml, -
Positive Control
WB: human K562 whole cell, human Hek293 whole cell, human Hela whole cell, monkey Cos-7 whole cell, rat brain tissue, mouse brain tissue, mouse NIH/3T3 whole cell
IHC: human breast cancer tissue, human lung cancer tissue
Validation Images & Assay Conditions
Click image to see more details

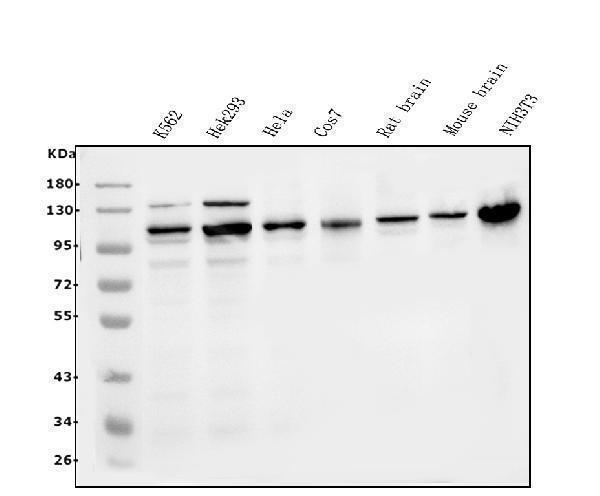

Figure 1. Western blot analysis of ERK5/MAPK7 using anti-ERK5/MAPK7 antibody (A02812-3).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: human K562 whole cell lysates,
Lane 2: human Hek293 whole cell lysates,
Lane 3: human Hela whole cell lysates,
Lane 4: monkey Cos-7 whole cell lysates,
Lane 5: rat brain tissue lysates,
Lane 6: mouse brain tissue lysates,
Lane 7: mouse NIH/3T3 whole cell lysates.
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-ERK5/MAPK7 antigen affinity purified polyclonal antibody (Catalog # A02812-3) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for ERK5/MAPK7 at approximately 115-120KD. The expected band size for ERK5/MAPK7 is at 88KD.
Click image to see more details
Figure 2. IHC analysis of ERK5/MAPK7 using anti-ERK5/MAPK7 antibody (A02812-3).
ERK5/MAPK7 was detected in paraffin-embedded section of human breast cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2μg/ml rabbit anti-ERK5/MAPK7 Antibody (A02812-3) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Click image to see more details
Figure 3. IHC analysis of ERK5/MAPK7 using anti-ERK5/MAPK7 antibody (A02812-3).
ERK5/MAPK7 was detected in paraffin-embedded section of human lung cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2μg/ml rabbit anti-ERK5/MAPK7 Antibody (A02812-3) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Protein Target Info & Infographic
Gene/Protein Information For MAPK7 (Source: Uniprot.org, NCBI)
Gene Name
MAPK7
Full Name
Mitogen-activated protein kinase 7
Weight
96950 MW
Superfamily
protein kinase superfamily
Alternative Names
E3 SUMO-protein ligase PIAS3; Protein inhibitor of activated STAT protein 3; PIAS3 MAPK7 BMK1, ERK4, ERK5, PRKM7 mitogen-activated protein kinase 7 mitogen-activated protein kinase 7|BMK-1|BMK1 kinase|ERK-5|MAP kinase 7|MAPK 7|big MAP kinase 1|extracellular-signal-regulated kinase 5
*If product is indicated to react with multiple species, protein info is based on the gene entry specified above in "Species".For more info on MAPK7, check out the MAPK7 Infographic
We have 30,000+ of these available, one for each gene! Check them out.
In this infographic, you will see the following information for MAPK7: database IDs, superfamily, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post-translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact [email protected].
Specific Publications For Anti-ERK5/MAPK7 Antibody Picoband® (A02812-3)
Hello CJ!
A02812-3 has been cited in 2 publications:
*The publications in this section are manually curated by our staff scientists. They may differ from Bioz's machine gathered results. Both are accurate. If you find a publication citing this product but is missing from this list, please let us know we will issue you a thank-you coupon.
Effects of the Wenyang Zhenshuai Granule on the Expression of LncRNA-MiR143HG/miR-143 Regulating ERK5 in H9C2 Cardiomyocytes
Mehrdoost, S., Yaghmaei, P., Jafary, H., Ebrahim-Habibi, A. (2021). The therapeutic effects of berberine plus sitagliptin in a rat model of fatty liver disease. Iranian Journal of Basic Medical Sciences, 24(4), 451-459. doi: 10.22038/ijbms.2021.52239.11822
Species: Rat
A02812-3 usage in article: APP:WB, SAMPLE:LIVER TISSUE, DILUTION:NA
