Product Info Summary
| SKU: | EK0358 |
|---|---|
| Size: | 96 wells/kit, with removable strips. |
| Reactive Species: | Rat |
| Application: | ELISA |
| Sample Types: | cell culture supernatants, serum and plasma (heparin, EDTA). |
Product info
Product Name
Rat Fractalkine/CX3CL1 ELISA Kit PicoKine®
View all CX3CL1/Fractalkine ELISA kits
SKU/Catalog Number
EK0358
Size
96 wells/kit, with removable strips.
*Question: How many samples can I assay/run in this kit?
Description
Rat Fractalkine/CX3CL1 ELISA Kit PicoKine® (96 Tests). Quantitate Rat Cx3cl1 in cell culture supernatants, serum and plasma (heparin, EDTA). Sensitivity: 10pg/ml. The brand Picokine indicates this is a premium quality ELISA kit. Each Picokine kit delivers precise quantification, high sensitivity, and excellent reproducibility. Only our most reliable and effective kits qualify as Picokine, guaranteeing top-tier results for your assays.
Storage & Handling
Store at 4°C for 6 months, at -20°C for 12 months. Avoid multiple freeze-thaw cycles (Ships with gel ice, can store for up to 3 days in room temperature. Freeze upon receiving.)
Cite This Product
Rat Fractalkine/CX3CL1 ELISA Kit PicoKine® (Boster Biological Technology, Pleasanton CA, USA, Catalog # EK0358)
Clonality of Antibodies
See Datasheet for details
Standard Protein
Expression system for standard: NS0; Immunogen sequence: Q25-T334
Sensitivity
<10 pg/ml
Assay Range
312 pg/ml - 20,000 pg/ml
Standard Dilution Instructions
See datasheet of EK0358 for more details
Cross-reactivity
There is no detectable cross-reactivity with other relevant proteins.
Reactive Species
EK0358 is reactive to Cx3cl1 in Rat samples
Validated Sample Types
cell culture supernatants, serum and plasma (heparin, EDTA).
Application Guarantee
EK0358 is guaranteed for ELISA in Rat by Boster Guarantee
See how Boster Bio validate our ELISA kits: ELISA Validation Information
Background of CX3CL1/Fractalkine
Chemokine (C-X3-C motif) ligand 1 (CX3CL1) is a large cytokine protein of 373 amino acids, it contains multiple domains and is the only known member of the CX3C chemokine family. It is also commonly known under the names fractalkine (in humans) and neurotactin (in mice). CX3CL1 is produced as a long protein (with 373-amino acid in humans) with an extended mucin-like stalk and a chemokine domain on top. The mucin-like stalk permits it to bind to the surface of certain cells. However a soluble (90 kD) version of this chemokine has also been observed. Soluble CX3CL1 potently chemoattracts T cells and monocytes, while the cell-bound chemokine promotes strong adhesion of leukocytes to activated endothelial cells, where it is primarily expressed. CX3CL1 elicits its adhesive and migratory functions by interacting with the chemokine receptor CX3CR1. Its gene is located on human chromosome 16 along with some CC chemokines known as CCL17 and CCL22. It can act as a mediator of smooth muscle cell migration in human atherosclerosis, rather than mediate inflammatory cell recruitment.
Kit Components
| Catalog Number | Description | Quantity |
|---|---|---|
| EK0358-CAP | Anti-Rat Cx3cl1 Pre-coated 96-well strip microplate | 1 |
| EK0358-ST | Rat Cx3cl1 Standard | 2 vials, 20 ng/tube |
| EK0358-DA | Rat Cx3cl1 Biotinylated antibody (100x) | 100ul |
| AR1103 | Avidin-Biotin-Peroxidase Complex (100x) | 100ul |
| AR1106-1 | Sample Diluent | 30ml |
| AR1106-2 | Antibody Diluent | 12ml |
| AR1106-3 | Avidin-Biotin-Peroxidase Diluent | 12ml |
| AR1104 | Color Developing Reagent (TMB) | 10ml |
| AR1105 | Stop Solution | 10ml |
| AR1106-5 | Wash Buffer (25x) | 20ml |
| PLA-SEA | Adhesive plate sealers | 4 |
*The kit components are not available for individual purchase.
Materials Required But Not Included In Kit
- Microplate Reader capable of reading absorbance at 450nm.
- Incubator.
- Automated plate washer (optional).
- Pipettes and pipette tips capable of precisely dispensing 0.5 µl through 1 ml volumes of aqueous solutions.
- Multichannel pipettes are recommended for large amount of samples.
- Deionized or distilled water.
- 500ml graduated cylinders.
- Test tubes for dilution.
Data Examples, Quality Control Data
Validation Standard Curve O.D. At 450nm
| Concentration (pg/ml) | 0 | 312 | 625 | 1250 | 2500 | 5000 | 10000 | 20000 |
| O.D. | 0.003 | 0.071 | 0.148 | 0.276 | 0.497 | 0.927 | 1.440 | 1.895 |
Data Example Images
Click image to see more details

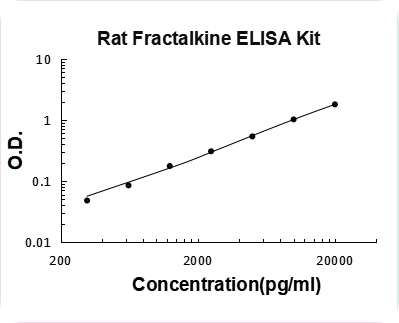

Rat Fractalkine PicoKine ELISA Kit standard curve
Intra Assay Consistency & Inter Assay Consistency
We measured random samples of Rat Fractalkine/CX3CL1 ELISA Kit PicoKine® within the same batch/lot to ensure the consistency of the kits' performances. ELISA intra assay consistency is measured using wells from the same plate/assay kit. ELISA inter assay consistency is measured using wells from different plates from the same batch production/lot.
| Intra-Assay Precision | Inter-Assay Precision | |||||
|---|---|---|---|---|---|---|
| Sample | 1 | 2 | 3 | 1 | 2 | 3 |
| n | 16 | 16 | 16 | 24 | 24 | 24 |
| Mean (pg/ml) | 448 | 1815 | 9967 | 464 | 1947 | 10491 |
| Standard deviation | 32.7 | 76.23 | 687.72 | 35.72 | 87.61 | 912.71 |
| CV (%) | 7.3% | 4.2% | 6.9% | 7.7% | 4.5% | 8.7% |
Reproducibility
We ensure reproducibility by testing three samples with differing concentrations of CX3CL1/Fractalkine in ELISA kits from four different production batches/lots.
| Lots | Lot 1 (pg/ml) | Lot 2 (pg/ml) | Lot 3 (pg/ml) | Lot 4 (pg/ml) | Mean (pg/ml) | Standard Deviation | CV (%) |
|---|---|---|---|---|---|---|---|
| Sample 1 | 448 | 452 | 401 | 450 | 437 | 21.26 | 4.8% |
| Sample 2 | 1815 | 1598 | 1565 | 1811 | 1697 | 116.34 | 6.8% |
| Sample 3 | 9967 | 9196 | 9761 | 9169 | 9523 | 348.57 | 3.6% |
Protein Target Info & Infographic
Gene/Protein Information For Cx3cl1 (Source: Uniprot.Org, NCBI)
Gene Name
Cx3cl1
Full Name
Fractalkine
Weight
41977 MW
Superfamily
intercrine delta family
Alternative Names
Fractalkine;C-X3-C motif chemokine 1;CX3C membrane-anchored chemokine;Neurotactin;Small-inducible cytokine D1;Processed fractalkine;Cx3cl1;Acc1, Fkn, Scyd1; CX3CL1 ABCD-3, C3Xkine, CXC3, CXC3C, NTN, NTT, SCYD1, fractalkine, neurotactin C-X3-C motif chemokine ligand 1 fractalkine|C-X3-C motif chemokine 1|CX3C membrane-anchored chemokine|chemokine (C-X3-C motif) ligand 1|small inducible cytokine subfamily D (Cys-X3-Cys), member 1 (fractalkine, neurotactin)|small inducible cytokine subfamily D (Cys-X3-Cys), member-1|small-inducible cytokine D1
*if product is indicated to react with multiple species, protein info is based on the gene entry specified above in "species".For more info on Cx3cl1, check out the Cx3cl1 Infographic
We have 30,000+ of these available, one for each gene! check them out.
In this infographic you will see the following information for Cx3cl1: database IDs, super-family, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact us [email protected].
Specific Publications For Rat Fractalkine/CX3CL1 ELISA Kit PicoKine® (EK0358)
Hello CJ!
EK0358 has been cited in 1 publications:
*The publications in this section are manually curated by our staff scientists. They may differ from Bioz's machine gathered results. Both are accurate. If you find a publication citing this product but is missing from this list, please let us know we will issue you a thank-you coupon.
Zhao, B., He, E., Pan, Y., Xu, H., & Song, X. (2017). Kindlin-1 is a key protein in hyperbaric oxygen therapy for the treatment of neuropathic pain. Molecular Pain, 13, 1-10. doi: 10.1177/1744806917730254
