Product Info Summary
SKU: | EK0715 |
---|---|
Size: | 96 wells/kit, with removable strips. |
Reactive Species: | Human |
Application: | ELISA |
Sample Types: | cell culture supernatants, serum and plasma (heparin). |
Product info
Product Name
Human CD163 / M130 ELISA Kit PicoKine®
SKU/Catalog Number
EK0715
Size
96 wells/kit, with removable strips.
*Question: How many samples can I assay/run in this kit?
Description
Human CD163 / M130 ELISA Kit PicoKine® (96 Tests). Quantitate Human CD163 in cell culture supernatants, serum and plasma (heparin). Sensitivity: 150pg/ml. The brand Picokine indicates this is a premium quality ELISA kit. Each Picokine kit delivers precise quantification, high sensitivity, and excellent reproducibility. Only our most reliable and effective kits qualify as Picokine, guaranteeing top-tier results for your assays.
Storage & Handling
Store at 4°C for 6 months, at -20°C for 12 months. Avoid multiple freeze-thaw cycles (Ships with gel ice, can store for up to 3 days in room temperature. Freeze upon receiving.)
Cite This Product
Human CD163 / M130 ELISA Kit PicoKine® (Boster Biological Technology, Pleasanton CA, USA, Catalog # EK0715)
Clonality of Antibodies
See Datasheet for details
Standard Protein
Expression system for standard: NS0; Immunogen sequence: G41-S1045
Sensitivity
<150 pg/ml
Assay Range
1.56 ng/ml - 100 ng/ml
Standard Dilution Instructions
See datasheet of EK0715 for more details
Cross-reactivity
There is no detectable cross-reactivity with other relevant proteins.
Reactive Species
EK0715 is reactive to CD163 in Human samples
Validated Sample Types
cell culture supernatants, serum and plasma (heparin).
Application Guarantee
EK0715 is guaranteed for ELISA in Human by Boster Guarantee
See how Boster Bio validate our ELISA kits: ELISA Validation Information
Background of CD163
CD163 (Cluster of Differentiation 163) is a human protein encoded by the CD163 gene. It has also been shown to mark cells of monocyte/macrophage lineage. CD163, a member of the scavenger receptor cysteine-rich (SRCR) superfamily, is exclusively expressed by monocytes and macrophages. Using FISH, somatic cell hybrid analysis, and radiation hybrid analysis, CD163 gene was mapped the to chromosome 12p13.3. CD163 is upregulated in a large range of diseases inflammatory diseases including type 2 diabetes, macrophage activation sickness, Tangier's disease, reumatoid arthritis etc.
Kit Components
Catalog Number | Description | Quantity |
---|---|---|
EK0715-CAP | Anti-Human CD163 Pre-coated 96-well strip microplate | 1 |
EK0715-ST | Human CD163 Standard | 2 vials, 100 ng/tube |
EK0715-DA | Human CD163 Biotinylated antibody (100x) | 100ul |
AR1103 | Avidin-Biotin-Peroxidase Complex (100x) | 100ul |
AR1106-1 | Sample Diluent | 30ml |
AR1106-2 | Antibody Diluent | 12ml |
AR1106-3 | Avidin-Biotin-Peroxidase Diluent | 12ml |
AR1104 | Color Developing Reagent (TMB) | 10ml |
AR1105 | Stop Solution | 10ml |
AR1106-5 | Wash Buffer (25x) | 20ml |
PLA-SEA | Adhesive plate sealers | 4 |
*The kit components are not available for individual purchase.
Materials Required But Not Included In Kit
- Microplate Reader capable of reading absorbance at 450nm.
- Incubator.
- Automated plate washer (optional).
- Pipettes and pipette tips capable of precisely dispensing 0.5 µl through 1 ml volumes of aqueous solutions.
- Multichannel pipettes are recommended for large amount of samples.
- Deionized or distilled water.
- 500ml graduated cylinders.
- Test tubes for dilution.
Data Examples, Quality Control Data & Sample Dilution
Validation Standard Curve O.D. At 450nm
Concentration (ng/ml) | 0 | 1.56 | 3.12 | 6.25 | 12.5 | 25 | 50 | 100 |
O.D. | 0.012 | 0.046 | 0.096 | 0.205 | 0.449 | 0.973 | 1.864 | 2.469 |
Data Example Images
Click image to see more details

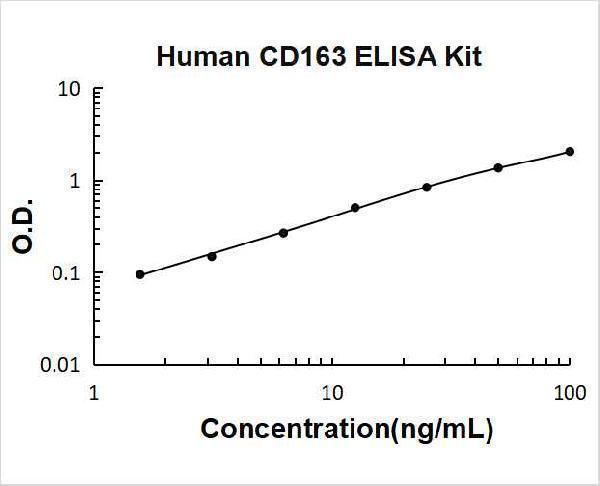

Human CD163 PicoKine ELISA Kit standard curve
Recommended Sample Dilution Ratios
According to our internal validation assays using this ELISA kit, to detect CD163, Dilution ratio of 1:40, concentration in serum and plasma is around 500 ng/ml..
Some articles we found to cite concentrations of CD163 in samples: 24548423, 25392926, 25156085, 24978196 (Pubmed IDs).
Intra Assay Consistency & Inter Assay Consistency
We measured random samples of Human CD163 / M130 ELISA Kit PicoKine® within the same batch/lot to ensure the consistency of the kits' performances. ELISA intra assay consistency is measured using wells from the same plate/assay kit. ELISA inter assay consistency is measured using wells from different plates from the same batch production/lot.
Intra-Assay Precision | Inter-Assay Precision | |||||
---|---|---|---|---|---|---|
Sample | 1 | 2 | 3 | 1 | 2 | 3 |
n | 16 | 16 | 16 | 24 | 24 | 24 |
Mean (pg/ml) | 3520 | 11456 | 44674 | 3368 | 11294 | 48653 |
Standard deviation | 144.32 | 526.97 | 3037.82 | 195.34 | 632.46 | 3357.05 |
CV (%) | 4.1% | 4.6% | 6.8% | 5.8% | 5.6% | 6.9% |
Reproducibility
We ensure reproducibility by testing three samples with differing concentrations of CD163 in ELISA kits from four different production batches/lots.
Lots | Lot 1 (pg/ml) | Lot 2 (pg/ml) | Lot 3 (pg/ml) | Lot 4 (pg/ml) | Mean (pg/ml) | Standard Deviation | CV (%) |
---|---|---|---|---|---|---|---|
Sample 1 | 3520 | 3403 | 3222 | 3050 | 3298 | 178.59 | 5.4% |
Sample 2 | 11456 | 11119 | 13238 | 12078 | 11972 | 807.44 | 6.7% |
Sample 3 | 44674 | 42932 | 42302 | 44756 | 43666 | 1072.77 | 2.4% |
Protein Target Info & Infographic
Gene/Protein Information For CD163 (Source: Uniprot.Org, NCBI)
Gene Name
CD163
Full Name
Scavenger receptor cysteine-rich type 1 protein M130
Weight
125451 MW
Alternative Names
Scavenger receptor cysteine-rich type 1 protein M130;Hemoglobin scavenger receptor;CD163;Soluble CD163;sCD163;CD163;M130; CD163 M130, MM130, SCARI1 CD163 molecule scavenger receptor cysteine-rich type 1 protein M130|hemoglobin scavenger receptor|macrophage-associated
*if product is indicated to react with multiple species, protein info is based on the gene entry specified above in "species".For more info on CD163, check out the CD163 Infographic
We have 30,000+ of these available, one for each gene! check them out.
In this infographic you will see the following information for CD163: database IDs, super-family, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact us [email protected].
Specific Publications For Human CD163 / M130 ELISA Kit PicoKine® (EK0715)
Hello CJ!
EK0715 has been cited in 2 publications:
*The publications in this section are manually curated by our staff scientists. They may differ from Bioz's machine gathered results. Both are accurate. If you find a publication citing this product but is missing from this list, please let us know we will issue you a thank-you coupon.
Increased macrophage activation marker soluble CD163 is associated with graft dysfunction and metabolic derangements in renal transplant recipients
SIV Infection Impairs the Central Nervous System in Chinese Rhesus Macaques
Recommended Resources
Here are featured tools and databases that you might find useful.
- Boster's Pathways Library
- Protein Databases
- Bioscience Research Protocol Resources
- Data Processing & Analysis Software
- Photo Editing Software
- Scientific Literature Resources
- Research Paper Management Tools
- Molecular Biology Software
- Primer Design Tools
- Bioinformatics Tools
- Phylogenetic Tree Analysis
Customer Reviews
Have you used Human CD163 / M130 ELISA Kit PicoKine®?
Submit a review and receive an Amazon gift card.
- $30 for a review with an image
0 Reviews For Human CD163 / M130 ELISA Kit PicoKine®
Customer Q&As
Have a question?
Find answers in Q&As, reviews.
Can't find your answer?
Submit your question
9 Customer Q&As for Human CD163 / M130 ELISA Kit PicoKine®
Question
Q: Can CD163 ELISA Kits be used with tissue homogenates (or other non-validated sample types)?
T. Green
Verified customer
Asked: 2020-10-27
Answer
A: Unfortunately, Boster Bio has not routinely validated tissue homogenates as a sample type for ELISA kits. This does not mean that ELISA kits are not valid for other sample types than we have tested: it means further investigation is required. One will need to perform a spike and recovery study to determine if an unvalidated sample type will work with a particular kit. To perform a spike and recovery experiment, one should divide a sample into two aliquots. In one of the aliquots, the user should spike in a known amount of the kit standard. a dilution series is performed comparing the spiked versus the unspiked sample. Generally, samples with expected recovery and linearity between 80-120% are considered acceptable. This method can be used to validate any sample type that has not been evaluated by Boster Bio. for a more detailed spike and recovery protocol, please contact technical support.
Note: acceptable ranges should be determined individually by each laboratory. Additionally, technical support can help determine if a buffer component is not compatible with a given ELISA kit. please see the Citations tab on the product webpage for peer-reviewed papers utilizing a wide range of sample types. We also have an innovator's reward program where if the user validates our ELISA kits in applications or samples previously not validated by Boster Bio or other users, and share such information with us by submit a review, we will reward the user's efforts with a free antibody or ELISA kit from our catalog. Biocompare.com will also give $20 Amazon giftcard as an additional reward, if the review is submitted there as well.
Boster Scientific Support
Answered: 2020-10-27
Question
Q: What is the optimal O.D. value for CD163 ELISA kit? I used your CD163 ELISA on serum samples. For my positive control, I received an O.D. value of 0.826, while my negative control received a value of 0.136. I obtained both of these controls from the ELISA kit, where your kit's typical data shows O.D. values much higher than my positive control and your background is lower. My samples O.D. values are around 0.225 and the highest is only 0.357. can I consider these samples contain CD163 even though the O.D. values are not very high?
Verified Customer
Verified customer
Asked: 2020-10-16
Answer
A: The absolute O.D. values may change according to incubation time. The more you incubate the higher the O.D. values are going to be. an important assessment should be is whether your sample O.D. values are statistically significantly higher than your blank values. in your example, you could extend your development time in the substrate incubation step to obtain higher O.D. values, as long as your negative controls' O.D. values are not increasing faster in proportion to your positive controls. normally, a sample with O.D. value 2 standard deviations higher than your negative controls can be considered positive. We calculate the sensitivity of this ELISA kit by changeing cutoff O.D. value, calculated as the average of 20 negative controls plus 2 standard deviations of the 20 negative controls, into a concentration. in other words, when we claim this CD163 ELISA kit to have sensitivity of 150pg/ml, that means the minimum amount of CD163 that can be declared/interpreted as positive by the above standard is 150pg/ml.
Boster Scientific Support
Answered: 2020-10-16
Question
Q: how to thaw whole blood sample for CD163 ELISA after freezing?
P. Adams
Verified customer
Asked: 2020-09-27
Answer
A: we do not recommend freezing and thaw whole blood. erythrocytes are fragile and, if frozen and thawed, will undergo hemolysis rendering the samples useless. To keep your blood samples to test CD163 for a later time, you should let the blood clot in glass tubes and collect the serum to freeze for later use.
Boster Scientific Support
Answered: 2020-09-27
Question
Q: Are Boster Bio recombinant proteins and antibodies sterile?
M. Hill
Verified customer
Asked: 2020-09-14
Answer
A: although the vials are bottled using aseptic techniques, heat-treated vials, and sterile stock solutions, they are not considered or guaranteed to be sterile. If sterile material is required for an experiment, the material can be filtered through a 0.2 micron filter designed for use with biological fluids.
Boster Scientific Support
Answered: 2020-09-14
Question
Could EDTA be used as an anticoagulant to collect plasma samples or do you advise to stick with the procedure in the EK0715 manual?
Verified customer
Asked: 2020-06-17
Answer
Usually we advise to follow the manual because EDTA plasma has chelating properties and may negatively affect results using the HSP70 ELISA Kit (High-Sensitivity) (EK7109).
Boster Scientific Support
Answered: 2020-06-17
Question
Q: how many samples can be assayed in a Picokine® ELISA Kit?
A. Jackson
Verified customer
Asked: 2019-07-17
Answer
A: The Picokine® ELISA Kits will generally run a 7-point standard curve, non-specific binding wells, and 39 samples in duplicate. this may might differ by kit so please refer to each datasheet for details.
Boster Scientific Support
Answered: 2019-07-17
Question
Q: is there any online tool I can use to streamline the data analysis for my ELISA results?
Verified Customer
Verified customer
Asked: 2019-05-07
Answer
A: We have a web based ELISA curve fitting (4pl) and data analysis tool. Please give it a try: bosterbio.com/biology-research-tools/ELISA-data-analysis-online. You can also consult our article on ELISA data analysis: bosterbio.com/ELISA-data-analysis-instructions
Boster Scientific Support
Answered: 2019-05-07
Question
Q: can I use EDTA plasma as samples in Human CD163 Picokine® ELISA Kit (Catalog # EK0715)?
Verified Customer
Verified customer
Asked: 2018-09-01
Answer
A: Chelating agents such as EDTA, Heparin and Citrate can attach metal ions from the functional domain of CD163 causing degradation of its protein structure. CD163 may be denatured as a result and may compromise the assay's measurements. The chilating sites could also be too close to the epitopes required for detection and block the antigen antibody reaction. We have tested the CD163 ELISA, treating samples with various anticoagulants and decided that heparin can be used for treatment of blood/plasma samples. Do not use other anticoagulents when collecting samples.
Boster Scientific Support
Answered: 2018-09-01
Question
Q: what is the protocol regarding preparation of cell lysates prepared for use in Picokine® ELISA kits?
B. Chakrabarti
Verified customer
Asked: 2018-05-14
Answer
A: for those Picokine® ELISAs where cell or tissue lysate is a validated sample type, sample preparation instructions for lysate are included in the product insert. Components in lysate and lysis buffer may impact immunoreactivity, so if lysate is not a validated sample type, care must be taken in sample preparation and validation.
Boster Scientific Support
Answered: 2018-05-14
