Product Info Summary
| SKU: | A01285 |
|---|---|
| Size: | 100 μg/vial |
| Reactive Species: | Human, Mouse, Rat |
| Host: | Rabbit |
| Application: | ELISA, Flow Cytometry, IF, ICC, WB |
Customers Who Bought This Also Bought
Product info
Product Name
Anti-SMC5 Antibody Picoband®
SKU/Catalog Number
A01285
Size
100 μg/vial
Form
Lyophilized
Description
Boster Bio Anti-SMC5 Antibody Picoband® catalog # A01285. Tested in ELISA, Flow Cytometry, IF, ICC, WB applications. This antibody reacts with Human, Mouse, Rat. The brand Picoband indicates this is a premium antibody that guarantees superior quality, high affinity, and strong signals with minimal background in Western blot applications. Only our best-performing antibodies are designated as Picoband, ensuring unmatched performance.
Storage & Handling
At -20°C for one year from date of receipt. After reconstitution, at 4°C for one month. It can also be aliquotted and stored frozen at -20°C for six months. Avoid repeated freezing and thawing.
Cite This Product
Anti-SMC5 Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # A01285)
Host
Rabbit
Contents
Each vial contains 4 mg Trehalose, 0.9 mg NaCl, 0.2 mg Na2HPO4.
Clonality
Polyclonal
Isotype
Rabbit IgG
Immunogen
E.coli-derived human SMC5 recombinant protein (Position: Q14-Q1089).
*Blocking peptide can be purchased. Costs vary based on immunogen length. Contact us for pricing.
Cross-reactivity
No cross-reactivity with other proteins.
Reactive Species
A01285 is reactive to SMC5 in Human, Mouse, Rat
Reconstitution
Adding 0.2 ml of distilled water will yield a concentration of 500 µg/ml.
Observed Molecular Weight
130 kDa
Calculated molecular weight
128.806kDa
Background of SMC5
Structural maintenance of chromosomes protein 5 is a protein encoded by the SMC5 gene in human. Predicted to enable ATP binding activity. Involved in several processes, including DNA recombination; cellular senescence; and positive regulation of maintenance of mitotic sister chromatid cohesion. Located in cell junction; chromosome; and nuclear body. Part of Smc5-Smc6 complex.
Antibody Validation
Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.
Application & Images
Applications
A01285 is guaranteed for ELISA, Flow Cytometry, IF, ICC, WB Boster Guarantee
Assay Dilutions Recommendation
The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.
Western blot, 0.25-0.5 µg/ml, Human, Mouse, Rat
Immunocytochemistry/Immunofluorescence, 5 μg/ml, Human
Flow Cytometry (Fixed), 1-3 µg/1x106 cells, Human
ELISA, 0.1-0.5 µg/ml, Human
Positive Control
WB: human Hela whole cell, human MOLT-4 whole cell, rat testis tissue, mouse NIH/3T3 whole cell
ICC/IF: Hela cell
FCM: THP-1 cell
Validation Images & Assay Conditions
Click image to see more details

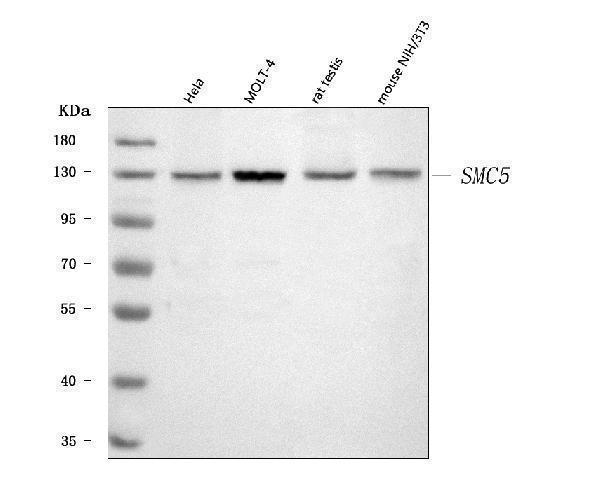

Figure 1. Western blot analysis of SMC5 using anti-SMC5 antibody (A01285).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Hela whole cell lysates,
Lane 2: human MOLT-4 whole cell lysates,
Lane 3: rat testis tissue lysates,
Lane 4: mouse NIH/3T3 whole cell lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-SMC5 antigen affinity purified polyclonal antibody (Catalog # A01285) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for SMC5 at approximately 130 kDa. The expected band size for SMC5 is at 129 kDa.
Click image to see more details

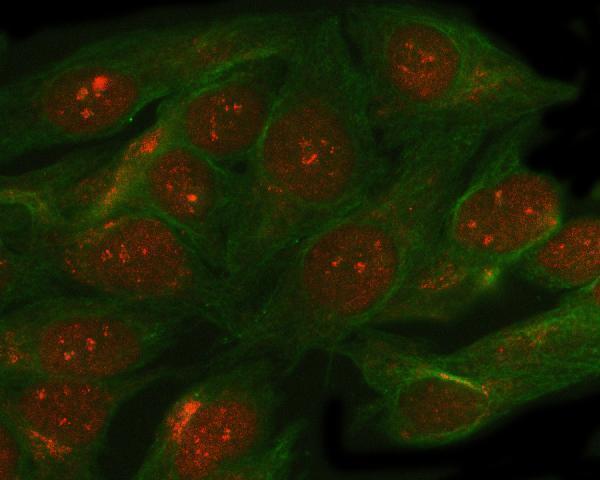

Figure 2. IF analysis of SMC5 using anti-SMC5 antibody (A01285) and anti-Beta Tubulin antibody (M01857-3).
SMC5 was detected in immunocytochemical section of Hela cell. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent (AR0022) for 15 mins. The cells were blocked with 10% goat serum. And then incubated with 5 μg/mL rabbit anti-SMC5 Antibody (A01285) and mouse anti-Beta Tubulin antibody (M01857-3) overnight at 4°C. Cy3 Conjugated Goat Anti-Rabbit IgG (BA1032) and DyLight®488 Conjugated Goat Anti-Mouse IgG (BA1126) were used as secondary antibody at 1:500 dilution and incubated for 30 minutes at 37°C. Visualize using a fluorescence microscope and filter sets appropriate for the label used.
Click image to see more details
Figure 3. Flow Cytometry analysis of THP-1 cells using anti-SMC5 antibody (A01285).
Overlay histogram showing THP-1 cells stained with A01285 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-SMC5 Antibody (A01285, 1 μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10 μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1 μg/1x106) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Protein Target Info & Infographic
Gene/Protein Information For SMC5 (Source: Uniprot.org, NCBI)
Gene Name
SMC5
Full Name
Structural maintenance of chromosomes protein 5
Weight
128.806kDa
Superfamily
SMC family
Alternative Names
Hepatic leukemia factor; HLF SMC5 SMC5L1 structural maintenance of chromosomes 5 structural maintenance of chromosomes protein 5|SMC protein 5|SMC-5|SMC5 structural maintenance of chromosomes 5-like 1|hSMC5
*If product is indicated to react with multiple species, protein info is based on the gene entry specified above in "Species".For more info on SMC5, check out the SMC5 Infographic
We have 30,000+ of these available, one for each gene! Check them out.
In this infographic, you will see the following information for SMC5: database IDs, superfamily, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post-translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact [email protected].
