Anti-SMARCAD1 Antibody Picoband®

Figure 1. IHC analysis of SMARCAD1 using anti-SMARCAD1 antibody (A06049-1).
SMARCAD1 was detected in paraffin-embedded section of human colon cancer tissues. Heat mediated antigen retrieval was performed in citrate buffer (pH6, epitope retrieval solution) for 20 mins. The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1μg/ml rabbit anti-SMARCAD1 Antibody (A06049-1) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC)(Catalog # SA1022) with DAB as the chromogen.

Figure 2. IHC analysis of SMARCAD1 using anti-SMARCAD1 antibody (A06049-1).
SMARCAD1 was detected in paraffin-embedded section of human mammary cancer tissues. Heat mediated antigen retrieval was performed in citrate buffer (pH6, epitope retrieval solution) for 20 mins. The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1μg/ml rabbit anti-SMARCAD1 Antibody (A06049-1) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC)(Catalog # SA1022) with DAB as the chromogen.

Figure 3. IHC analysis of SMARCAD1 using anti-SMARCAD1 antibody (A06049-1).
SMARCAD1 was detected in paraffin-embedded section of mouse brain tissues. Heat mediated antigen retrieval was performed in citrate buffer (pH6, epitope retrieval solution) for 20 mins. The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1μg/ml rabbit anti-SMARCAD1 Antibody (A06049-1) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC)(Catalog # SA1022) with DAB as the chromogen.

Figure 4. IHC analysis of SMARCAD1 using anti-SMARCAD1 antibody (A06049-1).
SMARCAD1 was detected in paraffin-embedded section of rat brain tissues. Heat mediated antigen retrieval was performed in citrate buffer (pH6, epitope retrieval solution) for 20 mins. The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1μg/ml rabbit anti-SMARCAD1 Antibody (A06049-1) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC)(Catalog # SA1022) with DAB as the chromogen.

Figure 5. Western blot analysis of SMARCAD1 using anti-SMARCAD1 antibody (A06049-1).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: human K562 whole cell lysates,
Lane 2: human HL-60 whole cell lysates,
Lane 3: human U2OS whole cell lysates,
Lane 4: human U-87MG whole cell lysates,
Lane 5: human HepG2 whole cell lysates,
Lane 6: human THP-1 whole cell lysates,
Lane 7: human A549 whole cell lysates.
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-SMARCAD1 antigen affinity purified polyclonal antibody (Catalog # A06049-1) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for SMARCAD1 at approximately 150KD. The expected band size for SMARCAD1 is at 117KD.

Figure 6. Western blot analysis of SMARCAD1 using anti-SMARCAD1 antibody (A06049-1).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: rat testicular tissue lysates,
Lane 2: mouse thymus tissue lysates,
Lane 3: mouse lung tissue lysates,
Lane 4: mouse testicular tissue lysates,
Lane 5: mouse kidney tissue lysates.
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-SMARCAD1 antigen affinity purified polyclonal antibody (Catalog # A06049-1) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for SMARCAD1 at approximately 150KD. The expected band size for SMARCAD1 is at 117KD.

Figure 7. IF analysis of SMARCAD1 using anti-SMARCAD1 antibody (A06049-1).
SMARCAD1 was detected in immunocytochemical section of A431 cells. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent (AR0022) for 15 mins. The cells were blocked with 10% goat serum. And then incubated with 2μg/mL rabbit anti-SMARCAD1 Antibody (A06049-1) overnight at 4°C. DyLight®488 Conjugated Goat Anti-Rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.

Figure 8. Flow Cytometry analysis of SiHa cells using anti-SMARCAD1 antibody (A06049-1).
Overlay histogram showing SiHa cells stained with A06049-1 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-SMARCAD1 Antibody (A06049-1, 1μg/1x10⁶ cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10μg/1x10⁶ cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x10⁶) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.

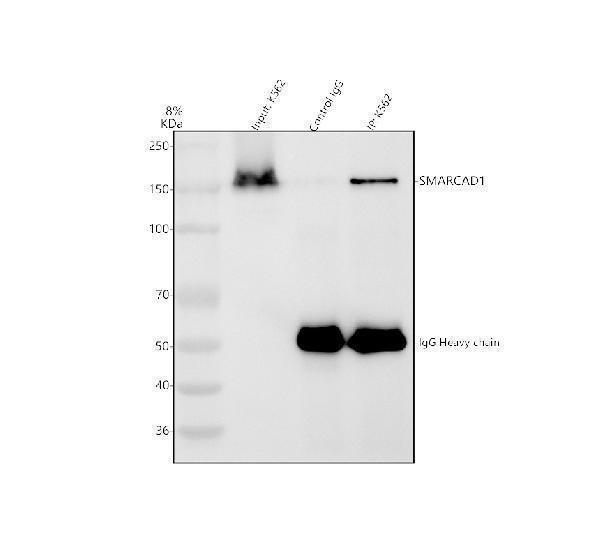

Figure 9. Immunoprecipitating SMARCAD1 in K562 whole cell lysate.
Western blot analysis of SMARCAD1 using anti-SMARCAD1 antibody (A06049-1).
Lane 1: K562 whole cell lysates (30ug)
Lane 2: Rabbit control IgG instead of anti-SMARCAD1 antibody in K562 whole cell lysate.
Lane 3: anti-SMARCAD1 antibody (2μg) + K562 whole cell lysate (500μg)
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-SMARCAD1 antigen affinity purified polyclonal antibody (A06049-1) at a dilution of 0.5 μg/mL and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for SMARCAD1 at approximately 150 kDa. The expected band size for SMARCAD1 is at 117 kDa.
