Anti-RAB11B Antibody Picoband® (monoclonal, 6C5)

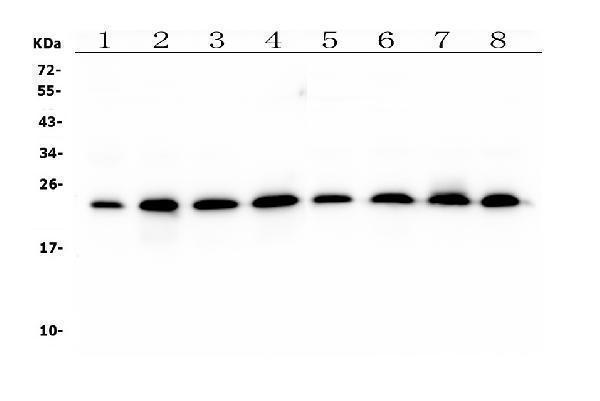

Figure 1. Western blot analysis of RAB11B using anti-RAB11B antibody (M04526).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: human HEK293 tissue lysates,
Lane 2: human Hela whole cell lysates,
Lane 3: human A549 whole cell lysates,
Lane 4: human placenta whole cell lysates,
Lane 5: human HepG2 whole cell lysates.
Lane 6: human Caco-2 whole cell lysates.
Lane 7: human THP-1 whole cell lysates.
Lane 8: human Raji whole cell lysates.
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with mouse anti-RAB11B antigen affinity purified polyclonal antibody (Catalog # M04526) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-mouse IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1001) with Tanon 5200 system. A specific band was detected for RAB11B at approximately 24KD. The expected band size for RAB11B is at 24KD.

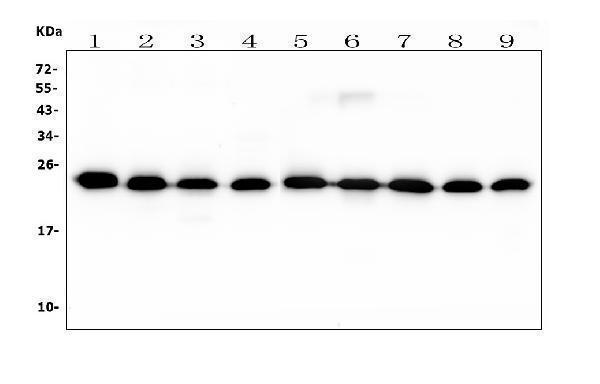

Figure 2. Western blot analysis of RAB11B using anti-RAB11B antibody (M04526).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: rat brain tissue lysates,
Lane 2: rat lung whole cell lysates,
Lane 3: rat spleen whole cell lysates,
Lane 4: rat C6 whole cell lysates,
Lane 5: mouse brain whole cell lysates.
Lane 6: mouse lung whole cell lysates.
Lane 7: mouse spleen whole cell lysates.
Lane 8: mouse Neuro-2a whole cell lysates.
Lane 9: mouse RAW246.7 whole cell lysates.
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with mouse anti-RAB11B antigen affinity purified polyclonal antibody (Catalog # M04526) at 0.5 g/mL overnight at 4C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-mouse IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1001) with Tanon 5200 system. A specific band was detected for RAB11B at approximately 24KD. The expected band size for RAB11B is at 24KD.

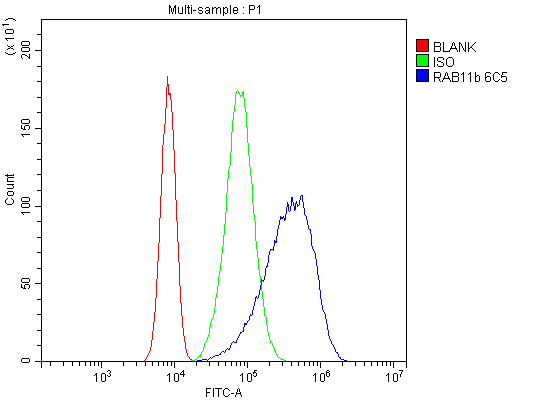

Figure 3. Flow Cytometry analysis of Caco-2 cells using anti-RAB11B antibody (M04526).
Overlay histogram showing Caco-2 cells stained with M04526 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with mouse anti-RAB11B Antibody (M04526, 1μg/1x10⁶ cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-mouse IgG (BA1126, 5-10μg/1x10⁶ cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was mouse IgG (1μg/1x10⁶) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.

Figure 4. IF analysis of RAB11B using anti-RAB11B antibody (M04526).
RAB11B was detected in immunocytochemical section of MCF7 cells. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent (AR0022) for 15 mins. The cells were blocked with 10% goat serum. And then incubated with 2μg/mL mouse anti-RAB11B Antibody (M04526) overnight at 4°C. DyLight®488 Conjugated Goat Anti-Mouse IgG (BA1126) was used as secondary antibody at 1:100 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.
