Anti-NCAPH Antibody Picoband™

Product Name

Anti-NCAPH Antibody Picoband™

View all NCAPH Antibodies

SKU/Catalog Number

A09559-3

Size

100 µg/vial

Form

Lyophilized

Description

Boster Bio Anti-NCAPH Antibody Picoband™ catalog # A09559-3. Tested in ELISA, IF, ICC, WB, Flow Cytometry applications. This antibody reacts with Human.

Storage & Handling

At -20°C for one year from date of receipt. After reconstitution, at 4°C for one month. It can also be aliquotted and stored frozen at -20°C for six months. Avoid repeated freezing and thawing.

Cite This Product

Anti-NCAPH Antibody Picoband™ (Boster Biological Technology, Pleasanton CA, USA, Catalog # A09559-3)

Host

Rabbit

Contents

Each vial contains 4 mg Trehalose, 0.9 mg NaCl, 0.2 mg Na2HPO4.

Clonality

Polyclonal

Isotype

Rabbit IgG

Immunogen

E.coli-derived human NCAPH recombinant protein (Position: R91-K721).

*Blocking peptide can be purchased. Costs vary based on immunogen length. Contact us for pricing.

Cross-reactivity

No cross-reactivity with other proteins.

Reactive Species

A09559-3 is reactive to NCAPH in Human

Applications

A09559-3 is guaranteed for ELISA, Flow Cytometry, IF, ICC, WB Boster Guarantee

Observed Molecular Weight

100 kDa

Calculated molecular weight

Background of NCAPH

Condensin complex subunit 2 also known as chromosome-associated protein H (CAP-H) or non-SMC condensin I complex subunit H (NCAPH) is a protein that in humans is encoded by the NCAPH gene. This gene encodes a member of the barr gene family and a regulatory subunit of the condensin complex. This complex is required for the conversion of interphase chromatin into condensed chromosomes. The protein encoded by this gene is associated with mitotic chromosomes, except during the early phase of chromosome condensation. During interphase, the protein has a distinct punctate nucleolar localization. Alternatively spliced transcript variants encoding different proteins have been described.

Antibody Validation

Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.

View more details

Reconstitution

Adding 0.2 ml of distilled water will yield a concentration of 500 µg/ml.

Assay Dilutions Recommendation

The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.

Western blot, 0.1-0.25 µg/ml, Human
Immunocytochemistry/Immunofluorescence, 5 µg/ml, Human
Flow Cytometry (Fixed), 1-3 µg/1x10⁶ cells, Human
Direct ELISA, 0.1-0.5 µg/ml, Human

Validation Images & Assay Conditions

Click image to see more details

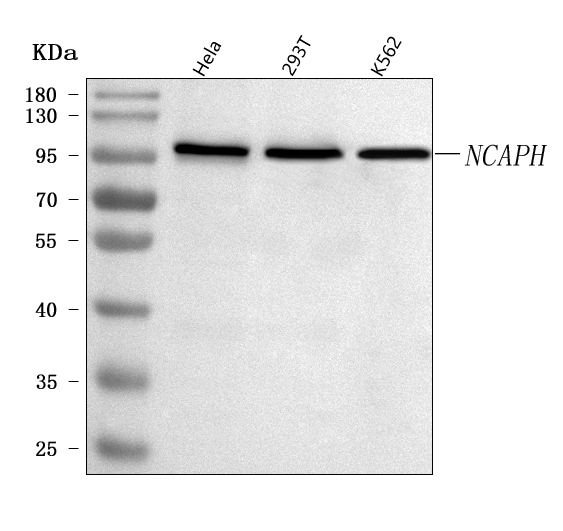

Figure 1. Western blot analysis of NCAPH using anti-NCAPH antibody (A09559-3).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Hela whole cell lysates,
Lane 2: human 293T whole cell lysates,
Lane 3: human K562 whole cell lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-NCAPH antigen affinity purified polyclonal antibody (Catalog # A09559-3) at 0.25 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for NCAPH at approximately 100 kDa. The expected band size for NCAPH is at 83-100 kDa.

Click image to see more details

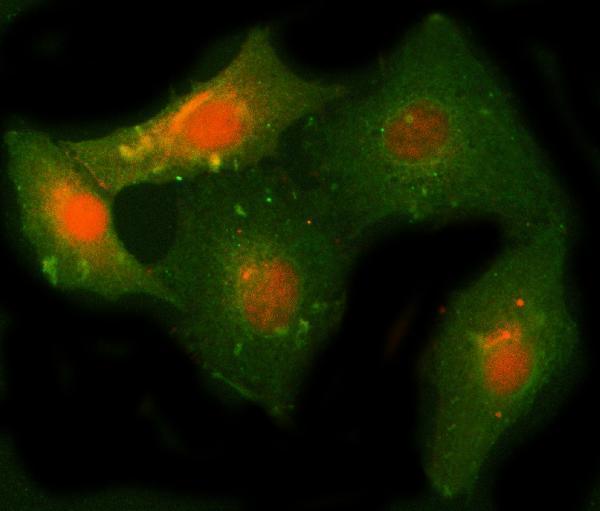

Figure 2. IF analysis of NCAPH using anti-NCAPH antibody (A09559-3) and anti-Beta Tubulin antibody (M01857-3).
NCAPH was detected in immunocytochemical section of A549 cell. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent (AR0022) for 15 mins. The cells were blocked with 10% goat serum. And then incubated with 5 μg/mL rabbit anti-NCAPH Antibody (A09559-3) and mouse anti-Beta Tubulin antibody (M01857-3) overnight at 4°C. Cy3 Conjugated Goat Anti-Rabbit IgG (BA1032) and DyLight®488 Conjugated Goat Anti-Mouse IgG (BA1126) were used as secondary antibody at 1:500 dilution and incubated for 30 minutes at 37°C. Visualize using a fluorescence microscope and filter sets appropriate for the label used.

Click image to see more details

Figure 3. Flow Cytometry analysis of 293T cells using anti-NCAPH antibody (A09559-3).
Overlay histogram showing 293T cells stained with A09559-3 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-NCAPH Antibody (A09559-3, 1 μg/1x10⁶ cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10 μg/1x10⁶ cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1 μg/1x10⁶) used under the same conditions. Unlabelled sample (Red line) was also used as a control.

Gene/Protein Information For NCAPH (Source: Uniprot.org, NCBI)

Alternative Names

barren (Drosophila) homolog; barren homolog (Drosophila); barren homolog 1 (Drosophila); barren homolog 1; Barren homolog protein 1; BRRN; BRRN1CAP-H; CAPH; Chromosome-associated protein H; condensin complex subunit 2; HCAP-H; KIAA0074; Non-SMC condensin I complex subunit H; non-SMC condensin I complex, subunit H; XCAP-H homolog NCAPH BRRN1, CAP-H, CAPH, MCPH23 non-SMC condensin I complex subunit H condensin complex subunit 2|barren homolog 1|chromosome-associated protein H

For more info on NCAPH, check out the NCAPH Infographic

We have 30,000+ of these available, one for each gene! Check them out.

In this infographic, you will see the following information for NCAPH: database IDs, superfamily, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post-translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact [email protected].

Take me to the NCAPH Infographic
