Anti-HIF-2-alpha/EPAS1 Antibody Picoband®

Figure 1. Western blot analysis of HIF2A using anti-HIF2A antibody (PA1129-2).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: rat thymus tissue lysates,
Lane 2: rat testis tissue lysates,
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-HIF2A antigen affinity purified polyclonal antibody (Catalog # PA1129-2) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for HIF2A at approximately 110-120KD. The expected band size for HIF2A is at 96KD.

Figure 2. Western blot analysis of HIF-2A using anti-HIF-2A antibody (PA1129-2).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: human MCF-7 whole cell lysates,
Lane 2: human Hela whole cell lysates,
Lane 3: human Jurkat whole cell lysates,
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-HIF-2A antigen affinity purified polyclonal antibody (Catalog # PA1129-2) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for HIF-2A at approximately 120KD. The expected band size for HIF-2A is at 96KD.

Figure 3. Western blot analysis of HIF-2A using anti-HIF-2A antibody (PA1129-2).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: mouse thymus tissue lysates,
Lane 2: mouse lun tissue lysates,
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-HIF-2A antigen affinity purified polyclonal antibody (Catalog # PA1129-2) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for HIF-2A at approximately 120KD. The expected band size for HIF-2A is at 96KD.

Figure 4. Western blot analysis of HIF-2A using anti-HIF-2A antibody (PA1129-2).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: rat brain tissue lysates,
Lane 2: rat RH35 whole cell lysates,
Lane 3: rat small intestine tissue lysates,
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-HIF-2A antigen affinity purified polyclonal antibody (Catalog # PA1129-2) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for HIF-2A at approximately 120KD. The expected band size for HIF-2A is at 96KD.

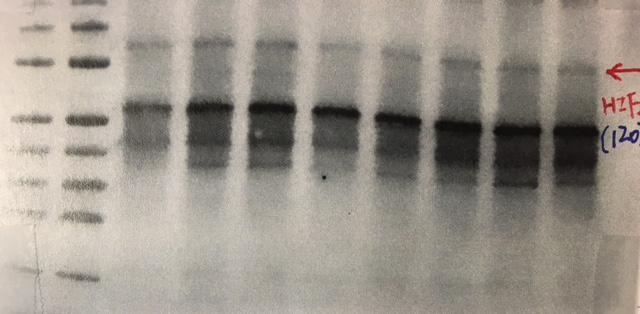

Figure 5. Western blot analysis of EPAS1 using anti-HIF-2-alpha/EPAS1 antibody (PA1129-2).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% milk for 2 hour at RT. The membrane was incubated with rabbit anti-HIF-2-alpha/EPAS1 antibody (PA1129-2) at 1:1000 in 5% milk at 4℃ rotating , then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat-anti-mouse HRP secondary antibody at a dilution of 1:2000 for 2 hour rotating at RT. The signal is developed using a SuperSignal West Femto Maximum Sensitivity Substrate. A specific band was detected for EPAS1 at approximately 120 kDa. The expected band size for EPAS1 is at 120 kDa.
