Product Info Summary
| SKU: | A05704-2 |
|---|---|
| Size: | 100 μg/vial |
| Reactive Species: | Human, Mouse, Rat |
| Host: | Rabbit |
| Application: | ELISA, Flow Cytometry, IF, ICC, WB |
Customers Who Bought This Also Bought
Product info
Product Name
Anti-CPN1 Antibody Picoband®
SKU/Catalog Number
A05704-2
Size
100 μg/vial
Form
Lyophilized
Description
Boster Bio Anti-CPN1 Antibody Picoband® catalog # A05704-2. Tested in ELISA, Flow Cytometry, IF, ICC, WB applications. This antibody reacts with Human, Mouse, Rat. The brand Picoband indicates this is a premium antibody that guarantees superior quality, high affinity, and strong signals with minimal background in Western blot applications. Only our best-performing antibodies are designated as Picoband, ensuring unmatched performance.
Storage & Handling
Store at -20˚C for one year from date of receipt. After reconstitution, at 4˚C for one month. It can also be aliquotted and stored frozen at -20˚C for six months. Avoid repeated freeze-thaw cycles.
Cite This Product
Anti-CPN1 Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # A05704-2)
Host
Rabbit
Contents
Each vial contains 4mg Trehalose, 0.9mg NaCl and 0.2mg Na2HPO4.
Clonality
Polyclonal
Isotype
Rabbit IgG
Immunogen
E.coli-derived human CPN1 recombinant protein (Position: D158-N208).
*Blocking peptide can be purchased. Costs vary based on immunogen length. Contact us for pricing.
Cross-reactivity
No cross-reactivity with other proteins
Reactive Species
A05704-2 is reactive to CPN1 in Human, Mouse, Rat
Reconstitution
Add 0.2ml of distilled water will yield a concentration of 500ug/ml.
Observed Molecular Weight
52 kDa
Calculated molecular weight
101272 MW
Background of CPN1
Carboxypeptidase N catalytic chain is an enzyme that in humans is encoded by the CPN1 gene. Carboxypeptidase N is a plasma metallo-protease that cleaves basic amino acids from the C terminal of peptides and proteins. The enzyme is important in the regulation of peptides like kinins and anaphylatoxins, and has also been known as kininase-1 and anaphylatoxin inactivator. This enzyme is a tetramer comprised of two identical regulatory subunits and two identical catalytic subunits; this gene encodes the catalytic subunit. Mutations in this gene can be associated with angioedema or chronic urticaria resulting from carboxypeptidase N deficiency.
Antibody Validation
Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.
Application & Images
Applications
A05704-2 is guaranteed for ELISA, Flow Cytometry, IF, ICC, WB Boster Guarantee
Assay Dilutions Recommendation
The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.
Western blot, 0.25-0.5μg/ml, Mouse, Rat
Immunocytochemistry/Immunofluorescence, 5μg/ml, Human
Flow Cytometry (Fixed), 1-3μg/1x106 cells, Human
ELISA, 0.1-0.5μg/ml, -
Positive Control
WB: rat liver tissue, mouse liver tissue, rat C6 whole cell, mouse HEPA1-6 whole cell
ICC/IF: CACO-2 cell
FCM: HepG2 cell
Validation Images & Assay Conditions
Click image to see more details

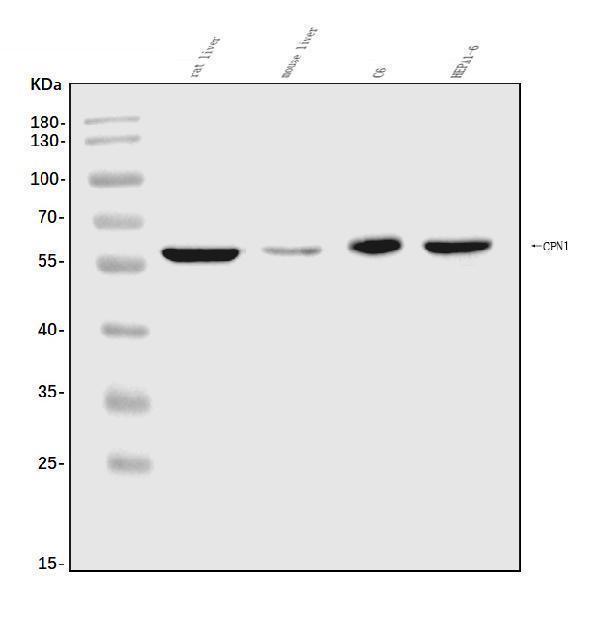

Figure 1. Western blot analysis of CPN1 using anti-CPN1 antibody (A05704-2).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30ug of sample under reducing conditions.
Lane 1: rat liver tissue lysates,
Lane 2: mouse liver tissue lysates,
Lane 3: rat C6 whole cell lysates,
Lane 4: mouse HEPA1-6 whole cell lysates.
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-CPN1 antigen affinity purified polyclonal antibody (Catalog # A05704-2) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for CPN1 at approximately 52KD. The expected band size for CPN1 is at 52KD.
Click image to see more details
Figure 2. IF analysis of CPN1 using anti-CPN1 antibody (A05704-2).
CPN1 was detected in immunocytochemical section of CACO-2 cells. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent (AR0022) for 15 mins. The cells were blocked with 10% goat serum. And then incubated with 5μg/mL rabbit anti-CPN1 Antibody (A05704-2) overnight at 4°C. DyLight®488 Conjugated Goat Anti-Rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.
Click image to see more details

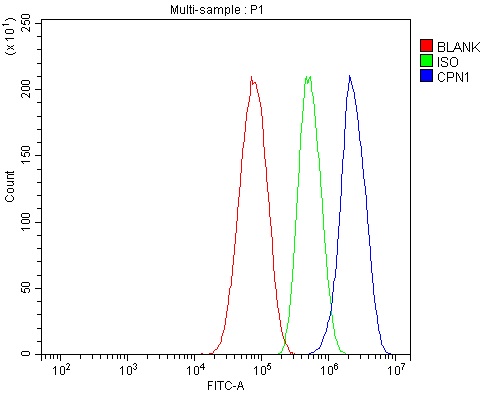

Figure 3. Flow Cytometry analysis of HepG2 cells using anti-CPN1 antibody (A05704-2).
Overlay histogram showing HepG2 cells stained with A05704-2 (Blue line). The cells were fixed with 4% paraformaldehyde and blocked with 10% normal goat serum. And then incubated with rabbit anti-CPN1 Antibody (A05704-2, 1μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x106) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Protein Target Info & Infographic
Gene/Protein Information For CPN1 (Source: Uniprot.org, NCBI)
Gene Name
CPN1
Full Name
Carboxypeptidase N catalytic chain
Weight
101272 MW
Superfamily
peptidase M14 family
Alternative Names
N-alpha-acetyltransferase 15, NatA auxiliary subunit;Gastric cancer antigen Ga19;N-terminal acetyltransferase;NMDA receptor-regulated protein 1;Protein tubedown-1;Tbdn100;NAA15;GA19, NARG1, NATH, TBDN100; CPN1 CPN, SCPN carboxypeptidase N subunit 1 carboxypeptidase N catalytic chain|anaphylatoxin inactivator|arginine carboxypeptidase|carboxypeptidase K|carboxypeptidase N catalytic subunit|carboxypeptidase N polypeptide 1 50 kD|carboxypeptidase N small subunit|carboxypeptidase N, polypeptide 1|kininase I|kininase-1|lysine carboxypeptidase|plasma carboxypeptidase B|serum carboxypeptidase N
*If product is indicated to react with multiple species, protein info is based on the gene entry specified above in "Species".For more info on CPN1, check out the CPN1 Infographic
We have 30,000+ of these available, one for each gene! Check them out.
In this infographic, you will see the following information for CPN1: database IDs, superfamily, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post-translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact [email protected].
