Product Info Summary
| SKU: | M00158-1 |
|---|---|
| Size: | 100 μg/vial |
| Reactive Species: | Human |
| Host: | Mouse |
| Application: | Flow Cytometry, IF, IHC, ICC, WB |
Customers Who Bought This Also Bought
Product info
Product Name
Anti-CCR2 Antibody Picoband® (monoclonal, 8C4)
SKU/Catalog Number
M00158-1
Size
100 μg/vial
Form
Lyophilized
Description
Boster Bio Anti-CCR2 Antibody Picoband® (monoclonal, 8C4) catalog # M00158-1. Tested in Flow Cytometry, IF, IHC, ICC, WB applications. This antibody reacts with Human. The brand Picoband indicates this is a premium antibody that guarantees superior quality, high affinity, and strong signals with minimal background in Western blot applications. Only our best-performing antibodies are designated as Picoband, ensuring unmatched performance.
Storage & Handling
Store at -20˚C for one year from date of receipt. After reconstitution, at 4˚C for one month. It can also be aliquotted and stored frozen at -20˚C for six months. Avoid repeated freeze-thaw cycles.
Cite This Product
Anti-CCR2 Antibody Picoband® (monoclonal, 8C4) (Boster Biological Technology, Pleasanton CA, USA, Catalog # M00158-1)
Host
Mouse
Contents
Each vial contains 4mg Trehalose, 0.9mg NaCl, 0.2mg Na2HPO4, 0.05mg NaN3.
Clonality
Monoclonal
Clone Number
8C4
Isotype
Mouse IgG2b
Immunogen
E.coli-derived human CCR2 recombinant protein (Position: M1-F125).
*Blocking peptide can be purchased. Costs vary based on immunogen length. Contact us for pricing.
Cross-reactivity
No cross-reactivity with other proteins.
Reactive Species
M00158-1 is reactive to CCR2 in Human
Reconstitution
Add 0.2ml of distilled water will yield a concentration of 500ug/ml.
Observed Molecular Weight
42 kDa
Calculated molecular weight
46659 MW
Background of Ccr2
C-C chemokine receptor type 2 (CCR2 or CD192 (cluster of differentiation 192) is a protein that in humans is encoded by the CCR2 gene. It is mapped to 3p21.31. The protein encoded by this gene is a receptor for monocyte chemoattractant protein-1, a chemokine which specifically mediates monocyte chemotaxis. Monocyte chemoattractant protein-1 is involved in monocyte infiltration in inflammatory diseases such as rheumatoid arthritis as well as in the inflammatory response against tumors. The encoded protein mediates agonist-dependent calcium mobilization and inhibition of adenylyl cyclase. This protein can also be a coreceptor with CD4 for HIV-1 infection.
Antibody Validation
Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.
Application & Images
Applications
M00158-1 is guaranteed for Flow Cytometry, IF, IHC, ICC, WB Boster Guarantee
Assay Dilutions Recommendation
The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.
Western blot, 0.1-0.5μg/ml, Human
Immunohistochemistry (Paraffin-embedded Section), 0.5-1μg/ml, Human
Immunocytochemistry/Immunofluorescence, 2μg/ml, Human
Flow Cytometry (Fixed), 1-3μg/1x106 cells, Human
Positive Control
WB: human THP-1 whole cell,, human K562 whole cell,, human Jurkat whole cell
IHC: human liver cancer tissue, human tonsil tissue
ICC/IF: HepG2 cell
FCM: THP-1 cell
Validation Images & Assay Conditions
Click image to see more details

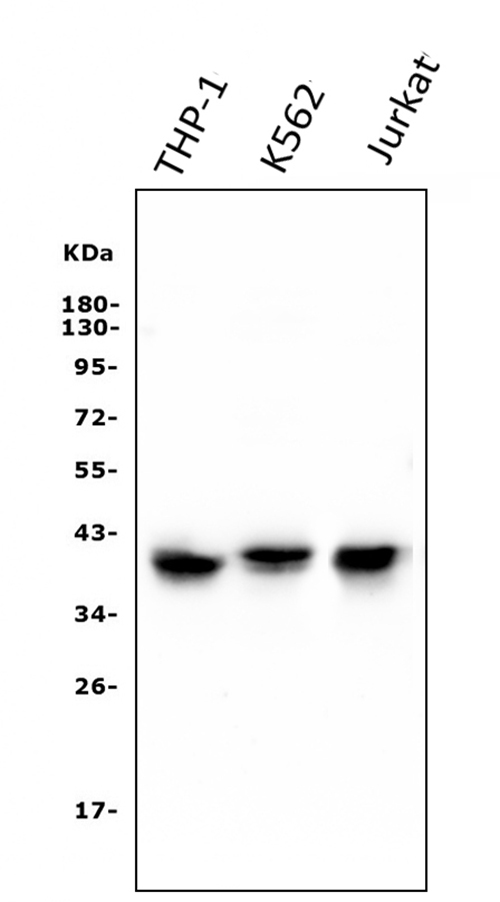

Figure 1. Western blot analysis of CCR2 using anti-CCR2 antibody (M00158-1).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: human THP-1 whole cell lysates;
Lane 2: human K562 whole cell lysates;
Lane 3: human Jurkat whole cell lysates.
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with mouse anti-CCR2 antigen affinity purified monoclonal antibody (Catalog # M00158-1) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-mouse IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1001) with Tanon 5200 system. A specific band was detected for CCR2 at approximately 42KD. The expected band size for CCR2 is at 42KD.
Click image to see more details
Figure 2. IHC analysis of CCR2 using anti-CCR2 antibody (M00158-1).
CCR2 was detected in paraffin-embedded section of human liver cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1μg/ml mouse anti-CCR2 Antibody (M00158-1) overnight at 4°C. Biotinylated goat anti-mouse IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB as the chromogen.
Click image to see more details
Figure 3. IHC analysis of CCR2 using anti-CCR2 antibody (M00158-1).
CCR2 was detected in paraffin-embedded section of human tonsil tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1μg/ml mouse anti-CCR2 Antibody (M00158-1) overnight at 4°C. Biotinylated goat anti-mouse IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB as the chromogen.
Click image to see more details
Figure 4. IF analysis of CCR2 using anti-CCR2 antibody (M00158-1).
CCR2 was detected in immunocytochemical section of HepG2 cells. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent (AR0022) for 15 mins. The cells were blocked with 10% goat serum. And then incubated with 2μg/mL mouse anti-CCR2 Antibody (M00158-1) overnight at 4°C. DyLight®488 Conjugated Goat Anti-Mouse IgG (BA1126) was used as secondary antibody at 1:100 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.
Click image to see more details

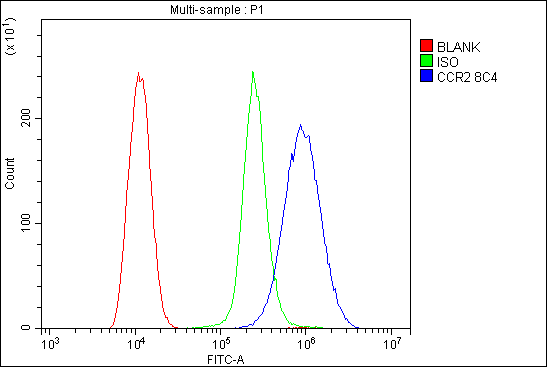

Figure 5. Flow Cytometry analysis of THP-1 cells using anti- CCR2 antibody (M00158-1).
Overlay histogram showing THP-1 cells stained with M00158-1 (Blue line). The cells were fixed with 4% paraformaldehyde and blocked with 10% normal goat serum. And then incubated with mouse anti- CCR2 Antibody (M00158-1, 1μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-mouse IgG (BA1126, 5-10μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was mouse IgG (1μg/1x106) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Protein Target Info & Infographic
Gene/Protein Information For CCR2 (Source: Uniprot.org, NCBI)
Gene Name
CCR2
Full Name
C-C chemokine receptor type 2
Weight
46659 MW
Superfamily
G-protein coupled receptor 1 family
Alternative Names
C-C chemokine receptor type 2; C-C CKR-2; CC-CKR-2; CCR-2; CCR2; Monocyte chemoattractant protein 1 receptor; MCP-1-R; CD192; CCR2; CMKBR2 Ccr2|CC-CKR-, CCR, CKR, Cc-ckr-2a, Ccr2b, Ckr2, Ckr2a, Ckr2b, Cmkbr, Cmkbr2, mJe-r, Ccr2|chemokine (C-C motif) receptor 2|C-C chemokine receptor type 2|C-C CHEMOKINE RECEPTOR TYPE 2 (C-C CKR-2) (CC-CKR-2) (CCR-2) (CCR2) (JE/FIC RECEPTOR) (MCP-1 RECEPTOR)|C-C CKR-2|CCR-2|JE/FIC receptor|MCP-1 receptor|MIP-1 alphaR|chemoattractant protein-1 receptor|chemokine (C-C) receptor 2
*If product is indicated to react with multiple species, protein info is based on the gene entry specified above in "Species".For more info on CCR2, check out the CCR2 Infographic
We have 30,000+ of these available, one for each gene! Check them out.
In this infographic, you will see the following information for CCR2: database IDs, superfamily, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post-translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact [email protected].
