Anti-BCMA/Tnfrsf17 Antibody Picoband®

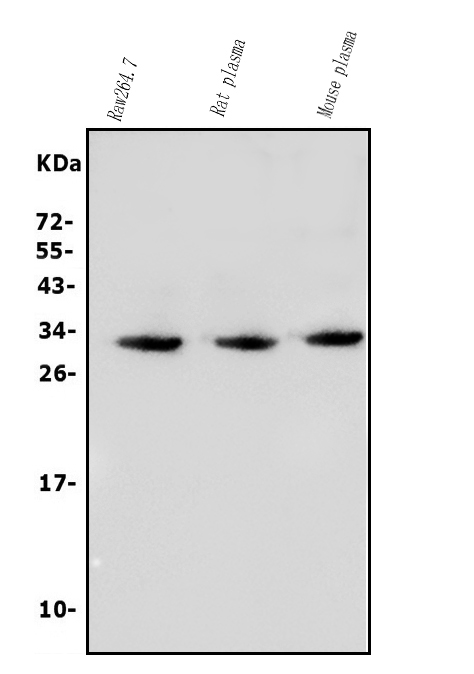

Figure 1. Western blot analysis of BCMA/Tnfrsf17 using anti-BCMA/Tnfrsf17 antibody (A01014-4).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: mouse Raw264.7 whole cell lysates,
Lane 2: rat plasma lysates,
Lane 3: mouse plasma lysates.
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-BCMA/Tnfrsf17 antigen affinity purified polyclonal antibody (Catalog # A01014-4) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for BCMA/Tnfrsf17 at approximately 30KD. The expected band size for BCMA/Tnfrsf17 is at 30KD.

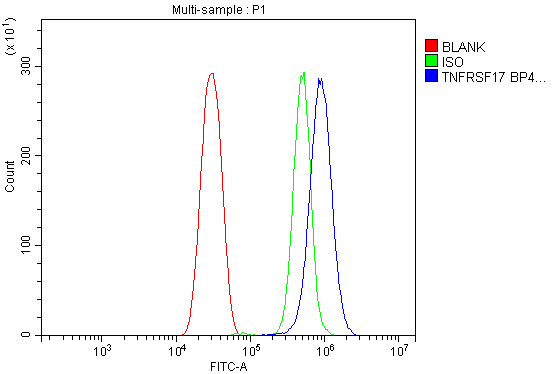

Figure 2. Flow Cytometry analysis of Hepa1-6 cells using anti-BCMA/Tnfrsf17 antibody (A01014-4).
Overlay histogram showing Hepa1-6 cells stained with A01014-4 (Blue line). The cells were fixed with 4% paraformaldehyde and blocked with 10% normal goat serum. And then incubated with rabbit anti-BCMA/Tnfrsf17 Antibody (A01014-4, 1μg/1x10⁶ cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10μg/1x10⁶ cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x10⁶) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.

Figure 3. Flow Cytometry analysis of Raw264.7 cells using anti-BCMA/Tnfrsf17 antibody (A01014-4).
Overlay histogram showing Raw264.7 cells stained with A01014-4 (Blue line). The cells were fixed with 4% paraformaldehyde and blocked with 10% normal goat serum. And then incubated with rabbit anti-BCMA/Tnfrsf17 Antibody (A01014-4, 1μg/1x10⁶ cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10μg/1x10⁶ cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x10⁶) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.

Figure 4. IHC analysis of BCMA/Tnfrsf17 using anti-BCMA/Tnfrsf17 antibody (A01014-4).
BCMA/Tnfrsf17 was detected in paraffin-embedded section of mouse spleen tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2μg/ml rabbit anti-BCMA/Tnfrsf17 Antibody (A01014-4) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.

Figure 5. IHC analysis of BCMA/Tnfrsf17 using anti-BCMA/Tnfrsf17 antibody (A01014-4).
BCMA/Tnfrsf17 was detected in paraffin-embedded section of rat spleen tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2μg/ml rabbit anti-BCMA/Tnfrsf17 Antibody (A01014-4) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
