Product Info Summary
| SKU: | FEK0540 |
|---|---|
| Size: | 96 wells/kit, with removable strips. |
| Reactive Species: | Rat |
| Application: | ELISA |
| Sample Types: | cell culture supernatants, serum and plasma (heparin, EDTA, citrate) |
| Assay Time: | 90 Minutes |
Customers Who Bought This Also Bought
How Quick Picokine(R) ELISA kits work: Get data in 90 minutes
Product info
Product Name
Rat VEGF PicoKine® Quick ELISA Kit
SKU/Catalog Number
FEK0540
Size
96 wells/kit, with removable strips.
*Question: How many samples can I assay/run in this kit?
Description
Rat VEGF PicoKine® Quick ELISA Kit (90 minutes, 96 Tests). Quantitate Rat VEGF in cell culture supernatants, serum and plasma (heparin, EDTA, citrate). Sensitivity: 1 pg/ml. The brand Picokine indicates this is a premium quality ELISA kit. Each Picokine kit delivers precise quantification, high sensitivity, and excellent reproducibility. Only our most reliable and effective kits qualify as Picokine, guaranteeing top-tier results for your assays.
Storage & Handling
Store at 4°C for 6 months. (Ships with gel ice, can store for up to 3 days in room temperature. Refrigerate upon receipt.)
Cite This Product
Rat VEGF PicoKine® Quick ELISA Kit (Boster Biological Technology, Pleasanton CA, USA, Catalog # FEK0540)
Clonality of Antibodies
See Datasheet for details
Standard Protein
Expression system for standard: NS0; Immunogen sequence: A27-R190
Sensitivity
<1 pg/ml
Assay Range
15.6 pg/ml - 1,000 pg/ml
Standard Dilution Instructions
See datasheet of FEK0540 for more details
Cross Reactivity
There is no detectable cross-reactivity with other relevant proteins.
Reactive Species
FEK0540 is reactive to Vegfa in Rat samples
Validated Sample Types
cell culture supernatants, serum and plasma (heparin, EDTA, citrate)
Application Guarantee
FEK0540 is guaranteed for ELISA in Rat by Boster Guarantee
See how Boster Bio validate our ELISA kits: ELISA Validation Information
Background of VEGFA
Vascular permeability factor/vascular endothelial growth factor(VPF/VEGF), a potent cytokine expressed by most malignant tumors, has critical roles in vasculogenesis and both physiological and pathological angiogenesis. VEGF produced by tumor cells potently stimulates endothelial cell proliferation and angiogenesis and plays a key role in the pathophysiology of several neoplasias. VEGF may also play a pivotal role in mediating the development and progression of diabetic retinopathy. VEGF, a major regulator of angiogenesis, binds to two receptor tyrosine kinases, KDR/Flk-1 and Flt-1. The VEGF gene is mapped by fluorescence in situ hybridization to chromosome 6p12.The standard product used in this kit is recombinant rat VEGF164, which is a 25KDa single chain as well as a 50KDa dimer.
Kit Components
| Catalog number | Description | Quantity | Volume |
|---|---|---|---|
| FEK0540-CAP | Anti-tag Pre-coated 96-well Strip Microplate | 1 | 12 strips of 8 wells |
| EK0540-ST | Rat VEGFA Standard | 2 | 10 ng/tube |
| FEK0540-A | Rat Vegfa Antibody A | 1 | 3ml |
| FEK0540-B | Rat Vegfa Antibody B | 1 | 3ml |
| AR1106-1 | Sample Diluent | 1 | 15ml |
| AR1106-7 | TBS-T Wash Buffer (25x) | 1 | 12ml |
| AR1104 | Color Developing Reagent (TMB) | 1 | 10ml |
| AR1105 | Stop Solution | 1 | 10ml |
| PLA-SEA | Adhesive Plate Sealers | 2 | Piece |
*The kit components are not available for individual purchase.
Materials Required But Not Included In Kit
- Microplate Reader capable of reading absorbance at 450nm.
- Automated plate washer (optional)
- Pipettes and pipette tips capable of precisely dispensing 0.5 µl through 1 ml volumes of aqueous solutions.
- Multichannel pipettes are recommended for large amount of samples.
- Deionized or distilled water.
- 500ml graduated cylinders.
- Test tubes for dilution.
- Horizontal orbital microplate shaker capable of maintaining a speed of 500 rpm, amplitude 3mm.
Data Examples, Quality Control Data
Validation Standard Curve O.D. At 450nm
| Concentration(pg/ml) | 0 | 15.6 | 31.2 | 62.5 | 125 | 250 | 500 | 1,000 |
| O.D. | 0.043 | 0.108 | 0.159 | 0.260 | 0.443 | 0.795 | 1.396 | 2.276 |
Data Example Images
Click image to see more details

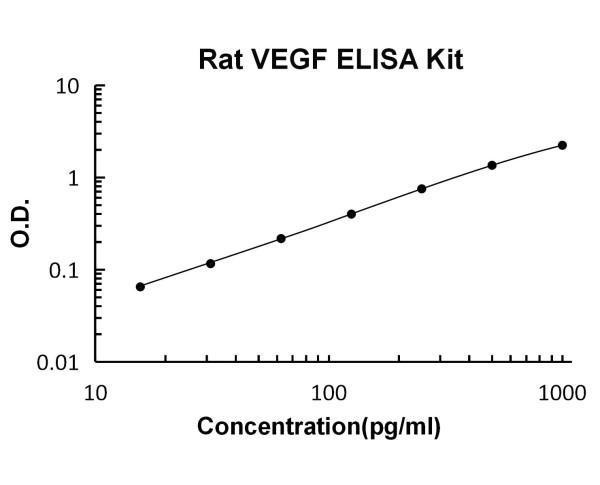

Rat VEGF PicoKine ELISA Kit standard curve
Intra Assay Consistency & Inter Assay Consistency
We measured random samples of Rat VEGF PicoKine® Quick ELISA Kit within the same batch/lot to ensure the consistency of the kits' performances. ELISA intra assay consistency is measured using wells from the same plate/assay kit. ELISA inter assay consistency is measured using wells from different plates from the same batch production/lot.
| Intra-Assay Precision | Inter-Assay Precision | |||||
|---|---|---|---|---|---|---|
| Sample | 1 | 2 | 3 | 1 | 2 | 3 |
| n | 16 | 16 | 16 | 24 | 24 | 24 |
| Mean (pg/ml) | 25 | 233 | 364 | 36 | 241 | 398 |
| Standard deviation | 1.4 | 18.87 | 22.93 | 2.45 | 19.04 | 21.89 |
| CV (%) | 5.6% | 8.1% | 6.3% | 6.8% | 7.9% | 5.5% |
Reproducibility
We ensure reproducibility by testing three samples with differing concentrations of VEGFA in ELISA kits from four different production batches/lots.
Reproducibility
To assay reproducibility, three samples with differing target protein concentrations were assayed using four different lots.
| Lots | Lot 1 (pg/ml) | Lot 2 (pg/ml) | Lot 3 (pg/ml) | Lot 4 (pg/ml) | Mean (pg/ml) | Standard Deviation | CV (%) |
|---|---|---|---|---|---|---|---|
| Sample 1 | 25 | 29 | 30 | 31 | 29 | 1.24 | 4.3% |
| Sample 2 | 233 | 265 | 241 | 247 | 247 | 16.27 | 6.6% |
| Sample 3 | 364 | 388 | 403 | 412 | 392 | 18.41 | 4.7% |
Protein Target Info & Infographic
Gene/Protein Information For Vegfa (Source: Uniprot.Org, NCBI)
Gene Name
Vegfa
Full Name
Vascular endothelial growth factor A
Weight
27.042kDa
Superfamily
PDGF/VEGF growth factor family
Alternative Names
MVCD1; VAS; vascular endothelial growth factor A; Vascular permeability factor; Vasculotropin; VEGF; VEGFA; VEGF-A; VEGFMGC70609; VPF; VPFvascular endothelial growth factor VEGFA MVCD1, VEGF, VPF vascular endothelial growth factor A vascular endothelial growth factor A|vascular endothelial growth factor A121|vascular endothelial growth factor A165|vascular permeability factor
*if product is indicated to react with multiple species, protein info is based on the gene entry specified above in "species".For more info on Vegfa, check out the Vegfa Infographic
We have 30,000+ of these available, one for each gene! check them out.
In this infographic you will see the following information for Vegfa: database IDs, super-family, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact us [email protected].
