Product Info Summary
| SKU: | EK1953 |
|---|---|
| Size: | 96 wells/kit, with removable strips. |
| Reactive Species: | Human |
| Application: | ELISA |
| Sample Types: | cell culture supernatants, serum and plasma (heparin, EDTA). |
Product info
Product Name
Human CHRDL1 ELISA Kit PicoKine®
View all Chordin-like 1/CHRDL1 ELISA kits
SKU/Catalog Number
EK1953
Size
96 wells/kit, with removable strips.
*Question: How many samples can I assay/run in this kit?
Description
Human CHRDL1 ELISA Kit PicoKine® (96 Tests). Quantitate Human CHRDL1 in cell culture supernatants, serum and plasma (heparin, EDTA). Sensitivity: 50pg/ml. The brand Picokine indicates this is a premium quality ELISA kit. Each Picokine kit delivers precise quantification, high sensitivity, and excellent reproducibility. Only our most reliable and effective kits qualify as Picokine, guaranteeing top-tier results for your assays.
Storage & Handling
Store at 4°C for 6 months, at -20°C for 12 months. Avoid multiple freeze-thaw cycles (Ships with gel ice, can store for up to 3 days in room temperature. Freeze upon receiving.)
Cite This Product
Human CHRDL1 ELISA Kit PicoKine® (Boster Biological Technology, Pleasanton CA, USA, Catalog # EK1953)
Clonality of Antibodies
See Datasheet for details
Standard Protein
Expression system for standard: NS0; Immunogen sequence: E22-C450
Sensitivity
<50 pg/ml
Assay Range
93.6 pg/ml - 6,000 pg/ml
Standard Dilution Instructions
See datasheet of EK1953 for more details
Cross-reactivity
There is no detectable cross-reactivity with other relevant proteins.
Reactive Species
EK1953 is reactive to CHRDL1 in Human samples
Validated Sample Types
cell culture supernatants, serum and plasma (heparin, EDTA).
Application Guarantee
EK1953 is guaranteed for ELISA in Human by Boster Guarantee
See how Boster Bio validate our ELISA kits: ELISA Validation Information
Background of Chordin-like 1/CHRDL1
Chordin-like 1 is a protein that in humans is encoded by the CHRDL1 gene. It is mapped to Xq23. This gene encodes an antagonist of bone morphogenetic protein 4. The encoded protein may play a role in topographic retinotectal projection and in the regulation of retinal angiogenesis in response to hypoxia. Alternatively spliced transcript variants encoding different isoforms have been described.
Kit Components
| Catalog Number | Description | Quantity |
|---|---|---|
| EK1953-CAP | Anti-Human CHRDL1 Pre-coated 96-well strip microplate | 1 |
| EK1953-ST | Human CHRDL1 Standard | 2 vials, 10 ng/tube |
| EK1953-DA | Human CHRDL1 Biotinylated antibody (100x) | 100ul |
| AR1103 | Avidin-Biotin-Peroxidase Complex (100x) | 100ul |
| AR1106-1 | Sample Diluent | 30ml |
| AR1106-2 | Antibody Diluent | 12ml |
| AR1106-3 | Avidin-Biotin-Peroxidase Diluent | 12ml |
| AR1104 | Color Developing Reagent (TMB) | 10ml |
| AR1105 | Stop Solution | 10ml |
| AR1106-5 | Wash Buffer (25x) | 20ml |
| PLA-SEA | Adhesive plate sealers | 4 |
*The kit components are not available for individual purchase.
Materials Required But Not Included In Kit
- Microplate Reader capable of reading absorbance at 450nm.
- Incubator.
- Automated plate washer (optional).
- Pipettes and pipette tips capable of precisely dispensing 0.5 µl through 1 ml volumes of aqueous solutions.
- Multichannel pipettes are recommended for large amount of samples.
- Deionized or distilled water.
- 500ml graduated cylinders.
- Test tubes for dilution.
Data Examples, Quality Control Data & Sample Dilution

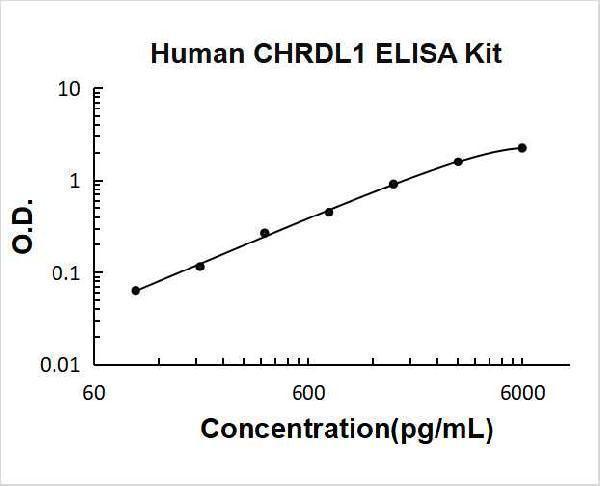

Validation Standard Curve O.D. At 450nm
| Concentration (pg/ml) | 0 | 93.7 | 187.5 | 375 | 750 | 1500 | 3000 | 6000 |
| O.D. | 0.088 | 0.134 | 0.176 | 0.265 | 0.402 | 0.702 | 1.263 | 2.099 |
Data Example Images
Click image to see more details
Human CHRDL1 PicoKine ELISA Kitstandard curve
Recommended Sample Dilution Ratios
According to our internal validation assays using this ELISA kit, to detect Chordin-like 1/CHRDL1, Dilution ratio of 1:1, concentration in serum and plasma is around 600 pg/ml..
Intra Assay Consistency & Inter Assay Consistency
We measured random samples of Human CHRDL1 ELISA Kit PicoKine® within the same batch/lot to ensure the consistency of the kits' performances. ELISA intra assay consistency is measured using wells from the same plate/assay kit. ELISA inter assay consistency is measured using wells from different plates from the same batch production/lot.
| Intra-Assay Precision | Inter-Assay Precision | |||||
|---|---|---|---|---|---|---|
| Sample | 1 | 2 | 3 | 1 | 2 | 3 |
| n | 16 | 16 | 16 | 24 | 24 | 24 |
| Mean (pg/ml) | 146 | 511 | 1796 | 201 | 618 | 2851 |
| Standard deviation | 7.59 | 27.08 | 100.58 | 13.07 | 41.41 | 196.72 |
| CV (%) | 5.2% | 5.3% | 5.6% | 6.5% | 6.7% | 6.9% |
Reproducibility
We ensure reproducibility by testing three samples with differing concentrations of Chordin-like 1/CHRDL1 in ELISA kits from four different production batches/lots.
| Lots | Lot 1 (pg/ml) | Lot 2 (pg/ml) | Lot 3 (pg/ml) | Lot 4 (pg/ml) | Mean (pg/ml) | Standard Deviation | CV (%) |
|---|---|---|---|---|---|---|---|
| Sample 1 | 146 | 138 | 126 | 133 | 135 | 7.29 | 5.4% |
| Sample 2 | 511 | 424 | 442 | 453 | 457 | 32.57 | 7.1% |
| Sample 3 | 1796 | 1945 | 1901 | 2041 | 1920 | 88.03 | 4.5% |
Protein Target Info & Infographic
Gene/Protein Information For CHRDL1 (Source: Uniprot.Org, NCBI)
Gene Name
CHRDL1
Full Name
Chordin-like protein 1
Weight
50.732kDa
Alternative Names
Chordin-like protein 1; Neuralin-1; Neurogenesin-1; Ventroptin; CHRDL1; NRLN1 Chrdl1|CHL, CHL1, N, Nrln1, V, VOPT|chordin-like 1|chordin-like protein 1|neuralin-1|neurogenesin-1|ventroptin-alpha|ventroptin-beta
*if product is indicated to react with multiple species, protein info is based on the gene entry specified above in "species".For more info on CHRDL1, check out the CHRDL1 Infographic
We have 30,000+ of these available, one for each gene! check them out.
In this infographic you will see the following information for CHRDL1: database IDs, super-family, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact us [email protected].
