Anti-USP16 Antibody Picoband®

Sample Type :Human brain stem cells (NT2) Primary Antibody Dilution : 1:500Secondary Antibody :Goat anti-rabbit Alexa Fluor 594Secondary Antibody Dilution : 1:1000Color/Signal Descriptions :Red: USP16 Blue: DAPIGene Name :USP16Submitted by :Dr. Yuzhi Chen, University of Arkansas for Medical Science

WB Suggested Anti-USP16 Antibody Titration: 2.5ug/mlPositive Control: HepG2 cell lysate

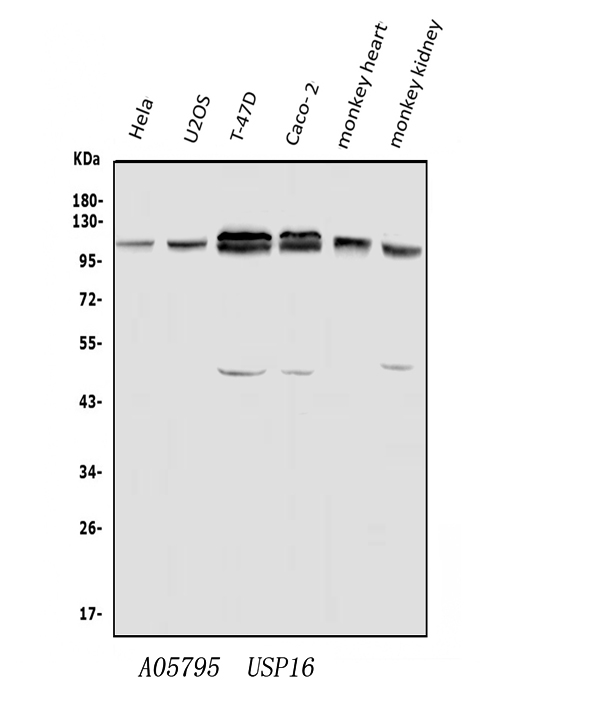

Figure 1. Western blot analysis of USP16 using anti-USP16 antibody (A05795).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: human Hela whole cell lysates,
Lane 2: human U20S whole cell lysates,
Lane 3: human T-47D whole cell lysates,
Lane 4: human CACO-2 whole cell lysates,
Lane 5: monkey heart tissue lysates,
Lane 6: monkey kidney tissue lysates.
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-USP16 antigen affinity purified polyclonal antibody (Catalog # A05795) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for USP16 at approximately 100KD. The expected band size for USP16 is at 100KD.

Figure 2. IHC analysis of USP16 using anti-USP16 antibody (A05795).
USP16 was detected in paraffin-embedded section of human lung cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1μg/ml rabbit anti-USP16 Antibody (A05795) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.

Figure 3. IHC analysis of USP16 using anti-USP16 antibody (A05795).
USP16 was detected in paraffin-embedded section of rat intestine tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1μg/ml rabbit anti-USP16 Antibody (A05795) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.

Figure 4. IF analysis of USP16 using anti-USP16 antibody (A05795).
USP16 was detected in immunocytochemical section of Hela cells. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent (AR0022) for 15 mins. The cells were blocked with 10% goat serum. And then incubated with 2μg/mL rabbit anti-USP16 Antibody (A05795) overnight at 4°C. DyLight®488 Conjugated Goat Anti-Rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.

Figure 5. Flow Cytometry analysis of A431 cells using anti-USP16 antibody (A05795).
Overlay histogram showing A431 cells stained with A05795 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-USP16 Antibody (A05795,1μg/1x10⁶ cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10μg/1x10⁶ cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x10⁶) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
