Anti-Presenilin 2/AD5/PSEN2 Antibody Picoband®

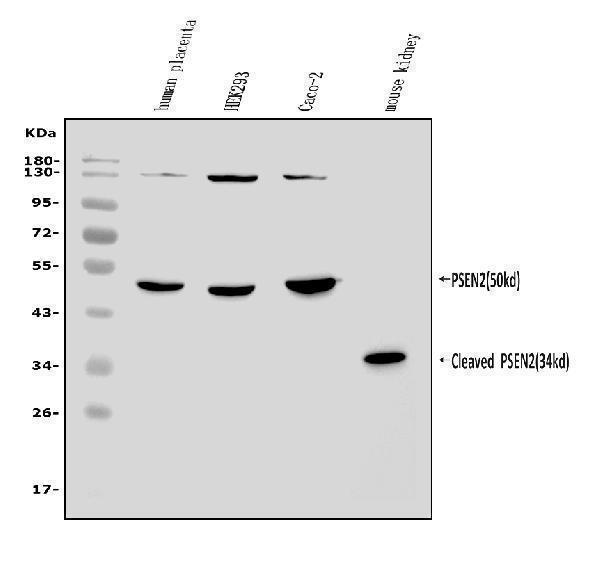

Figure 1. Western blot analysis of Presenilin 2/AD5/PSEN2 using anti-Presenilin 2/AD5/PSEN2 antibody (A00800).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: human placenta tissue lysates,
Lane 2: human HEK293 whole cell lysates,
Lane 3: human CACO-2 whole cell lysates,
Lane 4: mouse kidney tissue lysates.
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-Presenilin 2/AD5/PSEN2 antigen affinity purified polyclonal antibody (Catalog # A00800) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for Presenilin 2/AD5/PSEN2 at approximately 34KD,50KD. The expected band size for Presenilin 2/AD5/PSEN2 is at 50KD.

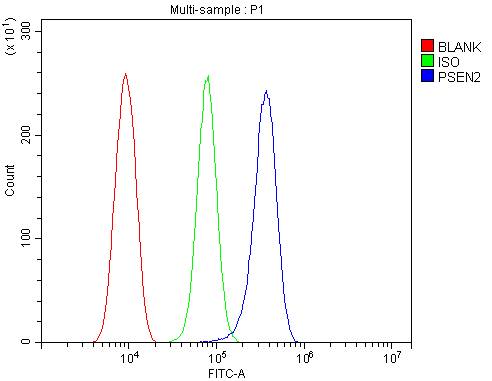

Figure 2. Flow Cytometry analysis of HEPA1-6 cells using anti-Presenilin 2/AD5/PSEN2 antibody (A00800).
Overlay histogram showing HEPA1-6 cells stained with A00800 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-Presenilin 2/AD5/PSEN2 Antibody (A00800, 1μg/1x10⁶ cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10μg/1x10⁶ cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x10⁶) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.

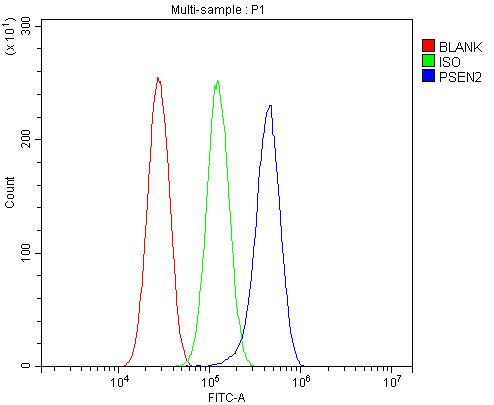

Figure 3. Flow Cytometry analysis of RH-35 cells using anti-Presenilin 2/AD5/PSEN2 antibody (A00800).
Overlay histogram showing RH-35 cells stained with A00800 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-Presenilin 2/AD5/PSEN2 Antibody (A00800, 1μg/1x10⁶ cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10μg/1x10⁶ cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x10⁶) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.

Figure 4. Flow Cytometry analysis of U87 cells using anti-Presenilin 2/AD5/PSEN2 antibody (A00800).
Overlay histogram showing U87 cells stained with A00800 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-Presenilin 2/AD5/PSEN2 Antibody (A00800, 1μg/1x10⁶ cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10μg/1x10⁶ cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x10⁶) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.

Figure 5. IF analysis of Presenilin 2/AD5/PSEN2 using anti-Presenilin 2/AD5/PSEN2 antibody (A00800).
Presenilin 2/AD5/PSEN2 was detected in immunocytochemical section of MCF-7 cells. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent (AR0022) for 15 mins. The cells were blocked with 10% goat serum. And then incubated with 5μg/mL rabbit anti-Presenilin 2/AD5/PSEN2 Antibody (A00800) overnight at 4°C. DyLight®594 Conjugated Goat Anti-Rabbit IgG (BA1142) was used as secondary antibody at 1:100 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.

Figure 6. IHC analysis of Presenilin 2/AD5/PSEN2 using anti-Presenilin 2/AD5/PSEN2 antibody (A00800).
Presenilin 2/AD5/PSEN2 was detected in paraffin-embedded section of human skeletal muscle tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2μg/ml rabbit anti-Presenilin 2/AD5/PSEN2 Antibody (A00800) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
