Product Info Summary
| SKU: | A08794 |
|---|---|
| Size: | 100 μg/vial |
| Reactive Species: | Human |
| Host: | Rabbit |
| Application: | ELISA, Flow Cytometry, IF, IHC, ICC, WB |
Customers Who Bought This Also Bought
Product info
Product Name
Anti-PPM1E Picoband® Antibody
SKU/Catalog Number
A08794
Size
100 μg/vial
Form
Lyophilized
Description
Boster Bio Anti-PPM1E Picoband® Antibody catalog # A08794. Tested in ELISA, Flow Cytometry, IF, IHC, ICC, WB applications. This antibody reacts with Human. The brand Picoband indicates this is a premium antibody that guarantees superior quality, high affinity, and strong signals with minimal background in Western blot applications. Only our best-performing antibodies are designated as Picoband, ensuring unmatched performance.
Storage & Handling
Store at -20˚C for one year from date of receipt. After reconstitution, at 4˚C for one month. It can also be aliquotted and stored frozen at -20˚C for six months. Avoid repeated freeze-thaw cycles.
Cite This Product
Anti-PPM1E Picoband® Antibody (Boster Biological Technology, Pleasanton CA, USA, Catalog # A08794)
Host
Rabbit
Contents
Each vial contains 4mg Trehalose, 0.9mg NaCl, 0.2mg Na2HPO4, 0.05mg NaN3.
Clonality
Polyclonal
Isotype
Rabbit IgG
Immunogen
E.coli-derived human PPM1E recombinant protein (Position: E141-E755).
*Blocking peptide can be purchased. Costs vary based on immunogen length. Contact us for pricing.
Cross-reactivity
No cross-reactivity with other proteins.
Reactive Species
A08794 is reactive to PPM1E in Human
Reconstitution
Add 0.2ml of distilled water will yield a concentration of 500ug/ml.
Observed Molecular Weight
84 kDa
Calculated molecular weight
83.952kDa
Background of PPM1E
protein phosphatase, Mg2+/Mn2+ dependent 1E is a protein that in humans is encoded by the PPM1E gene. It is mapped to 17q22. This gene encodes a member of the PPM family of serine/threonine-protein phosphatases. The encoded protein is localized to the nucleus and dephosphorylates and inactivates multiple substrates including serine/threonine-protein kinase PAK 1, 5'-AMP-activated protein kinase (AMPK) and the multifunctional calcium/calmodulin-dependent protein kinases. Alternatively spliced transcript variants have been observed for this gene.
Antibody Validation
Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.
Application & Images
Applications
A08794 is guaranteed for ELISA, Flow Cytometry, IF, IHC, ICC, WB Boster Guarantee
Assay Dilutions Recommendation
The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.
Western blot, 0.1-0.25μg/ml, Human
Immunohistochemistry (Paraffin-embedded Section), 0.5-1μg/ml, Human, Mouse, Rat
Immunocytochemistry/Immunofluorescence, 2μg/ml, Human
Flow Cytometry (Fixed), 1-3μg/1x106 cells, Human
ELISA, 0.1-0.5μg/ml, -
Positive Control
WB: human HEK293 whole cell, human U2OS whole cell
IHC: human melanoma tissue
ICC/IF: A431 cell
FCM: K562 cell
Validation Images & Assay Conditions
Click image to see more details

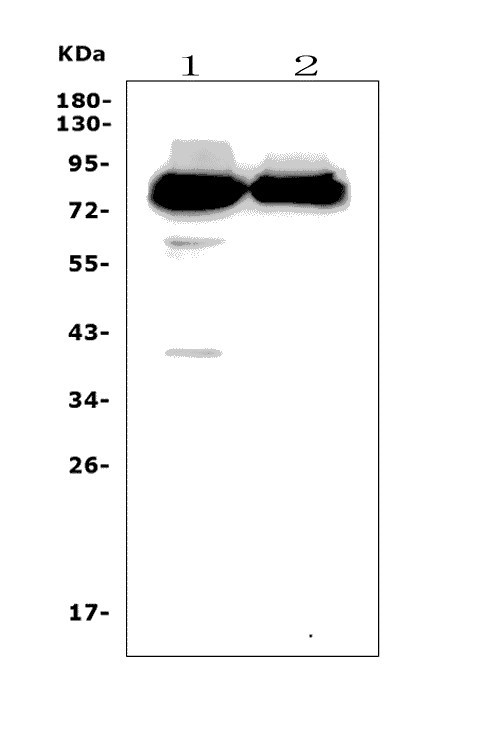

Figure 1. Western blot analysis of PPM1E using anti-PPM1E antibody (A08794).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: human HEK293 whole cell lysates,
Lane 2: human U2OS whole cell lysates.
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-PPM1E antigen affinity purified polyclonal antibody (Catalog # A08794) at 0.25 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for PPM1E at approximately 84KD. The expected band size for PPM1E is at 84KD.
Click image to see more details

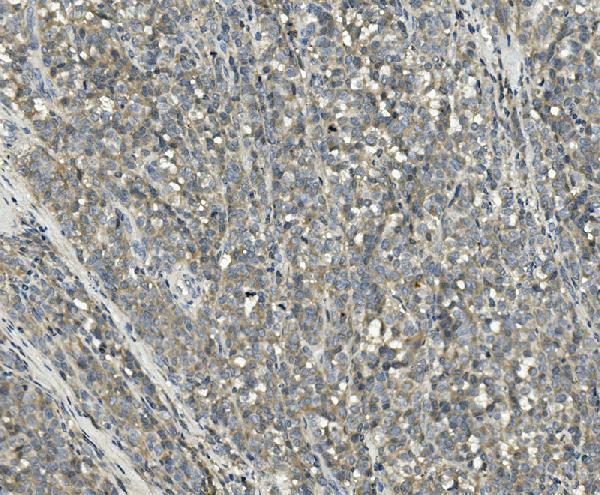

Figure 2. IHC analysis of PPM1E using anti-PPM1E antibody (A08794).
PPM1E was detected in paraffin-embedded section of human melanoma tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1μg/ml rabbit anti-PPM1E Antibody (A08794) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Click image to see more details

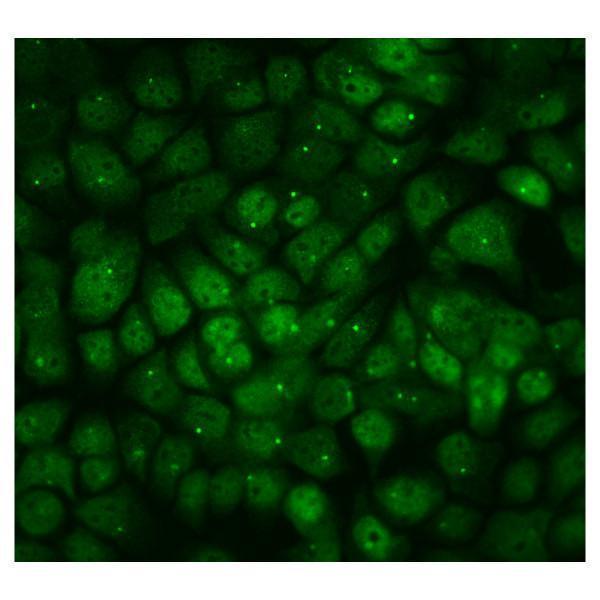

Figure 3. IF analysis of PPM1E using anti-PPM1E antibody (A08794).
PPM1E was detected in immunocytochemical section of A431 cells. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent (AR0022) for 15 mins. The cells were blocked with 10% goat serum. And then incubated with 2μg/mL rabbit anti-PPM1E Antibody (A08794) overnight at 4°C. DyLight®488 conjugated Goat Anti-Rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.
Click image to see more details
Figure 4. Flow Cytometry analysis of K562 cells using anti-PPM1E antibody (A08794).
Overlay histogram showing K562 cells stained with A08794 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-PPM1E Antibody (A08794, 1μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x106) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Protein Target Info & Infographic
Gene/Protein Information For PPM1E (Source: Uniprot.org, NCBI)
Gene Name
PPM1E
Full Name
Protein phosphatase 1E
Weight
83.952kDa
Superfamily
PP2C family
Alternative Names
Protein phosphatase 1E; Ca (2+)/calmodulin-dependent protein kinase phosphatase N; CaMKP-N; CaMKP-nucleus; CaMKN; Partner of PIX 1; Partner of PIX-alpha; Partner of PIXA; PPM1E; CAMKN; KIAA1072; POPX1 PPM1E CaMKP-N, POPX1, PP2CH, caMKN protein phosphatase, Mg2+/Mn2+ dependent 1E protein phosphatase 1E|ca(2+)/calmodulin-dependent protein kinase phosphatase N|caMKP-nucleus|nuclear calmodulin-dependent protein kinase phosphatase|partner of PIX 1|partner of PIX-alpha|partner of PIXA|protein phosphatase 1E (PP2C domain containing)
*If product is indicated to react with multiple species, protein info is based on the gene entry specified above in "Species".For more info on PPM1E, check out the PPM1E Infographic
We have 30,000+ of these available, one for each gene! Check them out.
In this infographic, you will see the following information for PPM1E: database IDs, superfamily, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post-translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact [email protected].
