Product Info Summary
| SKU: | A00508-1 |
|---|---|
| Size: | 100 µg/vial |
| Reactive Species: | Human, Mouse, Rat |
| Host: | Rabbit |
| Application: | ELISA, Flow Cytometry, IF, ICC, WB |
Customers Who Bought This Also Bought
Product info
Product Name
Anti-OPA1 Antibody Picoband®
SKU/Catalog Number
A00508-1
Size
100 µg/vial
Form
Lyophilized
Description
Boster Bio Anti-OPA1 Antibody Picoband® catalog # A00508-1. Tested in ELISA, Flow Cytometry, IF, ICC, WB applications. This antibody reacts with Human, Mouse, Rat. The brand Picoband indicates this is a premium antibody that guarantees superior quality, high affinity, and strong signals with minimal background in Western blot applications. Only our best-performing antibodies are designated as Picoband, ensuring unmatched performance.
Storage & Handling
At -20°C for one year from date of receipt. After reconstitution, at 4°C for one month. It can also be aliquotted and stored frozen at -20°C for six months. Avoid repeated freezing and thawing.
Cite This Product
Anti-OPA1 Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # A00508-1)
Host
Rabbit
Contents
Each vial contains 4 mg Trehalose, 0.9 mg NaCl, 0.2 mg Na2HPO4.
Clonality
Polyclonal
Isotype
Rabbit IgG
Immunogen
E.coli-derived human OPA1 recombinant protein (Position: D296-Q562).
*Blocking peptide can be purchased. Costs vary based on immunogen length. Contact us for pricing.
Cross-reactivity
No cross-reactivity with other proteins.
Reactive Species
A00508-1 is reactive to OPA1 in Human, Mouse, Rat
Reconstitution
Adding 0.2 ml of distilled water will yield a concentration of 500 µg/ml.
Observed Molecular Weight
80-100 kDa
Calculated molecular weight
40108 MW
Background of OPA1
Dynamin-like 120 kDa protein, mitochondrial is a protein that in humans is encoded by the OPA1 gene. It is mapped to 3q29. This protein regulates mitochondrial fusion and cristae structure in the inner mitochondrial membrane (IMM) and contributes to ATP synthesis and apoptosis. This gene product is a nuclear-encoded mitochondrial protein with similarity to dynamin-related GTPases. It is a component of the mitochondrial network. Mutations in this gene have been associated with optic atrophy type 1, which is a dominantly inherited optic neuropathy resulting in progressive loss of visual acuity, leading in many cases to legal blindness. Multiple transcript variants encoding different isoforms have been found for this gene.
Antibody Validation
Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.
Application & Images
Applications
A00508-1 is guaranteed for ELISA, Flow Cytometry, IF, ICC, WB Boster Guarantee
Assay Dilutions Recommendation
The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.
Western blot, 0.1-0.25 μg/ml, Human, Mouse, Rat
Immunocytochemistry/Immunofluorescence, 5 μg/ml, Human
Flow Cytometry (Fixed), 1-3 μg/1x106 cells, Human
ELISA, 0.1-0.5 μg/ml, -
Positive Control
WB: human Ramos whole cell, human Hela whole cell, human PANC-1 whole cell, human MCF-7 whole cell, rat brain tissue, mouse eye tissue, mouse brain tissue
ICC/IF: U2OS cell
FCM: Daudi cell
Validation Images & Assay Conditions
Click image to see more details

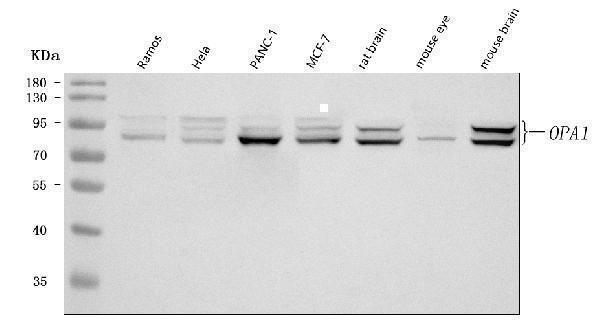

Figure 1. Western blot analysis of OPA1 using anti-OPA1 antibody (A00508-1).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Ramos whole cell lysates,
Lane 2: human Hela whole cell lysates,
Lane 3: human PANC-1 whole cell lysates,
Lane 4: human MCF-7 whole cell lysates,
Lane 5: rat brain tissue lysates,
Lane 6: mouse eye tissue lysates,
Lane 7: mouse brain tissue lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-OPA1 antigen affinity purified polyclonal antibody (Catalog # A00508-1) at 0.25 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for OPA1 at approximately 80-100 kDa. The expected band size for OPA1 is at 112,80-100 kDa.
Click image to see more details
Figure 2. IF analysis of OPA1 using anti-OPA1 antibody (A00508-1).
OPA1 was detected in an immunocytochemical section of U2OS cells. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent (AR0022) for 15 mins. The cells were blocked with 10% goat serum. And then incubated with 5 μg/mL rabbit anti-OPA1 Antibody (A00508-1) overnight at 4°C. Cy3 Conjugated Goat Anti-Rabbit IgG (BA1032) was used as secondary antibody at 1:500 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.
Click image to see more details
Figure 3. Flow Cytometry analysis of Daudi cells using anti-OPA1 antibody (A00508-1).
Overlay histogram showing Daudi cells stained with A00508-1 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-OPA1 Antibody (A00508-1, 1 μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10 μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1 μg/1x106) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Protein Target Info & Infographic
Gene/Protein Information For OPA1 (Source: Uniprot.org, NCBI)
Gene Name
OPA1
Full Name
Dynamin-like 120 kDa protein, mitochondrial
Weight
40108 MW
Superfamily
TRAFAC class dynamin-like GTPase superfamily
Alternative Names
Hereditary hemochromatosis protein;HLA-H;HFE;HLAH; OPA1 BERHS, MGM1, MTDPS14, NPG, NTG, largeG OPA1 mitochondrial dynamin like GTPase dynamin-like 120 kDa protein, mitochondrial|dynamin-like guanosine triphosphatase|mitochondrial dynamin-like GTPase|optic atrophy 1 (autosomal dominant)|optic atrophy protein 1
*If product is indicated to react with multiple species, protein info is based on the gene entry specified above in "Species".For more info on OPA1, check out the OPA1 Infographic
We have 30,000+ of these available, one for each gene! Check them out.
In this infographic, you will see the following information for OPA1: database IDs, superfamily, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post-translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact [email protected].
