Click image to see more details
Product Info Summary
| SKU: | A02955-1 |
|---|---|
| Size: | 100 μg/vial |
| Reactive Species: | Human, Mouse, Rat |
| Host: | Rabbit |
| Application: | Flow Cytometry, IF, ICC, WB |
Customers Who Bought This Also Bought
Product info
Product Name
Anti-OFD1 Antibody Picoband®
SKU/Catalog Number
A02955-1
Size
100 μg/vial
Form
Lyophilized
Description
Boster Bio Anti-OFD1 Antibody Picoband® catalog # A02955-1. Tested in Flow Cytometry, IF, ICC, WB applications. This antibody reacts with Human, Mouse, Rat. The brand Picoband indicates this is a premium antibody that guarantees superior quality, high affinity, and strong signals with minimal background in Western blot applications. Only our best-performing antibodies are designated as Picoband, ensuring unmatched performance.
Storage & Handling
Store at -20˚C for one year from date of receipt. After reconstitution, at 4˚C for one month. It can also be aliquotted and stored frozen at -20˚C for six months. Avoid repeated freeze-thaw cycles.
Cite This Product
Anti-OFD1 Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # A02955-1)
Host
Rabbit
Contents
Each vial contains 4 mg Trehalose, 0.9 mg NaCl and 0.2 mg Na2HPO4.
Clonality
Polyclonal
Isotype
Rabbit IgG
Immunogen
A synthetic peptide corresponding to a sequence at the C-terminus of human OFD1, which shares 75.9% and 86.2% amino acid (aa) sequence identity with mouse and rat OFD1, respectively.
*Blocking peptide can be purchased. Costs vary based on immunogen length. Contact us for pricing.
Cross-reactivity
No cross-reactivity with other proteins.
Reactive Species
A02955-1 is reactive to OFD1 in Human, Mouse, Rat
Reconstitution
Add 0.2ml of distilled water will yield a concentration of 500ug/ml.
Observed Molecular Weight
117 kDa
Calculated molecular weight
58026 MW
Background of OFD1
Oral-facial-digital syndrome 1 protein is a protein that in humans is encoded by the OFD1 gene. This gene is mapped to Xp22.2. This gene is located on the X chromosome and encodes a centrosomal protein. A knockout mouse model has been used to study the effect of mutations in this gene. The mouse gene is also located on the X chromosome, however, unlike the human gene it is not subject to X inactivation. Mutations in this gene are associated with oral-facial-digital syndrome type I and Simpson-Golabi-Behmel syndrome type 2. Many pseudogenes have been identified; a single pseudogene is found on chromosome 5 while as many as fifteen have been found on the Y chromosome.
Antibody Validation
Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.
Application & Images
Applications
A02955-1 is guaranteed for Flow Cytometry, IF, ICC, WB Boster Guarantee
Assay Dilutions Recommendation
The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.
Western blot, 0.25-0.5μg/ml, Human, Mouse, Rat
Immunocytochemistry/Immunofluorescence, 5 μg/ml, Human
Flow Cytometry (Fixed), 1-3μg/1x106 cells, Human
Positive Control
WB: human CACO-2 whole cell, human Hela whole cell, human SH-SY5Y whole cell, rat brain tissue, mouse brain tissue
ICC/IF U2OS cell
FCM: JK cell
Validation Images & Assay Conditions
Click image to see more details

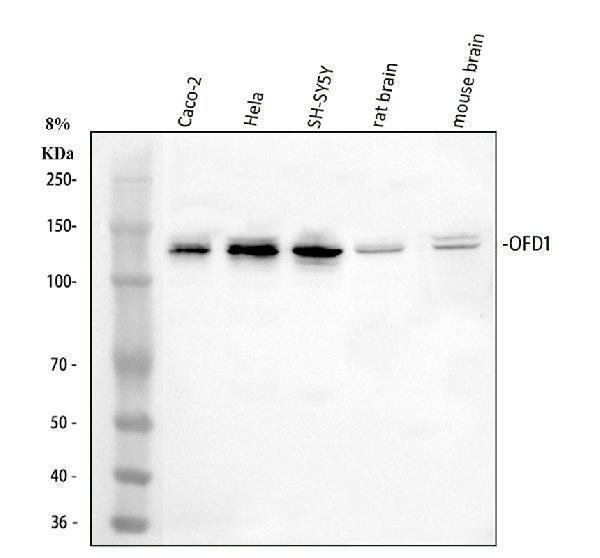

Figure 1. Western blot analysis of OFD1 using anti-OFD1 antibody (A02955-1).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human CACO-2 whole cell lysates,
Lane 2: human Hela whole cell lysates,
Lane 3: human SH-SY5Y whole cell lysates,
Lane 4: rat brain tissue lysates,
Lane 5: mouse brain tissue lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-OFD1 antigen affinity purified polyclonal antibody (Catalog # A02955-1) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for OFD1 at approximately 117 kDa. The expected band size for OFD1 is at 117 kDa.
Click image to see more details
Figure 2. IF analysis of OFD1 using anti-OFD1 antibody (A02955-1).
OFD1 was detected in an immunocytochemical section of U2OS cells. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent (AR0022) for 15 mins. The cells were blocked with 10% goat serum. And then incubated with 5 μg/mL rabbit anti-OFD1 Antibody (A02955-1) overnight at 4°C. DyLight®488 Conjugated Goat Anti-Rabbit IgG (BA1127) was used as secondary antibody at 1:500 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.
Click image to see more details

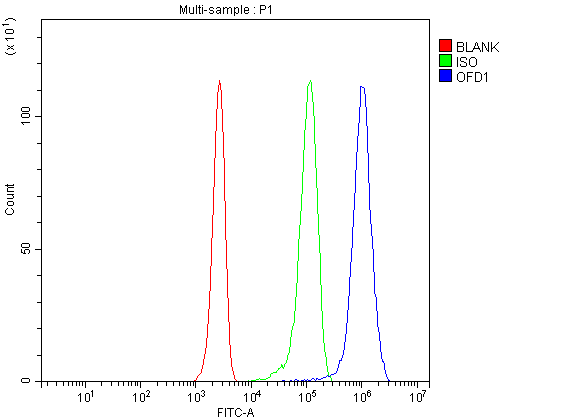

Figure 3. Flow Cytometry analysis of JK cells using anti-OFD1 antibody (A02955-1).
Overlay histogram showing JK cells stained with A02955-1 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-OFD1 Antibody (A02955-1, 1 μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10 μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1 μg/1x106) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Protein Target Info & Infographic
Gene/Protein Information For OFD1 (Source: Uniprot.org, NCBI)
Gene Name
OFD1
Full Name
Oral-facial-digital syndrome 1 protein
Weight
58026 MW
Superfamily
OFD1 family
Alternative Names
Oral-facial-digital syndrome 1 protein; Protein 71-7A; OFD1; CXorf5 OFD1 71-7A, CXorf5, JBTS10, RP23, SGBS2 OFD1 centriole and centriolar satellite protein oral-facial-digital syndrome 1 protein|Joubert syndrome type 10|protein 71-7A
*If product is indicated to react with multiple species, protein info is based on the gene entry specified above in "Species".For more info on OFD1, check out the OFD1 Infographic
We have 30,000+ of these available, one for each gene! Check them out.
In this infographic, you will see the following information for OFD1: database IDs, superfamily, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post-translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact [email protected].
