Product Info Summary
| SKU: | A01507-1 |
|---|---|
| Size: | 100 μg/vial |
| Reactive Species: | Human, Mouse, Rat |
| Host: | Rabbit |
| Application: | ELISA, Flow Cytometry, IF, ICC, WB |
Customers Who Bought This Also Bought
Product info
Product Name
Anti-Eph receptor B2/EPHB2 Antibody Picoband®
SKU/Catalog Number
A01507-1
Size
100 μg/vial
Form
Lyophilized
Description
Boster Bio Anti-Eph receptor B2/EPHB2 Antibody Picoband® catalog # A01507-1. Tested in ELISA, Flow Cytometry, IF, ICC, WB applications. This antibody reacts with Human, Mouse, Rat. The brand Picoband indicates this is a premium antibody that guarantees superior quality, high affinity, and strong signals with minimal background in Western blot applications. Only our best-performing antibodies are designated as Picoband, ensuring unmatched performance.
Storage & Handling
Store at -20˚C for one year from date of receipt. After reconstitution, at 4˚C for one month. It can also be aliquotted and stored frozen at -20˚C for six months. Avoid repeated freeze-thaw cycles.
Cite This Product
Anti-Eph receptor B2/EPHB2 Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # A01507-1)
Host
Rabbit
Contents
Each vial contains 4mg Trehalose, 0.9mg NaCl, 0.2mg Na2HPO4, 0.05mg NaN3.
Clonality
Polyclonal
Isotype
Rabbit IgG
Immunogen
E.coli-derived human Eph receptor B2/EPHB2 recombinant protein (Position: K278-K540).
*Blocking peptide can be purchased. Costs vary based on immunogen length. Contact us for pricing.
Cross-reactivity
No cross-reactivity with other proteins.
Reactive Species
A01507-1 is reactive to EPHB2 in Human, Mouse, Rat
Reconstitution
Add 0.2ml of distilled water will yield a concentration of 500ug/ml.
Observed Molecular Weight
117 kDa
Calculated molecular weight
117.493kDa
Background of EPHB2
Ephrin type-B receptor 2 is a protein that in humans is encoded by the EPHB2 gene. This gene is mapped to 1p36.12. This gene encodes a member of the Eph receptor family of receptor tyrosine kinase transmembrane glycoproteins. These receptors are composed of an N-terminal glycosylated ligand-binding domain, a transmembrane region and an intracellular kinase domain. They bind ligands called ephrins and are involved in diverse cellular processes including motility, division, and differentiation. A distinguishing characteristic of Eph-ephrin signaling is that both receptors and ligands are competent to transduce a signaling cascade, resulting in bidirectional signaling. This protein belongs to a subgroup of the Eph receptors called EphB. Proteins of this subgroup are distinguished from other members of the family by sequence homology and preferential binding affinity for membrane-bound ephrin-B ligands. Allelic variants are associated with prostate and brain cancer susceptibility. Alternative splicing results in multiple transcript variants.
Antibody Validation
Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.
Application & Images
Applications
A01507-1 is guaranteed for ELISA, Flow Cytometry, IF, ICC, WB Boster Guarantee
Assay Dilutions Recommendation
The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.
Western blot, 0.25-0.5μg/ml, Human
Immunocytochemistry/Immunofluorescence, 2μg/ml, Human
Flow Cytometry (Fixed), 1-3μg/1x106 cells, Human, Mouse, Rat
ELISA, 0.1-0.5μg/ml, -
Positive Control
WB: human U-87MG whole cell, human A549 whole cell, human PC-3 whole cell, human Caco-2 whole cell, human K562 whole cell
ICC/IF: A431 cell
FCM: A549 cell, Ana-1 cell, C6 cell
Validation Images & Assay Conditions
Click image to see more details

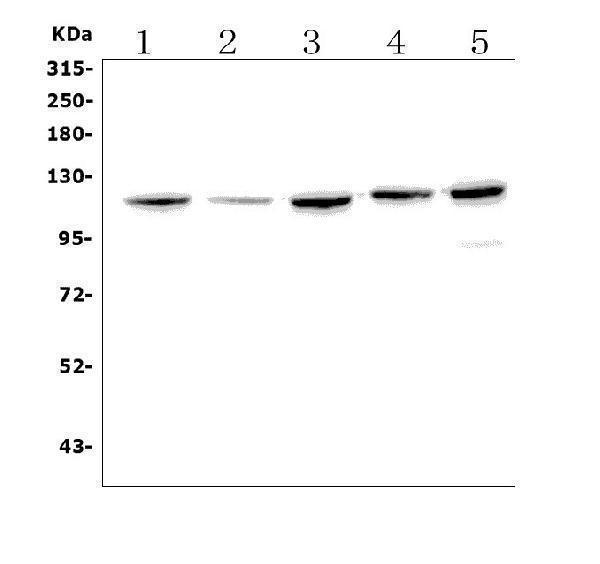

Figure 1. Western blot analysis of EPHB2 using anti-EPHB2 antibody (A01507-1).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: human U-87MG whole cell lysates,
Lane 2: human A549 whole cell lysates,
Lane 3: human PC-3 whole cell lysates,
Lane 4: human Caco-2 whole cell lysates,
Lane 5: human K562 whole cell lysates.
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-EPHB2 antigen affinity purified polyclonal antibody (Catalog # A01507-1) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for EPHB2 at approximately 117KD. The expected band size for EPHB2 is at 117KD.
Click image to see more details
Figure 2. IF analysis of EPHB2 using anti-EPHB2 antibody (A01507-1).
EPHB2 was detected in immunocytochemical section of A431 cells. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent (AR0022) for 15 mins. The cells were blocked with 10% goat serum. And then incubated with 2μg/mL rabbit anti-EPHB2 Antibody (A01507-1) overnight at 4°C. DyLight®488 conjugated Goat Anti-Rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.
Click image to see more details

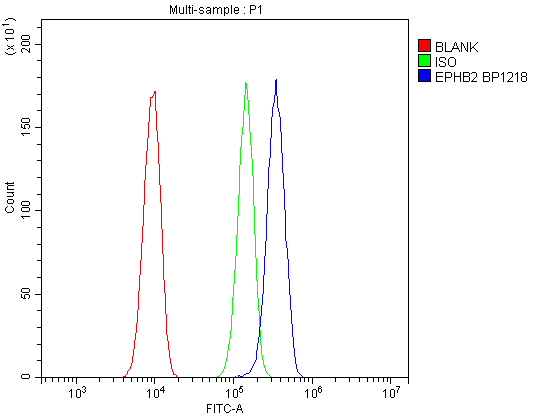

Figure 3. Flow Cytometry analysis of A549 cells using anti-EPHB2 antibody (A01507-1).
Overlay histogram showing A549 cells stained with A01507-1 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-EPHB2 Antibody (A01507-1, 1μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x106) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Click image to see more details

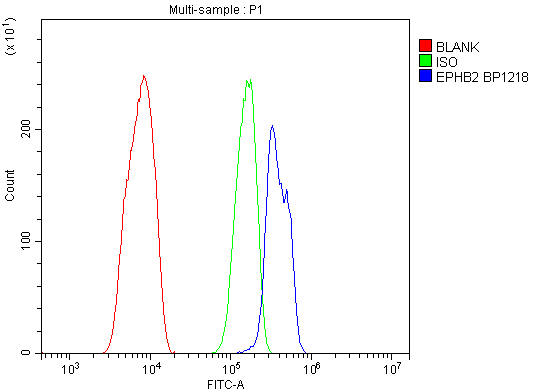

Figure 4. Flow Cytometry analysis of Ana-1 cells using anti-EPHB2 antibody (A01507-1).
Overlay histogram showing Ana-1 cells stained with A01507-1 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-EPHB2 Antibody (A01507-1, 1μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x106) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Click image to see more details
Figure 5. Flow Cytometry analysis of C6 cells using anti-EPHB2 antibody (A01507-1).
Overlay histogram showing C6 cells stained with A01507-1 (Blue line).The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-EPHB2 Antibody (A01507-1, 1μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x106) used under the same conditions. Unlabelled sample (Red line) was also used as a control.
Protein Target Info & Infographic
Gene/Protein Information For EPHB2 (Source: Uniprot.org, NCBI)
Gene Name
EPHB2
Full Name
Ephrin type-B receptor 2
Weight
117.493kDa
Superfamily
protein kinase superfamily
Alternative Names
Ephrin type-B receptor 2 ; Developmentally-regulated Eph-related tyrosine kinase; ELK-related tyrosine kinase; EPH tyrosine kinase 3; EPH-like kinase 5; EK5; Hek5; Renal carcinoma antigen NY-REN-47; Tyrosine-protein kinase TYRO5; Tyrosine-protein kinase receptor EPH-3; EPHB2; DRT, EPHT3, EPTH3, ERK, HEK5, TYRO5 EPHB2 BDPLT22, CAPB, DRT, EK5, EPHT3, ERK, Hek5, PCBC, Tyro5 EPH receptor B2 ephrin type-B receptor 2|EPH-like kinase 5|developmentally-regulated Eph-related tyrosine kinase|elk-related tyrosine kinase|eph tyrosine kinase 3|protein-tyrosine kinase HEK5|renal carcinoma NY-REN-47|tyrosine-protein kinase TYRO5|tyrosine-protein kinase receptor EPH-3
*If product is indicated to react with multiple species, protein info is based on the gene entry specified above in "Species".For more info on EPHB2, check out the EPHB2 Infographic
We have 30,000+ of these available, one for each gene! Check them out.
In this infographic, you will see the following information for EPHB2: database IDs, superfamily, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post-translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact [email protected].
Specific Publications For Anti-Eph receptor B2/EPHB2 Antibody Picoband® (A01507-1)
Hello CJ!
No publications found for A01507-1
*Do you have publications using this product? Share with us and receive a reward. Ask us for more details.
