Product Info Summary
| SKU: | A04612 |
|---|---|
| Size: | 100 μg/vial |
| Reactive Species: | Human, Mouse, Rat |
| Host: | Rabbit |
| Application: | ELISA, Flow Cytometry, IF, ICC, WB |
Customers Who Bought This Also Bought
Product info
Product Name
Anti-DIO1 Antibody Picoband®
SKU/Catalog Number
A04612
Size
100 μg/vial
Form
Lyophilized
Description
Boster Bio Anti-DIO1 Antibody Picoband® catalog # A04612. Tested in ELISA, Flow Cytometry, IF, ICC, WB applications. This antibody reacts with Human, Mouse, Rat. The brand Picoband indicates this is a premium antibody that guarantees superior quality, high affinity, and strong signals with minimal background in Western blot applications. Only our best-performing antibodies are designated as Picoband, ensuring unmatched performance.
Storage & Handling
Store at -20˚C for one year from date of receipt. After reconstitution, at 4˚C for one month. It can also be aliquotted and stored frozen at -20˚C for six months. Avoid repeated freeze-thaw cycles.
Cite This Product
Anti-DIO1 Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # A04612)
Host
Rabbit
Contents
Each vial contains 4mg Trehalose, 0.9mg NaCl, 0.2mg Na2HPO4, 0.05mg NaN3.
Clonality
Polyclonal
Isotype
Rabbit IgG
Immunogen
E.coli-derived human DIO1 recombinant protein (Position: K137-S249).
*Blocking peptide can be purchased. Costs vary based on immunogen length. Contact us for pricing.
Cross-reactivity
No cross-reactivity with other proteins.
Reactive Species
A04612 is reactive to DIO1 in Human, Mouse, Rat
Reconstitution
Add 0.2ml of distilled water will yield a concentration of 500ug/ml.
Observed Molecular Weight
29 kDa
Calculated molecular weight
28.924kDa
Background of DIO1
Type I iodothyronine deiodinase is a protein that in humans is encoded by the DIO1 gene. It is mapped to 1p32.3. The protein encoded by this gene belongs to the iodothyronine deiodinase family. It catalyzes the activation, as well as the inactivation of thyroid hormone by outer and inner ring deiodination, respectively. The activation reaction involves the conversion of the prohormone thyroxine (3,5,3',5'-tetraiodothyronine, T4), secreted by the thyroid gland, to the bioactive thyroid hormone (3,5,3'-triiodothyronine, T3) by 5'-deiodination. This protein provides most of the circulating T3, which is essential for growth, differentiation and basal metabolism in vertebrates. This protein is a selenoprotein, containing the rare amino acid selenocysteine (Sec) at its active site. Sec is encoded by the UGA codon, which normally signals translation termination. The 3' UTRs of selenoprotein mRNAs contain a conserved stem-loop structure, designated the Sec insertion sequence (SECIS) element, that is necessary for the recognition of UGA as a Sec codon, rather than as a stop signal. Alternatively spliced transcript variants have been found for this gene.
Antibody Validation
Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.
Application & Images
Applications
A04612 is guaranteed for ELISA, Flow Cytometry, IF, ICC, WB Boster Guarantee
Assay Dilutions Recommendation
The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.
Western blot, 0.25-0.5μg/ml, Human, Rat
Immunocytochemistry/Immunofluorescence, 2μg/ml, Human
Flow Cytometry (Fixed), 1-3μg/1x106 cells, Human, Mouse
ELISA, 0.1-0.5μg/ml, -
Positive Control
WB: rat liver tissue, rat kidney tissue, human A549 whole cell
ICC/IF: A549 cell
FCM: 293T cell, ANA-1 cell
Validation Images & Assay Conditions
Click image to see more details

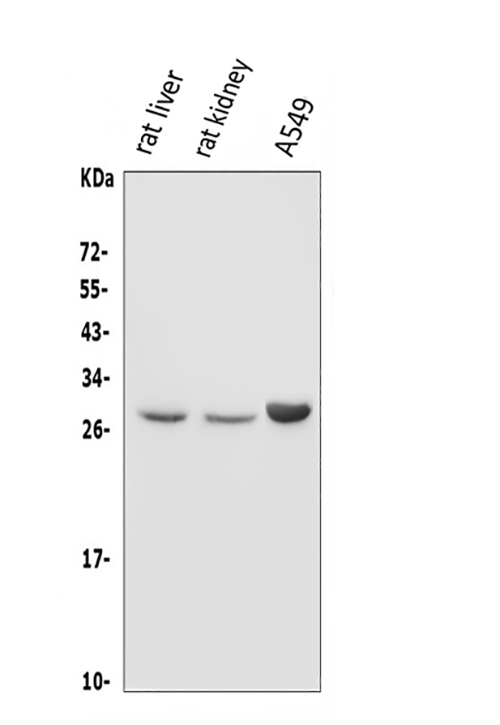

Figure 1. Western blot analysis of DIO1 using anti-DIO1 antibody (A04612).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: rat liver tissue lysates,
Lane 2: rat kidney tissue lysates,
Lane 3: human A549 whole cell lysates.
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-DIO1 antigen affinity purified polyclonal antibody (Catalog # A04612) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for DIO1 at approximately 29KD. The expected band size for DIO1 is at 29KD.
Click image to see more details
Figure 2. IF analysis of DIO1 using anti-DIO1 antibody (A04612).
DIO1 was detected in immunocytochemical section of A549 cells. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent (AR0022) for 15 mins. The cells were blocked with 10% goat serum. And then incubated with 2μg/mL rabbit anti-DIO1 Antibody (A04612) overnight at 4°C. DyLight®488 Conjugated Goat Anti-Rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.
Click image to see more details

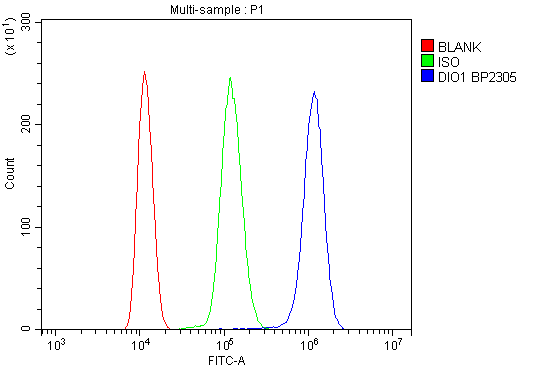

Figure 3. Flow Cytometry analysis of 293T cells using anti-DIO1 antibody (A04612).
Overlay histogram showing 293T cells stained with A04612 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-DIO1 Antibody (A04612, 1μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x106) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Click image to see more details
Figure 4. Flow Cytometry analysis of ANA-1 cells using anti-DIO1 antibody (A04612).
Overlay histogram showing ANA-1 cells stained with A04612 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-DIO1 Antibody (A04612, 1μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x106) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Protein Target Info & Infographic
Gene/Protein Information For DIO1 (Source: Uniprot.org, NCBI)
Gene Name
DIO1
Full Name
Type I iodothyronine deiodinase
Weight
28.924kDa
Superfamily
iodothyronine deiodinase family
Alternative Names
Type I iodothyronine deiodinase; 5DI; DIOI; Type 1 DI; Type-I 5'-deiodinase; DIO1; ITDI1; TXDI1 DIO1 5DI, TXDI1 iodothyronine deiodinase 1 type I iodothyronine deiodinase|DIOI|deiodinase, iodothyronine type I|iodothyronine deiodinase type 1|selenoprotein DIO1|thyroxine 5-deiodinase|thyroxine deiodinase type I (selenoprotein)|type 1 DI|type-I 5-deiodinase
*If product is indicated to react with multiple species, protein info is based on the gene entry specified above in "Species".For more info on DIO1, check out the DIO1 Infographic
We have 30,000+ of these available, one for each gene! Check them out.
In this infographic, you will see the following information for DIO1: database IDs, superfamily, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post-translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact [email protected].
Specific Publications For Anti-DIO1 Antibody Picoband® (A04612)
Hello CJ!
No publications found for A04612
*Do you have publications using this product? Share with us and receive a reward. Ask us for more details.
