Product Info Summary
| SKU: | A03006-1 |
|---|---|
| Size: | 100 μg/vial |
| Reactive Species: | Human, Monkey, Mouse, Rat |
| Host: | Rabbit |
| Application: | ELISA, Flow Cytometry, IHC, WB |
Customers Who Bought This Also Bought
Product info
Product Name
Anti-CACNA1S Antibody Picoband®
SKU/Catalog Number
A03006-1
Size
100 μg/vial
Form
Lyophilized
Description
Boster Bio Anti-CACNA1S Antibody Picoband® catalog # A03006-1. Tested in ELISA, Flow Cytometry, IHC, WB applications. This antibody reacts with Human, Monkey, Mouse, Rat. The brand Picoband indicates this is a premium antibody that guarantees superior quality, high affinity, and strong signals with minimal background in Western blot applications. Only our best-performing antibodies are designated as Picoband, ensuring unmatched performance.
Storage & Handling
Store at -20˚C for one year from date of receipt. After reconstitution, at 4˚C for one month. It can also be aliquotted and stored frozen at -20˚C for six months. Avoid repeated freeze-thaw cycles.
Cite This Product
Anti-CACNA1S Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # A03006-1)
Host
Rabbit
Contents
Each vial contains 4mg Trehalose, 0.9mg NaCl, 0.2mg Na2HPO4, 0.005mg NaN3.
Clonality
Polyclonal
Isotype
Rabbit IgG
Immunogen
E.coli-derived human CACNA1S recombinant protein (Position: E1583-C1779).
*Blocking peptide can be purchased. Costs vary based on immunogen length. Contact us for pricing.
Cross-reactivity
No cross-reactivity with other proteins.
Reactive Species
A03006-1 is reactive to CACNA1S in Human, Monkey, Mouse, Rat
Reconstitution
Add 0.2ml of distilled water will yield a concentration of 500μg/ml.
Observed Molecular Weight
220 kDa
Calculated molecular weight
212.35kDa
Background of CACNA1S
Cav1.1 also known as the calcium channel, voltage-dependent, L type, alpha 1S subunit, (CACNA1S), is a protein which in humans is encoded by the CACNA1S gene. This gene encodes one of the five subunits of the slowly inactivating L-type voltage-dependent calcium channel in skeletal muscle cells. Mutations in this gene have been associated with hypokalemic periodic paralysis, thyrotoxic periodic paralysis and malignant hyperthermia susceptibility.
Antibody Validation
Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.
Application & Images
Applications
A03006-1 is guaranteed for ELISA, Flow Cytometry, IHC, WB Boster Guarantee
Assay Dilutions Recommendation
The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.
Western blot, 0.25-0.5μg/ml, Mouse, Rat, Monkey
Immunohistochemistry (Paraffin-embedded Section), 2-5μg/ml, Human, Rat
Flow Cytometry (Fixed), 1-3μg/1x106 cells, Human
ELISA, 0.1-0.5μg/ml, -
Positive Control
WB: monkey skeletal muscle tissue, rat skeletal muscle tissue, mouse skeletal muscle tissue
IHC: human skeletal muscle tissue, rat skeletal muscle tissue
FCM: U937 cell
Validation Images & Assay Conditions
Click image to see more details

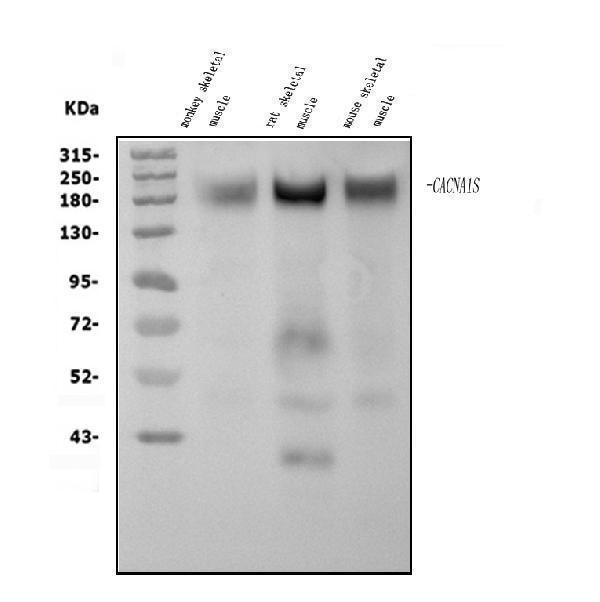

Figure 1. Western blot analysis of CACNA1S using anti-CACNA1S antibody (A03006-1).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: monkey skeletal muscle tissue lysates,
Lane 2: rat skeletal muscle tissue lysates,
Lane 3: mouse skeletal muscle tissue lysates.
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-CACNA1S antigen affinity purified polyclonal antibody (Catalog # A03006-1) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for CACNA1S at approximately 220KD. The expected band size for CACNA1S is at 220KD.
Click image to see more details
Figure 2. IHC analysis of CACNA1S using anti-CACNA1S antibody (A03006-1).
CACNA1S was detected in paraffin-embedded section of human skeletal muscle tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2μg/ml rabbit anti-CACNA1S Antibody (A03006-1) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Click image to see more details
Figure 3. IHC analysis of CACNA1S using anti-CACNA1S antibody (A03006-1).
CACNA1S was detected in paraffin-embedded section of rat skeletal muscle tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2μg/ml rabbit anti-CACNA1S Antibody (A03006-1) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Click image to see more details
Figure 4. Flow Cytometry analysis of U937 cells using anti-CACNA1S antibody (A03006-1).
Overlay histogram showing U937 cells stained with A03006-1 (Blue line). The cells were fixed with 4% paraformaldehyde and blocked with 10% normal goat serum. And then incubated with rabbit anti-CACNA1S Antibody (A03006-1, 1μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x106) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Protein Target Info & Infographic
Gene/Protein Information For CACNA1S (Source: Uniprot.org, NCBI)
Gene Name
CACNA1S
Full Name
Voltage-dependent L-type calcium channel subunit alpha-1S
Weight
212.35kDa
Superfamily
calcium channel alpha-1 subunit (TC 1.A.1.11) family
Alternative Names
Endoglin; Cell surface MJ7/18 antigen; CD105; Eng; Edg; CACNA1S CACNL1A3, CCHL1A3, Cav1.1, HOKPP, HOKPP1, MHS5, TTPP1, hypoPP calcium voltage-gated channel subunit alpha1 S voltage-dependent L-type calcium channel subunit alpha-1S|calcium channel, voltage-dependent, L type, alpha 1S subunit|dihydropyridine receptor alpha 1 subunit|dihydropyridine-sensitive L-type calcium channel alpha-1 subunit|voltage-gated calcium channel subunit alpha Cav1.1
*If product is indicated to react with multiple species, protein info is based on the gene entry specified above in "Species".For more info on CACNA1S, check out the CACNA1S Infographic
We have 30,000+ of these available, one for each gene! Check them out.
In this infographic, you will see the following information for CACNA1S: database IDs, superfamily, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post-translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact [email protected].
Specific Publications For Anti-CACNA1S Antibody Picoband® (A03006-1)
Hello CJ!
No publications found for A03006-1
*Do you have publications using this product? Share with us and receive a reward. Ask us for more details.
