Product Info Summary
| SKU: | A02821-3 |
|---|---|
| Size: | 100 μg/vial |
| Reactive Species: | Human, Mouse, Rat |
| Host: | Rabbit |
| Application: | ELISA, Flow Cytometry, IF, IHC, ICC, WB |
Customers Who Bought This Also Bought
Product info
Product Name
Anti-B7H4/VTCN1 Antibody Picoband®
SKU/Catalog Number
A02821-3
Size
100 μg/vial
Form
Lyophilized
Description
Boster Bio Anti-B7H4/VTCN1 Antibody Picoband® catalog # A02821-3. Tested in ELISA, Flow Cytometry, IF, IHC, ICC, WB applications. This antibody reacts with Human, Mouse, Rat. The brand Picoband indicates this is a premium antibody that guarantees superior quality, high affinity, and strong signals with minimal background in Western blot applications. Only our best-performing antibodies are designated as Picoband, ensuring unmatched performance.
Storage & Handling
Store at -20˚C for one year from date of receipt. After reconstitution, at 4˚C for one month. It can also be aliquotted and stored frozen at -20˚C for six months. Avoid repeated freeze-thaw cycles.
Cite This Product
Anti-B7H4/VTCN1 Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # A02821-3)
Host
Rabbit
Contents
Each vial contains 4mg Trehalose, 0.9mg NaCl, 0.2mg Na2HPO4, 0.05mg NaN3.
Clonality
Polyclonal
Isotype
Rabbit IgG
Immunogen
E.coli-derived human B7H4/VTCN1 recombinant protein (Position: T57-A258).
*Blocking peptide can be purchased. Costs vary based on immunogen length. Contact us for pricing.
Cross-reactivity
No cross-reactivity with other proteins.
Reactive Species
A02821-3 is reactive to VTCN1 in Human, Mouse, Rat
Reconstitution
Add 0.2ml of distilled water will yield a concentration of 500ug/ml.
Observed Molecular Weight
75 kDa
Calculated molecular weight
96950 MW
Background of B7-H4
V-set domain-containing T-cell activation inhibitor 1 is a protein that in humans is encoded by the VTCN1 gene. It is mapped to 1p13.1-p12. This gene encodes a protein belonging to the B7 costimulatory protein family. Proteins in this family are present on the surface of antigen-presenting cells and interact with ligand bound to receptors on the surface of T cells. Studies have shown that high levels of the encoded protein has been correlated with tumor progression. A pseudogene of this gene is located on chromosome 20. Multiple transcript variants encoding different isoforms have been found for this gene.
Antibody Validation
Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.
Application & Images
Applications
A02821-3 is guaranteed for ELISA, Flow Cytometry, IF, IHC, ICC, WB Boster Guarantee
Assay Dilutions Recommendation
The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.
Western blot, 0.25-0.5μg/ml
Immunohistochemistry (Paraffin-embedded Section), 0.5-1μg/ml
Immunocytochemistry/Immunofluorescence, 2μg/ml
Flow Cytometry (Fixed), 1-3μg/1x106 cells
ELISA, 0.1-0.5μg/ml
Positive Control
WB: human MCF-7 whole cell, human Hacat whole cell, human A431 whole cell, rat liver tissue, rat RH35 whole cell, mouse liver tissue, moue liver tissue, mouse HEPA1-6 whole cell,
IHC: human mammary cancer tissue
ICC/IF: U20S cell
FCM: U20S cell
Validation Images & Assay Conditions
Click image to see more details

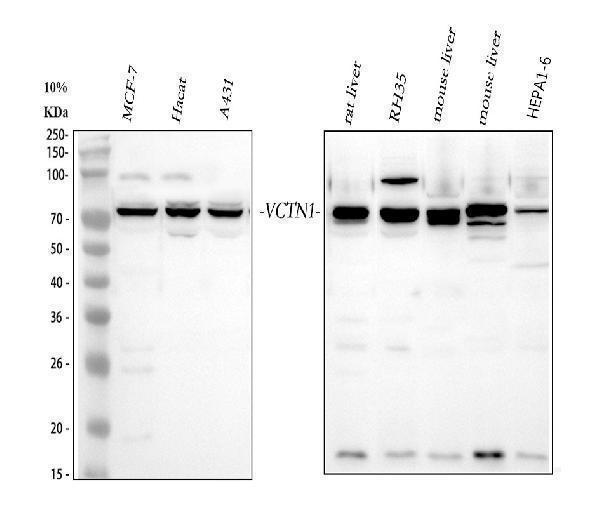

Figure 1. Western blot analysis of VTCN1 using anti-VTCN1 antibody (A02821-3).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human MCF-7 whole cell lysates,
Lane 2: human Hacat whole cell lysates,
Lane 3: human A431 whole cell lysates,
Lane 4: rat liver tissue lysates,
Lane 5: rat RH35 whole cell lysates,
Lane 6: mouse liver tissue lysates,
Lane 7: moue liver tissue lysates,
Lane 8: mouse HEPA1-6 whole cell lysates,
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-VTCN1 antigen affinity purified polyclonal antibody (Catalog # A02821-3) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for VTCN1 at approximately 75 kDa. The expected band size for VTCN1 is at 31 kDa.
Click image to see more details
Figure 2. IHC analysis of VTCN1 using anti-VTCN1 antibody (A02821-3).
VTCN1 was detected in paraffin-embedded section of human mammary cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1μg/ml rabbit anti-VTCN1 Antibody (A02821-3) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Click image to see more details
Figure 3. IF analysis of VTCN1 using anti-VTCN1 antibody (A02821-3).
VTCN1 was detected in immunocytochemical section of U20S cells. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent (AR0022) for 15 mins. The cells were blocked with 10% goat serum. And then incubated with 2μg/mL rabbit anti-VTCN1 Antibody (A02821-3) overnight at 4°C. DyLight®488 Conjugated Goat Anti-Rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.
Click image to see more details
Figure 4. Flow Cytometry analysis of U20S cells using anti-VTCN1 antibody (A02821-3).
Overlay histogram showing U20S cells stained with A02821-3 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-VTCN1 Antibody (A02821-3,1μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x106) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Protein Target Info & Infographic
Gene/Protein Information For VTCN1 (Source: Uniprot.org, NCBI)
Gene Name
VTCN1
Full Name
V-set domain-containing T-cell activation inhibitor 1
Weight
96950 MW
Superfamily
immunoglobulin superfamily
Alternative Names
V-set domain-containing T-cell activation inhibitor 1; B7 homolog 4; B7-H4; B7h.5; Immune costimulatory protein B7-H4; Protein B7S1; T-cell costimulatory molecule B7x; VTCN1; B7H4; UNQ659; PRO1291 VTCN1 B7-H4, B7H4, B7S1, B7X, B7h.5, PRO1291, VCTN1 V-set domain containing T cell activation inhibitor 1 V-set domain-containing T-cell activation inhibitor 1|B7 family member, H4|B7 homolog 4|B7 superfamily member 1|T cell costimulatory molecule B7x|immune costimulatory protein B7-H4
*If product is indicated to react with multiple species, protein info is based on the gene entry specified above in "Species".For more info on VTCN1, check out the VTCN1 Infographic
We have 30,000+ of these available, one for each gene! Check them out.
In this infographic, you will see the following information for VTCN1: database IDs, superfamily, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post-translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact [email protected].
Specific Publications For Anti-B7H4/VTCN1 Antibody Picoband® (A02821-3)
Hello CJ!
No publications found for A02821-3
*Do you have publications using this product? Share with us and receive a reward. Ask us for more details.
Recommended Resources
Here are featured tools and databases that you might find useful.
- Boster's Pathways Library
- Protein Databases
- Bioscience Research Protocol Resources
- Data Processing & Analysis Software
- Photo Editing Software
- Scientific Literature Resources
- Research Paper Management Tools
- Molecular Biology Software
- Primer Design Tools
- Bioinformatics Tools
- Phylogenetic Tree Analysis
Customer Reviews
Have you used Anti-B7H4/VTCN1 Antibody Picoband®?
Submit a review and receive an Amazon gift card.
- $30 for a review with an image
0 Reviews For Anti-B7H4/VTCN1 Antibody Picoband®
Customer Q&As
Have a question?
Find answers in Q&As, reviews.
Can't find your answer?
Submit your question
1 Customer Q&As for Anti-B7H4/VTCN1 Antibody Picoband®
Question
We are currently using anti-B7H4/VTCN1 antibody A02821-3 for human tissue, and we are well pleased with the WB results. The species of reactivity given in the datasheet says human, mouse, rat. Is it true that the antibody can work on horse tissues as well?
Verified Customer
Verified customer
Asked: 2018-09-14
Answer
The anti-B7H4/VTCN1 antibody (A02821-3) has not been tested for cross reactivity specifically with horse tissues, though there is a good chance of cross reactivity. We have an innovator award program that if you test this antibody and show it works in horse you can get your next antibody for free. Please contact me if I can help you with anything.
Boster Scientific Support
Answered: 2018-09-14
