Q-View™ Imager & Software

Q-Plex™ Technology offers quality imaging and data analysis for every application and budget

Return to Multiplex ELISA Solutions Main Page

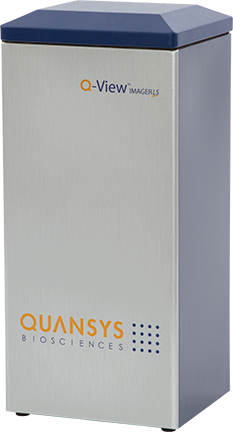

Q-View™ Imager LS

High Quality, Robust, Low-Cost Chemiluminescent Imaging

  • 1 to 5 minute read time
  • Reproducible & Sensitive
  • Robust & Small footprint
  • Imaging from the bottom of the plate for accurate reading
  • Provides high quality, chemiluminescent imaging for 96-well and 384-well plates
  • Supports Western blot platforms

Resolution: 18 Megapixel

Sensor Type: CMOS

Control: via Q-View Software

Power: 120-240 Volt AC

Optics: selected to minimize vignetting effect

Image Application: SBS plate format and maximum blots 3 × 4 3/4 in (7.6 x 12.1 cm)

Connection to PC: USB 2.0

Dimensions: 8 × 10 × 22 in (20.32 x 25.4 x 55.88 cm)

Run your Q-View Imager LS on most available lab computers* or purchase an optimized computer from Quansys.

Recommended Computer Requirements:

  • Operating System: Windows 10, 8 (32 or 64-bit)
  • RAM: 4+ GB
  • Processor: 2 or more processing cores

Minimum Computer Requirements:

  • Operating System: Windows 10, 8, 7 (32 or 64-bit)
  • RAM: 2 GB

I already have an Imager. Can I use that Instead?

We can't guarantee the results with using a third-party imager. However, we understand that it may be more convenient for some customers, so we've provided some guidelines for using third-party imagers.

Q-View™ Software

Easily Acquire & Analyze Large Amounts Of Data

Q-View™ Software is a powerful tool for quantitative analysis of Q-Plex™ Arrays and other chemiluminescent or IR based assays. This software program acquires, views, and analyzes microplate images. The software is optimized for use with the Q-View™ Imager LS, and also works well with a variety of other imaging systems. Harness the power of data to can unlock more quantitative data and gain a better understanding of your research.

*A Windows-based PC computer, running Q-View™ Software, is required to drive a Q-View™ Imager

Q-View™ Software Advantages

High Quality Imaging

Enhanced image capturing and processing of high quality images increases accuracy while reducing project size.

Well & Sample Assignment

Keep your work simple and organized by using the software to assign wells and sample of your plate.

Data Analysis

Capture high quality images of your assay and process them directly into the software for quick and easy results.

Reporting

Q-View™ Software automatically finds and aligns your spot to ensure a quick and accurate test.

Intuitive Interface

Q-Plex™ Technology was developed to be quick and easy to use. Have your lab running ELISAs in no time.

Multiplex ELISA Solutions

In addition to the Q-View™ Imager & Software, Boster provides Pre-made & Custom Multiplex Kits, Sample Testing Service, and Custom Multiplex Assay Development
