Human TIM-3/HAVCR2 PicoKine® Quick ELISA Kit

Introduction

Boster's Picokine™ Quick ELISA kits features the high sensitivity of Picokine™ ELISA kits and the significantly reduced assay run time. Now you can run the entire ELISA assay in less than 1.5 hours.

Compared to regular Picokine ELISA kits, the following sections in the datasheet are different:
1. kit components;
2. preparation before experiment;
3. assay protocol

Product Name

Human TIM-3/HAVCR2 PicoKine® Quick ELISA Kit

See all TIM-3 products

SKU/Catalog Number

FEK1644

Size

96 wells/kit, with removable strips.

*Question: How many samples can I assay/run in this kit?

Description

Human TIM-3/HAVCR2 PicoKine® Quick ELISA Kit (120 minutes, 96 Tests). Quantitate Human HAVCR2 in cell culture supernatants, serum and plasma (heparin, EDTA). Sensitivity: 10pg/ml. The brand Picokine indicates this is a premium quality ELISA kit. Each Picokine kit delivers precise quantification, high sensitivity, and excellent reproducibility. Only our most reliable and effective kits qualify as Picokine, guaranteeing top-tier results for your assays.

Storage & Handling

Store at 4°C for 6 months, at -20°C for 12 months. Avoid multiple freeze-thaw cycles (Ships with gel ice, can store for up to 3 days in room temperature. Freeze upon receiving.)

Cite This Product

Human TIM-3/HAVCR2 PicoKine® Quick ELISA Kit (Boster Biological Technology, Pleasanton CA, USA, Catalog # FEK1644)

Clonality of Antibodies

See Datasheet for details

Standard Protein

Expression system for standard: NS0; Immunogen sequence: S22-G202

Sensitivity

<10 pg/ml

Assay Range

31.2 pg/ml - 2,000 pg/ml

Standard Dilution Instructions

See datasheet of FEK1644 for more details

Cross Reactivity

There is no detectable cross-reactivity with other relevant proteins.

Reactive Species

FEK1644 is reactive to HAVCR2 in Human samples

Validated Sample Types

cell culture supernatants, serum and plasma (heparin, EDTA).

Application Guarantee

FEK1644 is guaranteed for ELISA in Human by Boster Guarantee

See how Boster Bio validate our ELISA kits: ELISA Validation Information

Background of TIM-3

Hepatitis A virus cellular receptor 2 (HAVCR2), also known as T-cell immunoglobulin and mucin-domain containing-3 (TIM-3), is a protein that in humans is encoded by the HAVCR2 gene. The protein encoded by this gene belongs to the immunoglobulin superfamily, and TIM family of proteins. CD4-positive T helper lymphocytes can be divided into types 1 (Th1) and 2 (Th2) on the basis of their cytokine secretion patterns. Th1 cells are involved in cell-mediated immunity to intracellular pathogens and delayed-type hypersensitivity reactions, whereas, Th2 cells are involved in the control of extracellular helminthic infections and the promotion of atopic and allergic diseases. This protein is a Th1-specific cell surface protein that regulates macrophage activation, and inhibits Th1-mediated auto- and alloimmune responses, and promotes immunological tolerance.

Kit Components

Catalog number	Description	Quantity
FEK1644-CAP	96-well plate precoated with anti-Human TIM-3 antibody	1
EK1644-ST	lyophilized recombinant Human TIM-3 standard	10 ng/tube
FEK1644-DA	Biotinylated anti-Human TIM-3 detection antibody (50x)	100 ul
-	Avidin-Biotin-Peroxidase Complex (30x)	400 µl
AR1106-1	Sample diluent	30 ml
AR1106-2	Antibody diluent	12 ml
-	Avidin-Biotin-Peroxidase Diluent	12 ml
AR1106-5	Wash Buffer (25x)	20 ml
AR1104	Color Developing Reagent (TMB)	10 ml
AR1105	Stop Solution	10 ml
PLA-SEA	Plate Sealers	4

*The kit components are not available for individual purchase.

Materials Required But Not Included In Kit

• Microplate Reader capable of reading absorbance at 450nm.
• Automated plate washer (optional).
• Pipettes and pipette tips capable of precisely dispensing 0.5 µl through 1 ml volumes of aqueous solutions.
• Multichannel pipettes are recommended for large amount of samples.
• Deionized or distilled water.
• 500ml graduated cylinders.
• Test tubes for dilution.

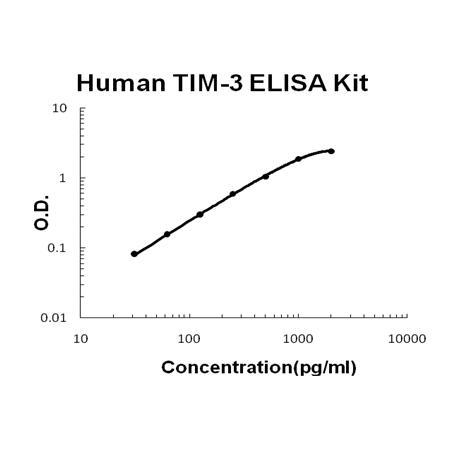

Validation Standard Curve O.D. At 450nm

Concentration (pg/ml)	0	31.25	62.5	125	250	500	1000	2000
O.D.	0.007	0.082	0.157	0.301	0.592	1.05	1.862	2.422

Data Example Images

Intra Assay Consistency & Inter Assay Consistency

We measured random samples of Human TIM-3/HAVCR2 PicoKine® Quick ELISA Kit within the same batch/lot to ensure the consistency of the kits' performances. ELISA intra assay consistency is measured using wells from the same plate/assay kit. ELISA inter assay consistency is measured using wells from different plates from the same batch production/lot.

Reproducibility

We ensure reproducibility by testing three samples with differing concentrations of TIM-3 in ELISA kits from four different production batches/lots.

Gene/Protein Information For HAVCR2 (Source: Uniprot.Org, NCBI)

Alternative Names

Hepatitis A virus cellular receptor 2; HAVcr-2; T-cell immunoglobulin and mucin domain-containing protein 3; TIMD-3; T-cell immunoglobulin mucin receptor 3; TIM-3; T-cell membrane protein 3; HAVCR2; TIM3; TIMD3 HAVCR2 CD366, HAVcr-2, KIM-3, SPTCL, TIM3, TIMD-3, TIMD3, Tim-3 hepatitis A virus cellular receptor 2 hepatitis A virus cellular receptor 2|T cell immunoglobulin mucin 3|T-cell immunoglobulin and mucin domain-containing protein 3|T-cell immunoglobulin mucin family member 3|T-cell immunoglobulin mucin receptor 3|T-cell membrane protein 3|kidney injury molecule-3

*if product is indicated to react with multiple species, protein info is based on the gene entry specified above in "species".
