Product Info Summary
| SKU: | EK0956 |
|---|---|
| Size: | 96 wells/kit, with removable strips. |
| Reactive Species: | Human |
| Application: | ELISA |
| Sample Types: | cell culture supernatants, serum and plasma (heparin, EDTA). |
Product info
Product Name
Human PDGF-BB ELISA Kit PicoKine®
SKU/Catalog Number
EK0956
Size
96 wells/kit, with removable strips.
*Question: How many samples can I assay/run in this kit?
Description
Human PDGF-BB ELISA Kit PicoKine® (96 Tests). Quantitate Human PDGF-BB in cell culture supernatants, serum and plasma (heparin, EDTA). Sensitivity: 10pg/ml . The brand Picokine indicates this is a premium quality ELISA kit. Each Picokine kit delivers precise quantification, high sensitivity, and excellent reproducibility. Only our most reliable and effective kits qualify as Picokine, guaranteeing top-tier results for your assays.
Storage & Handling
Store at 4°C for 6 months, at -20°C for 12 months. Avoid multiple freeze-thaw cycles (Ships with gel ice, can store for up to 3 days in room temperature. Freeze upon receiving.)
Cite This Product
Human PDGF-BB ELISA Kit PicoKine® (Boster Biological Technology, Pleasanton CA, USA, Catalog # EK0956)
Clonality of Antibodies
See Datasheet for details
Standard Protein
Expression system for standard: E.coli; Immunogen sequence: S82-T190
Sensitivity
<10 pg/ml
Assay Range
31.2 pg/ml - 2,000 pg/ml
Standard Dilution Instructions
See datasheet of EK0956 for more details
Cross-reactivity
There is no detectable cross-reactivity with other relevant proteins.
Reactive Species
EK0956 is reactive to PDGF-BB in Human samples
Validated Sample Types
cell culture supernatants, serum and plasma (heparin, EDTA).
Application Guarantee
EK0956 is guaranteed for ELISA in Human by Boster Guarantee
See how Boster Bio validate our ELISA kits: ELISA Validation Information
Background of PDGFB
Platelet-derived growth factor subunit B is a protein that in humans is encoded by the PDGFB gene. The protein encoded by this gene is a member of the platelet-derived growth factor family. This gene product can exist either as a homodimer (PDGF-BB) or as a heterodimer with the platelet-derived growth factor alpha polypeptide (PDGF-AB), where the dimers are connected by disulfide bonds. This gene is mapped to 22q13.1. Growth factor plays an essential role in the regulation of embryonic development, cell proliferation, cell migration, survival and chemotaxis. This gene plays an important role in wound healing. Signaling is modulated by the formation of heterodimers with PDGFA.
Kit Components
| Catalog Number | Description | Quantity |
|---|---|---|
| EK0956-CAP | Anti-Human PDGF-BB Pre-coated 96-well strip microplate | 1 |
| EK0956-ST | Human PDGF-BB Standard | 2 vials, 10 ng/tube |
| EK0956-DA | Human PDGF-BB Biotinylated antibody (100x) | 100ul |
| AR1103 | Avidin-Biotin-Peroxidase Complex (100x) | 100ul |
| AR1106-1 | Sample Diluent | 30ml |
| AR1106-2 | Antibody Diluent | 12ml |
| AR1106-3 | Avidin-Biotin-Peroxidase Diluent | 12ml |
| AR1104 | Color Developing Reagent (TMB) | 10ml |
| AR1105 | Stop Solution | 10ml |
| AR1106-5 | Wash Buffer (25x) | 20ml |
| PLA-SEA | Adhesive plate sealers | 4 |
*The kit components are not available for individual purchase.
Materials Required But Not Included In Kit
- Microplate Reader capable of reading absorbance at 450nm.
- Incubator.
- Automated plate washer (optional).
- Pipettes and pipette tips capable of precisely dispensing 0.5 µl through 1 ml volumes of aqueous solutions.
- Multichannel pipettes are recommended for large amount of samples.
- Deionized or distilled water.
- 500ml graduated cylinders.
- Test tubes for dilution.
Data Examples, Quality Control Data & Sample Dilution
Validation Standard Curve O.D. At 450nm
| Concentration (pg/ml) | 0 | 31.2 | 62.5 | 125 | 250 | 500 | 1000 | 2000 |
| O.D. | 0.026 | 0.056 | 0.074 | 0.119 | 0.198 | 0.439 | 0.954 | 1.971 |
Data Example Images
Click image to see more details

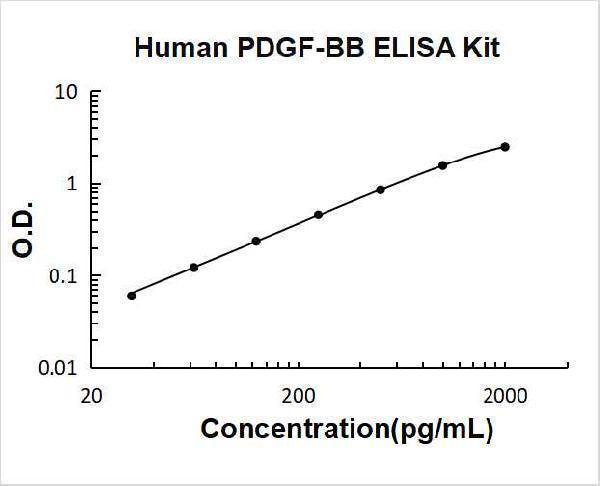

Human PDGF-BB PicoKine ELISA Kit standard curve
Recommended Sample Dilution Ratios
According to our internal validation assays using this ELISA kit, to detect PDGFB, Dilution ratio of 1:1, concentration in serum is around 1 ng/ml..
Intra Assay Consistency & Inter Assay Consistency
We measured random samples of Human PDGF-BB ELISA Kit PicoKine® within the same batch/lot to ensure the consistency of the kits' performances. ELISA intra assay consistency is measured using wells from the same plate/assay kit. ELISA inter assay consistency is measured using wells from different plates from the same batch production/lot.
| Intra-Assay Precision | Inter-Assay Precision | |||||
|---|---|---|---|---|---|---|
| Sample | 1 | 2 | 3 | 1 | 2 | 3 |
| n | 16 | 16 | 16 | 24 | 24 | 24 |
| Mean (pg/ml) | 94 | 199 | 788 | 88 | 194 | 725 |
| Standard deviation | 4.13 | 12.53 | 39.4 | 5.09 | 12.80 | 36.25 |
| CV (%) | 4.4% | 6.6% | 5% | 5.9% | 6.6% | 5% |
Reproducibility
We ensure reproducibility by testing three samples with differing concentrations of PDGFB in ELISA kits from four different production batches/lots.
| Lots | Lot 1 (pg/ml) | Lot 2 (pg/ml) | Lot 3 (pg/ml) | Lot 4 (pg/ml) | Mean (pg/ml) | Standard Deviation | CV (%) |
|---|---|---|---|---|---|---|---|
| Sample 1 | 94 | 89 | 99 | 93 | 93 | 3.56 | 3.8% |
| Sample 2 | 199 | 217 | 232 | 218 | 216 | 11.71 | 5.4% |
| Sample 3 | 788 | 792 | 795 | 811 | 796 | 8.73 | 1% |
Protein Target Info & Infographic
Gene/Protein Information For PDGF-BB (Source: Uniprot.Org, NCBI)
Gene Name
PDGF-BB
Full Name
Platelet-derived growth factor subunit B
Weight
27.283kDa
Superfamily
PDGF/VEGF growth factor family
Alternative Names
Platelet-derived growth factor subunit B; PDGF subunit B; PDGF-2; Platelet-derived growth factor B chain; Platelet-derived growth factor beta polypeptide; Proto-oncogene c-Sis; INN: Becaplermin; PDGFB; PDGF2; SIS PDGFB IBGC5, PDGF-2, PDGF2, SIS, SSV, c-sis platelet derived growth factor subunit B platelet-derived growth factor subunit B|PDGF subunit B|PDGF, B chain|becaplermin|epididymis secretory sperm binding protein|platelet-derived growth factor 2|platelet-derived growth factor B chain|platelet-derived growth factor beta polypeptide (simian sarcoma viral (v-sis) oncogene homolog)|platelet-derived growth factor, beta polypeptide (oncogene SIS)|proto-oncogene c-Sis
*if product is indicated to react with multiple species, protein info is based on the gene entry specified above in "species".For more info on PDGF-BB, check out the PDGF-BB Infographic
We have 30,000+ of these available, one for each gene! check them out.
In this infographic you will see the following information for PDGF-BB: database IDs, super-family, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact us [email protected].
Specific Publications For Human PDGF-BB ELISA Kit PicoKine® (EK0956)
Loading publications
Recommended Resources
Here are featured tools and databases that you might find useful.
- Boster's Pathways Library
- Protein Databases
- Bioscience Research Protocol Resources
- Data Processing & Analysis Software
- Photo Editing Software
- Scientific Literature Resources
- Research Paper Management Tools
- Molecular Biology Software
- Primer Design Tools
- Bioinformatics Tools
- Phylogenetic Tree Analysis
Customer Reviews
Have you used Human PDGF-BB ELISA Kit PicoKine®?
Submit a review and receive an Amazon gift card.
- $30 for a review with an image
0 Reviews For Human PDGF-BB ELISA Kit PicoKine®
Customer Q&As
Have a question?
Find answers in Q&As, reviews.
Can't find your answer?
Submit your question
6 Customer Q&As for Human PDGF-BB ELISA Kit PicoKine®
Question
Q: Can PDGFB ELISA Kits be used with tissue homogenates (or other non-validated sample types)?
Verified Customer
Verified customer
Asked: 2020-01-25
Answer
A: Unfortunately, Boster Bio has not routinely validated tissue homogenates as a sample type for ELISA kits. This does not mean that ELISA kits are not valid for other sample types than we have tested: it means further investigation is a must. One will need to perform a spike and recovery study to determine if an unvalidated sample type will work with a particular kit. To perform a spike and recovery experiment, one should divide a sample into two aliquots. In one of the aliquots, the user should spike in a known amount of the kit standard. a dilution series is performed comparing the spiked versus the unspiked sample. Generally, samples with expected recovery and linearity between 80-120% are considered acceptable. This method can be used to validate any sample type that has not been assessd by Boster Bio. for a more detailed spike and recovery protocol, please contact technical support.
Note: acceptable ranges should be determined individually by each laboratory. Additionally, technical support can help determine if a buffer component is not compatible with a given ELISA kit. please check the Citations tab on the product webpage for peer-reviewed papers utilizing a wide range of sample types. We also have an innovator's reward program where if the user validates our ELISA kits in applications or samples previously not validated by Boster Bio or other users, and share such information with us by submit a review, we will reward the user's efforts with a free antibody or ELISA kit from our catalog. Biocompare.com will also give $20 Amazon giftcard as an additional reward, if the review is submitted there as well.
Boster Scientific Support
Answered: 2020-01-25
Question
Q: how long can samples (cell cultures, serum, and plasma) be stored and still be stable for measurement PDGFB using the EK0956 Human PDGFB Picokine® ELISA Kit?
Verified Customer
Verified customer
Asked: 2019-06-11
Answer
A: Boster Bio does not evaluate sample stability. Variations in sample collection, processing, and storage may affect the stabilityof samples. It is recommend to assay sample on-stat collection when possible, or aliquot into single use volumes and store samples frozen. avoid repetitive freeze-thaw cycles with the stored samples to avoid protein degradation.
Boster Scientific Support
Answered: 2019-06-11
Question
Q: is it okay to use citrate plasma as samples in Human PDGFB Picokine® ELISA Kit (Catalog # EK0956)?
Verified Customer
Verified customer
Asked: 2019-05-19
Answer
A: Chelating agents such as EDTA, Heparin and Citrate can irreversibly bind metal ions from the functional domain of PDGFB causing disruption of its protein structure. PDGFB may be denatured as a result and may compromise the assay's measurements. The chilating sites could also be too close to the epitopes required for detection and block the antigen antibody reaction. We have tested the PDGFB ELISA, treating samples with different anticoagulants and decided that heparin or EDTA can be used for treatment of blood/plasma samples. Do not use other anticoagulents when collecting samples.
Boster Scientific Support
Answered: 2019-05-19
Question
About Human PDGF-BB PicoKine
Verified Customer
Verified customer
Asked: 2018-08-06
Answer
Plasma (Citrate) hasn't been validated by our lab technicians. We suggest the customer run a pilot test for Plasma (Citrate). EK0956 can be used for Platelet Rich Plasma samples.
Boster Scientific Support
Answered: 2018-08-06
Question
Q: if the enzyme conjugated PDGFB antibodies are mixed with the substrate, will that change the substrate into the enzymatic reaction product? Or the enzyme function is only activated when the antibody is attached with the PDGFB antigen?
Verified Customer
Verified customer
Asked: 2018-04-19
Answer
A: The enzyme is always active. Avoid contaminating the substrate with enzyme prior to the incubation otherwise it compromises the assay with false positive signal.
Boster Scientific Support
Answered: 2018-04-19
Question
Q: Are Boster Bio recombinant proteins and antibodies sterile?
Verified Customer
Verified customer
Asked: 2017-09-23
Answer
A: although the vials are bottled using aseptic techniques, heat-treated vials, and sterile stock solutions, they are not considered or guaranteed to be sterile. If sterile material is a must for an experiment, the material can be filtered through a 0.2 micron filter designed for use with biological fluids.
Boster Scientific Support
Answered: 2017-09-23
