Product Info Summary
| SKU: | EK1353 |
|---|---|
| Size: | 96 wells/kit, with removable strips. |
| Reactive Species: | Human |
| Application: | ELISA |
| Sample Types: | cell culture supernatants, cell lysates, serum and plasma (heparin, EDTA). |
Product info
Product Name
Human Neuropilin-1 ELISA Kit PicoKine®
View all Neuropilin-1 ELISA kits
SKU/Catalog Number
EK1353
Size
96 wells/kit, with removable strips.
*Question: How many samples can I assay/run in this kit?
Description
Human Neuropilin-1 ELISA Kit PicoKine® (96 Tests). Quantitate Human NRP1 in cell culture supernatants, cell lysates, serum and plasma (heparin, EDTA). Sensitivity: 10pg/ml. The brand Picokine indicates this is a premium quality ELISA kit. Each Picokine kit delivers precise quantification, high sensitivity, and excellent reproducibility. Only our most reliable and effective kits qualify as Picokine, guaranteeing top-tier results for your assays.
Storage & Handling
Store at 4°C for 6 months, at -20°C for 12 months. Avoid multiple freeze-thaw cycles (Ships with gel ice, can store for up to 3 days in room temperature. Freeze upon receiving.)
Cite This Product
Human Neuropilin-1 ELISA Kit PicoKine® (Boster Biological Technology, Pleasanton CA, USA, Catalog # EK1353)
Clonality of Antibodies
See Datasheet for details
Standard Protein
Expression system for standard: NS0; Immunogen sequence: F22-K644
Sensitivity
<20 pg/ml
Assay Range
0.78 ng/ml - 50 ng/ml
Standard Dilution Instructions
See datasheet of EK1353 for more details
Cross-reactivity
There is no detectable cross-reactivity with other relevant proteins.
Reactive Species
EK1353 is reactive to NRP1 in Human samples
Validated Sample Types
cell culture supernatants, cell lysates, serum and plasma (heparin, EDTA).
Application Guarantee
EK1353 is guaranteed for ELISA in Human by Boster Guarantee
See how Boster Bio validate our ELISA kits: ELISA Validation Information
Background of Neuropilin-1
NRP1 (Neuropilin 1) also known as NP1, NRP, BDCA4 or VEGF165R, is a membrane-bound coreceptor to a tyrosine kinase receptor for both vascular endothelial growth factor (VEGF) and semaphorin family members. NRP1 plays versatile roles in angiogenesis, axon guidance, cell survival, migration, and invasion. By somatic cell hybrid analysis, the NRP1 gene was mapped to chromosome 10. NRP1 bounds PGF1 with lower affinity. NRP1-mediated interactions are a necessary element in the initiation of the primary immune response and offer another example, like that of agrin, of a molecule shared by neurologic and immunologic synapses. After T-cell contact with DC, T-cell NRP1 colocalized with CD3 in the immunologic synapse and, sometimes, also at the opposite pole of the T cell. Soluble NRP1 interacts in a homophilic fashion with NRP1 on both DC and T cells, and this binding can be inhibited by blocking antibodies to NRP1. Furthermore, selective NRP1 inhibition in this model suppressed neovascular formation substantially.
Kit Components
| Catalog Number | Description | Quantity |
|---|---|---|
| EK1353-CAP | Anti-Human NRP1 Pre-coated 96-well strip microplate | 1 |
| EK1353-ST | Human NRP1 Standard | 2 vials, 50 ng/tube |
| EK1353-DA | Human NRP1 Biotinylated antibody (100x) | 100ul |
| AR1103 | Avidin-Biotin-Peroxidase Complex (100x) | 100ul |
| AR1106-1 | Sample Diluent | 30ml |
| AR1106-2 | Antibody Diluent | 12ml |
| AR1106-3 | Avidin-Biotin-Peroxidase Diluent | 12ml |
| AR1104 | Color Developing Reagent (TMB) | 10ml |
| AR1105 | Stop Solution | 10ml |
| AR1106-5 | Wash Buffer (25x) | 20ml |
| PLA-SEA | Adhesive plate sealers | 4 |
*The kit components are not available for individual purchase.
Materials Required But Not Included In Kit
- Microplate Reader capable of reading absorbance at 450nm.
- Incubator.
- Automated plate washer (optional).
- Pipettes and pipette tips capable of precisely dispensing 0.5 µl through 1 ml volumes of aqueous solutions.
- Multichannel pipettes are recommended for large amount of samples.
- Deionized or distilled water.
- 500ml graduated cylinders.
- Test tubes for dilution.
Data Examples, Quality Control Data & Sample Dilution
Validation Standard Curve O.D. At 450nm
| Concentration (ng/ml) | 0 | 0.78 | 1.56 | 3.12 | 6.25 | 12.5 | 25 | 50 |
| O.D. | 0.016 | 0.137 | 0.269 | 0.476 | 0.846 | 1.395 | 1.808 | 2.043 |
Data Example Images
Click image to see more details

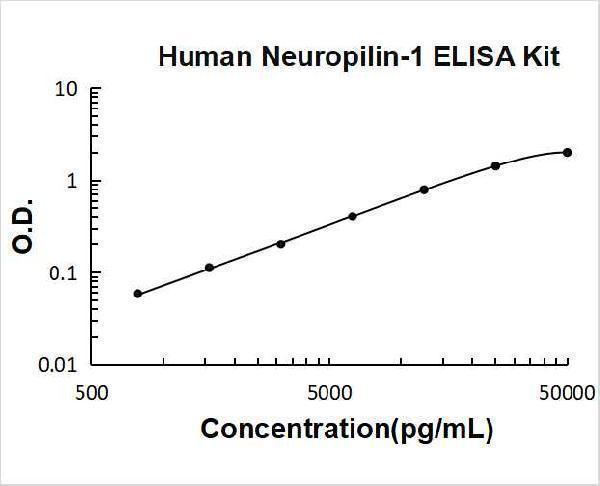

Human Neuropilin-1 PicoKine ELISA Kit standard curve
Recommended Sample Dilution Ratios
According to our internal validation assays using this ELISA kit, to detect Neuropilin-1, Dilution ratio of 1:20, concentration in serum is around 120 ng/ml..
Some articles we found to cite concentrations of Neuropilin-1 in samples: 20068394 (Pubmed IDs).
Intra Assay Consistency & Inter Assay Consistency
We measured random samples of Human Neuropilin-1 ELISA Kit PicoKine® within the same batch/lot to ensure the consistency of the kits' performances. ELISA intra assay consistency is measured using wells from the same plate/assay kit. ELISA inter assay consistency is measured using wells from different plates from the same batch production/lot.
| Intra-Assay Precision | Inter-Assay Precision | |||||
|---|---|---|---|---|---|---|
| Sample | 1 | 2 | 3 | 1 | 2 | 3 |
| n | 16 | 16 | 16 | 24 | 24 | 24 |
| Mean (pg/ml) | 1578 | 4783 | 20934 | 1501 | 4697 | 20813 |
| Standard deviation | 69.43 | 316.67 | 921.09 | 90.06 | 371.06 | 1207.15 |
| CV (%) | 4.4% | 6.6% | 4.4% | 6% | 7.9% | 5.8% |
Reproducibility
We ensure reproducibility by testing three samples with differing concentrations of Neuropilin-1 in ELISA kits from four different production batches/lots.
| Lots | Lot 1 (pg/ml) | Lot 2 (pg/ml) | Lot 3 (pg/ml) | Lot 4 (pg/ml) | Mean (pg/ml) | Standard Deviation | CV (%) |
|---|---|---|---|---|---|---|---|
| Sample 1 | 1578 | 1405 | 1534 | 1693 | 1552 | 103.06 | 6.6% |
| Sample 2 | 4783 | 4689 | 4619 | 4324 | 4603 | 171.67 | 3.7% |
| Sample 3 | 20934 | 22048 | 20450 | 19219 | 20662 | 1015.15 | 4.9% |
Protein Target Info & Infographic
Gene/Protein Information For NRP1 (Source: Uniprot.Org, NCBI)
Gene Name
NRP1
Full Name
Neuropilin-1
Weight
103134 MW
Superfamily
neuropilin family
Alternative Names
Neuropilin-1;Vascular endothelial cell growth factor 165 receptor;CD304;NRP1;NRP, VEGF165R; NRP1 BDCA4, CD304, NP1, NRP, VEGF165R neuropilin 1 neuropilin-1|transmembrane receptor|vascular endothelial cell growth factor 165 receptor
*if product is indicated to react with multiple species, protein info is based on the gene entry specified above in "species".For more info on NRP1, check out the NRP1 Infographic
We have 30,000+ of these available, one for each gene! check them out.
In this infographic you will see the following information for NRP1: database IDs, super-family, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact us [email protected].
Specific Publications For Human Neuropilin-1 ELISA Kit PicoKine® (EK1353)
Hello CJ!
EK1353 has been cited in 1 publications:
*The publications in this section are manually curated by our staff scientists. They may differ from Bioz's machine gathered results. Both are accurate. If you find a publication citing this product but is missing from this list, please let us know we will issue you a thank-you coupon.
Elevated expression levels of serum insulin‐like growth factor‐1, tumor necrosis factor‐α and vascular endothelial growth factor 165 might exacerbate type 2 diabetic nephropathy
Recommended Resources
Here are featured tools and databases that you might find useful.
- Boster's Pathways Library
- Protein Databases
- Bioscience Research Protocol Resources
- Data Processing & Analysis Software
- Photo Editing Software
- Scientific Literature Resources
- Research Paper Management Tools
- Molecular Biology Software
- Primer Design Tools
- Bioinformatics Tools
- Phylogenetic Tree Analysis
Customer Reviews
Have you used Human Neuropilin-1 ELISA Kit PicoKine®?
Submit a review and receive an Amazon gift card.
- $30 for a review with an image
0 Reviews For Human Neuropilin-1 ELISA Kit PicoKine®
Customer Q&As
Have a question?
Find answers in Q&As, reviews.
Can't find your answer?
Submit your question
10 Customer Q&As for Human Neuropilin-1 ELISA Kit PicoKine®
Question
Q: Can Neuropilin-1 ELISA Kits be used with tissue homogenates (or other non-validated sample types)?
Verified Customer
Verified customer
Asked: 2020-10-11
Answer
A: Unfortunately, Boster Bio has not routinely validated tissue homogenates as a sample type for ELISA kits. This does not mean that ELISA kits are not valid for other sample types than we have tested: it means further investigation is required. One will need to perform a spike and recovery study to determine if an unvalidated sample type will work with a particular kit. To perform a spike and recovery experiment, one should divide a sample into two aliquots. In one of the aliquots, the user should spike in a known amount of the kit standard. a dilution series is performed comparing the spiked versus the unspiked sample. Generally, samples with expected recovery and linearity between 80-120% are considered acceptable. This method can be used to validate any sample type that has not been evaluated by Boster Bio. for a more detailed spike and recovery protocol, please contact technical support.
Note: acceptable ranges should be determined individually by each laboratory. Additionally, technical support can help determine if a buffer component is not compatible with a given ELISA kit. please view the Citations tab on the product webpage for peer-reviewed papers utilizing a wide range of sample types. We also have an innovator's reward program where if the user validates our ELISA kits in applications or samples previously not validated by Boster Bio or other users, and share such information with us by submit a review, we will reward the user's efforts with a free antibody or ELISA kit from our catalog. Biocompare.com will also give $20 Amazon giftcard as an additional reward, if the review is submitted there as well.
Boster Scientific Support
Answered: 2020-10-11
Question
Q: how much samples can be assayed in a Picokine® ELISA Kit?
R. Mitchell
Verified customer
Asked: 2020-09-21
Answer
A: The Picokine® ELISA Kits will generally run a 7-point standard curve, non-specific binding wells, and 39 samples in duplicate. this may might differ by kit so please refer to each datasheet for details.
Boster Scientific Support
Answered: 2020-09-21
Question
Q: we need your recommendation regarding the dilution ratio of serum samples for detection of Neuropilin-1 in Human cell lysates? I am trying to measure a a number of analytes and it requires 100ul of diluted samples for each well. We have limited sample volumes so we like to dilute as much as possible.
P. Sunder
Verified customer
Asked: 2020-06-10
Answer
A: unable to know the physiological or pathological context of your samples we cannot recommend a dilution ratio without performing a pilot test with your samples. Here is how you can perform a pilot study on your own: perform a serial dilution of your samples on the Neuropilin-1 ELISA kit to make sure you have a linear ascending curve followed by a plateau, which signifies the samples saturating the detection limit of the kit. Then you can pick the dilution ratios from samples in the linear part of the curve as your experimental dilution ratio.
If you are interested in using our ELISA service, you can also send us your sample and we will take care of everything for you. You can check our service details here: bosterbio.com/services/assay-services/ELISA-testing-service
Since you mentioned you have limited samples, our cost effective multiplex ELISA service would fit perfectly for your needs, where we can generate dozens of data points using as little as 25ul sample volume. Information on this service is also in the above link.
Boster Scientific Support
Answered: 2020-06-10
Question
Q: how to thaw whole blood sample for Neuropilin-1 ELISA after freezing?
R. Tiwari
Verified customer
Asked: 2020-05-26
Answer
A: we do not recommend freezing and thaw whole blood. erythrocytes are fragile and, if frozen and thawed, will undergo hemolysis rendering the samples useless. To keep your blood samples to test Neuropilin-1 for a later time, you should let the blood clot in glass tubes and separate the serum to freeze for later analysis.
Boster Scientific Support
Answered: 2020-05-26
Question
What is the range of NRP1 level detected in serum samples (healthy human ) using EK1353 kit?
Verified customer
Asked: 2020-01-03
Answer
We can only guarantee the assay range that is shown on our product page for the Human Neuropilin-1 ELISA Kit PicoKine™ EK1353. You can always do pilot tests and test other ranges.
Boster Scientific Support
Answered: 2020-01-27
Question
Q: how to analyze ELISA data? I have obtained Neuropilin-1 level in cell lysates.
G. Gandhi
Verified customer
Asked: 2019-11-14
Answer
A: we recommend you this article on ELISA data analysis. bosterbio.com/ELISA-data-analysis-instructions. Boster also provides a free tool that you can use to analyze ELISA data. bosterbio.com/biology-research-tools/ELISA-data-analysis-online
Boster Scientific Support
Answered: 2019-11-14
Question
Q: how long can samples (cell cultures, serum, and plasma) be stored and still be stable for analysis Neuropilin-1 using the EK1353 Human Neuropilin-1 Picokine® ELISA Kit?
Verified Customer
Verified customer
Asked: 2019-11-12
Answer
A: Boster Bio does not evaluate sample stability. Variations in sample collection, processing, and storage may affect the stabilityof samples. It is recommend to assay sample on priority basis collection when possible, or aliquot into single use volumes and store samples frozen. limit repetitive freeze-thaw cycles with the stored samples to avoid protein degradation.
Boster Scientific Support
Answered: 2019-11-12
Question
Q: What is the optimal O.D. value for Neuropilin-1 ELISA kit? I used your Neuropilin-1 ELISA on serum samples. For my positive control, I received an O.D. value of 0.826, while my negative control received a value of 0.136. I obtained both of these controls from the ELISA kit, where your kit's typical data shows O.D. values much higher than my positive control and your background is lower. My samples O.D. values are around 0.225 and the highest is only 0.357. can I consider these samples contain Neuropilin-1 even though the O.D. values are not very high?
C. Williams
Verified customer
Asked: 2019-02-03
Answer
A: The absolute O.D. values may change according to incubation time. The more you incubate the higher the O.D. values are going to be. an important assessment should be is whether your sample O.D. values are statistically significantly higher than your blank values. in the above example, you could extend your development time in the substrate incubation step to obtain higher O.D. values, as long as your negative controls' O.D. values are not increasing faster in relation to your positive controls. typically, a sample with O.D. value 2 standard deviations higher than your negative controls can be considered positive. We calculate the sensitivity of this ELISA kit by changeing cutoff O.D. value, calculated as the average of 20 negative controls plus 2 standard deviations of the 20 negative controls, into a concentration. in other words, when we claim this Neuropilin-1 ELISA kit to have sensitivity of 10pg/ml, that means the minimum amount of Neuropilin-1 that can be declared/interpreted as positive by the above standard is 10pg/ml.
Boster Scientific Support
Answered: 2019-02-03
Question
Q: if the enzyme conjugated Neuropilin-1 antibodies are mixed with the substrate, will that change the substrate into the enzymatic reaction product? Or the enzyme function is only activated when the antibody is attached with the Neuropilin-1 antigen?
L. Li
Verified customer
Asked: 2018-09-01
Answer
A: The enzyme is always active. Avoid contaminating the substrate with enzyme prior to the incubation otherwise it compromises the assay with false positive signal.
Boster Scientific Support
Answered: 2018-09-01
Question
Q: Are Boster Bio recombinant proteins and antibodies sterile?
Verified Customer
Verified customer
Asked: 2016-05-17
Answer
A: although the vials are bottled using aseptic techniques, heat-treated vials, and sterile stock solutions, they are not considered or guaranteed to be sterile. If sterile material is required for an experiment, the material can be filtered through a 0.2 micron filter designed for use with biological fluids.
Boster Scientific Support
Answered: 2016-05-17
