Anti-Tripeptidyl peptidase II/TPPII/TPP2 Antibody Picoband®

Figure 1. Western blot analysis of Tripeptidyl peptidase II/TPPII/TPP2 using anti-Tripeptidyl peptidase II/TPPII/TPP2 antibody (A06668-2).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Jurkat whole cell lysates,
Lane 2: human Hela whole cell lysates,
Lane 3: human HepG2 whole cell lysates,
Lane 4: human HEL whole cell lysates,
Lane 5: human K562 whole cell lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-Tripeptidyl peptidase II/TPPII/TPP2 antigen affinity purified polyclonal antibody (Catalog # A06668-2) at 0.25 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for Tripeptidyl peptidase II/TPPII/TPP2 at approximately 138 kDa. The expected band size for Tripeptidyl peptidase II/TPPII/TPP2 is at 138 kDa.

Figure 2. Western blot analysis of Tripeptidyl peptidase II/TPPII/TPP2 using anti-Tripeptidyl peptidase II/TPPII/TPP2 antibody (A06668-2).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: rat liver tissue lysates,
Lane 2: rat testis tissue lysates,
Lane 3: rat brain tissue lysates,
Lane 4: rat RH35 whole cell lysates,
Lane 5: mouse liver tissue lysates,
Lane 6: mouse testis tissue lysates,
Lane 7: mouse brain tissue lysates,
Lane 8: mouse NIH/3T3 whole cell lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-Tripeptidyl peptidase II/TPPII/TPP2 antigen affinity purified polyclonal antibody (Catalog # A06668-2) at 0.25 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for Tripeptidyl peptidase II/TPPII/TPP2 at approximately 138 kDa. The expected band size for Tripeptidyl peptidase II/TPPII/TPP2 is at 138 kDa.

Figure 3. IHC analysis of Tripeptidyl peptidase II/TPPII/TPP2 using anti-Tripeptidyl peptidase II/TPPII/TPP2 antibody (A06668-2).
Tripeptidyl peptidase II/TPPII/TPP2 was detected in a paraffin-embedded section of human colorectal adenocarcinoma tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-Tripeptidyl peptidase II/TPPII/TPP2 Antibody (A06668-2) overnight at 4°C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB as the chromogen.

Figure 4. IHC analysis of Tripeptidyl peptidase II/TPPII/TPP2 using anti-Tripeptidyl peptidase II/TPPII/TPP2 antibody (A06668-2).
Tripeptidyl peptidase II/TPPII/TPP2 was detected in a paraffin-embedded section of human liver cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-Tripeptidyl peptidase II/TPPII/TPP2 Antibody (A06668-2) overnight at 4°C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB as the chromogen.

Figure 5. IHC analysis of Tripeptidyl peptidase II/TPPII/TPP2 using anti-Tripeptidyl peptidase II/TPPII/TPP2 antibody (A06668-2).
Tripeptidyl peptidase II/TPPII/TPP2 was detected in a paraffin-embedded section of human lung cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-Tripeptidyl peptidase II/TPPII/TPP2 Antibody (A06668-2) overnight at 4°C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB as the chromogen.

Figure 6. IF analysis of Tripeptidyl peptidase II/TPPII/TPP2 using anti-Tripeptidyl peptidase II/TPPII/TPP2 antibody (A06668-2).
Tripeptidyl peptidase II/TPPII/TPP2 was detected in an immunocytochemical section of A549 cells. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent (AR0022) for 15 mins. The cells were blocked with 10% goat serum. And then incubated with 5 μg/mL rabbit anti-Tripeptidyl peptidase II/TPPII/TPP2 Antibody (A06668-2) overnight at 4°C. DyLight®488 Conjugated Goat Anti-Rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.

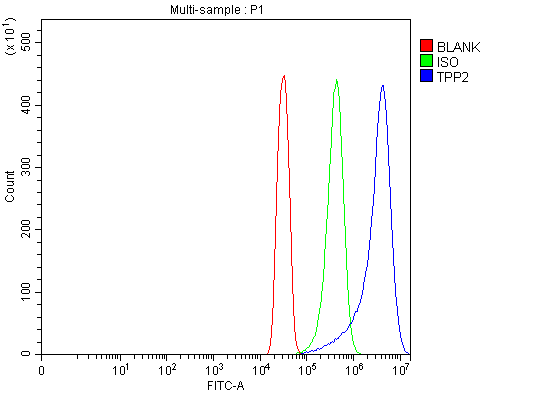

Figure 7. Flow Cytometry analysis of SiHa cells using anti-Tropomyosin 2/TPM2 antibody (A06668-2).
Overlay histogram showing SiHa cells stained with A06668-2 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-Tropomyosin 2/TPM2 Antibody (A06668-2, 1 μg/1x10⁶ cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10 μg/1x10⁶ cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1 μg/1x10⁶) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
