Product Info Summary
| SKU: | A07659-1 |
|---|---|
| Size: | 100 μg/vial |
| Reactive Species: | Human, Monkey, Mouse, Rat |
| Host: | Rabbit |
| Application: | ELISA, IF, IHC, ICC, WB |
Customers Who Bought This Also Bought
Product info
Product Name
Anti-TIMM8A/DDP Antibody Picoband®
SKU/Catalog Number
A07659-1
Size
100 μg/vial
Form
Lyophilized
Description
Boster Bio Anti-TIMM8A/DDP Antibody Picoband® catalog # A07659-1. Tested in ELISA, IF, IHC, ICC, WB applications. This antibody reacts with Human, Monkey, Mouse, Rat. The brand Picoband indicates this is a premium antibody that guarantees superior quality, high affinity, and strong signals with minimal background in Western blot applications. Only our best-performing antibodies are designated as Picoband, ensuring unmatched performance.
Storage & Handling
Store at -20˚C for one year from date of receipt. After reconstitution, at 4˚C for one month. It can also be aliquotted and stored frozen at -20˚C for six months. Avoid repeated freeze-thaw cycles.
Cite This Product
Anti-TIMM8A/DDP Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # A07659-1)
Host
Rabbit
Contents
Each vial contains 4mg Trehalose, 0.9mg NaCl, 0.2mg Na2HPO4, 0.01mg NaN3.
Clonality
Polyclonal
Isotype
Rabbit IgG
Immunogen
E.coli-derived human TIMM8A/DDP recombinant protein (Position: A14-D97).
*Blocking peptide can be purchased. Costs vary based on immunogen length. Contact us for pricing.
Cross-reactivity
No cross-reactivity with other proteins.
Reactive Species
A07659-1 is reactive to TIMM8A in Human, Monkey, Mouse, Rat
Reconstitution
Add 0.2ml of distilled water will yield a concentration of 500ug/ml.
Observed Molecular Weight
13-14 kDa
Calculated molecular weight
157578 MW
Background of TIMM8A
Mitochondrial import inner membrane translocase subunit Tim8 A, also known as Deafness-dystonia peptide or protein is an enzyme that in humans is encoded by the TIMM8A gene. This translocase is involved in the import and insertion of hydrophobic membrane proteins from the cytoplasm into the mitochondrial inner membrane. The gene is mutated in Mohr-Tranebjaerg syndrome/Deafness Dystonia Syndrome (MTS/DDS) and it is postulated that MTS/DDS is a mitochondrial disease caused by a defective mitochondrial protein import system. Defects in this gene also cause Jensen syndrome; an X-linked disease with opticoacoustic nerve atrophy and muscle weakness. This protein, along with TIMM13, forms a 70 kDa heterohexamer. Alternative splicing results in multiple transcript variants encoding distinct isoforms.
Antibody Validation
Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.
Application & Images
Applications
A07659-1 is guaranteed for ELISA, IF, IHC, ICC, WB Boster Guarantee
Assay Dilutions Recommendation
The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.
Western blot, 0.25-0.5μg/ml, Human, Mouse, Rat, Monkey
Immunohistochemistry (Paraffin-embedded Section), 2-5μg/ml, Human, Rat
Immunocytochemistry/Immunofluorescence, 5μg/ml, Human
ELISA, 0.1-0.5μg/ml, -
Positive Control
WB: human HELA whole cell, human MCF-7 whole cell, human PC-3 whole cell, human K562 whole cell, human HEPG2 whole cell, monkey COS-7 whole cell, monkey kidney tissue, rat brain tissue, rat liver tissue, mouse liver tissue
IHC: human melanoma tissue, human testicular cancer tissue, human lung cancer tissue, human tonsil cancer tissue, human bladder cancer tissue, human gastric cancer tissue, human ovarian cancer tissue, rat brain tissue
ICC/IF: A431 cell
FCM: A431 cell
Validation Images & Assay Conditions
Click image to see more details

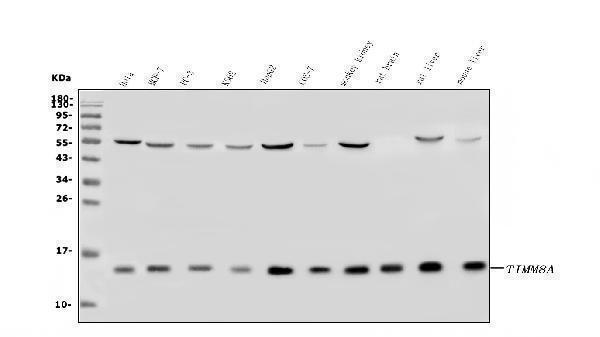

Figure 1. Western blot analysis of TIMM8A/DDP using anti-TIMM8A/DDP antibody (A07659-1).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: human HELA whole cell lysates,
Lane 2: human MCF-7 whole cell lysates,
Lane 3: human PC-3 whole cell lysates,
Lane 4: human K562 whole cell lysates,
Lane 5: human HEPG2 whole cell lysates,
Lane 6: monkey COS-7 whole cell lysates,
Lane 7: monkey kidney tissue lysates,
Lane 8: rat brain tissue lysates,
Lane 9: rat liver tissue lysates,
Lane 10: mouse liver tissue lysates.
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-TIMM8A/DDP antigen affinity purified polyclonal antibody (Catalog # A07659-1) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for TIMM8A/DDP at approximately 13-14KD. The expected band size for TIMM8A/DDP is at 11KD.
Click image to see more details
Figure 10. Flow Cytometry analysis of A431 cells using anti-TIMM8A/DDP antibody (A07659-1).
Overlay histogram showing A431 cells stained with A07659-1 (Blue line).The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-TIMM8A/DDP Antibody (A07659-1, 1μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x106) used under the same conditions. Unlabelled sample (Red line) was also used as a control.
Click image to see more details
Figure 2. IHC analysis of TIMM8A/DDP using anti-TIMM8A/DDP antibody (A07659-1).
TIMM8A/DDP was detected in paraffin-embedded section of human melanoma tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2μg/ml rabbit anti-TIMM8A/DDP Antibody (A07659-1) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Click image to see more details
Figure 3. IHC analysis of TIMM8A/DDP using anti-TIMM8A/DDP antibody (A07659-1).
TIMM8A/DDP was detected in paraffin-embedded section of human testicular cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2μg/ml rabbit anti-TIMM8A/DDP Antibody (A07659-1) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Click image to see more details
Figure 4. IHC analysis of TIMM8A/DDP using anti-TIMM8A/DDP antibody (A07659-1).
TIMM8A/DDP was detected in paraffin-embedded section of human lung cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2μg/ml rabbit anti-TIMM8A/DDP Antibody (A07659-1) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Click image to see more details
Figure 5. IHC analysis of TIMM8A/DDP using anti-TIMM8A/DDP antibody (A07659-1).
TIMM8A/DDP was detected in paraffin-embedded section of human tonsil cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2μg/ml rabbit anti-TIMM8A/DDP Antibody (A07659-1) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Click image to see more details
Figure 6. IHC analysis of TIMM8A/DDP using anti-TIMM8A/DDP antibody (A07659-1).
TIMM8A/DDP was detected in paraffin-embedded section of human bladder cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2μg/ml rabbit anti-TIMM8A/DDP Antibody (A07659-1) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Click image to see more details
Figure 7. IHC analysis of TIMM8A/DDP using anti-TIMM8A/DDP antibody (A07659-1).
TIMM8A/DDP was detected in paraffin-embedded section of human gastric cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2μg/ml rabbit anti-TIMM8A/DDP Antibody (A07659-1) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Click image to see more details
Figure 8. IHC analysis of TIMM8A/DDP using anti-TIMM8A/DDP antibody (A07659-1).
TIMM8A/DDP was detected in paraffin-embedded section of human ovarian cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2μg/ml rabbit anti-TIMM8A/DDP Antibody (A07659-1) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Click image to see more details
Figure 9. IF analysis of TIMM8A/DDP using anti-TIMM8A/DDP antibody (A07659-1).
TIMM8A/DDP was detected in immunocytochemical section of A431 cells. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent (AR0022) for 15 mins. The cells were blocked with 10% goat serum. And then incubated with 5μg/mL rabbit anti-TIMM8A/DDP Antibody (A07659-1) overnight at 4°C. DyLight®488 Conjugated Goat Anti-Rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.
Click image to see more details
Figure 10. IHC analysis of TIMM8A/DDP using anti-TIMM8A/DDP antibody (A07659-1).
TIMM8A/DDP was detected in a paraffin-embedded section of rat brain tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-TIMM8A/DDP Antibody (A07659-1) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Protein Target Info & Infographic
Gene/Protein Information For TIMM8A (Source: Uniprot.org, NCBI)
Gene Name
TIMM8A
Full Name
Mitochondrial import inner membrane translocase subunit Tim8 A
Weight
157578 MW
Superfamily
small Tim family
Alternative Names
Cadherin-4; Retinal cadherin; R-CAD; R-cadherin; CDH4 TIMM8A DDP, DDP1, DFN1, MTS, TIM8 translocase of inner mitochondrial membrane 8A mitochondrial import inner membrane translocase subunit Tim8 A|X-linked deafness dystonia protein|deafness dystonia protein 1|deafness/dystonia peptide|translocase of inner mitochondrial membrane 8 homolog A
*If product is indicated to react with multiple species, protein info is based on the gene entry specified above in "Species".For more info on TIMM8A, check out the TIMM8A Infographic
We have 30,000+ of these available, one for each gene! Check them out.
In this infographic, you will see the following information for TIMM8A: database IDs, superfamily, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post-translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact [email protected].
