Product Info Summary
| SKU: | M01090-2 |
|---|---|
| Size: | 100 μg/vial |
| Reactive Species: | Human, Mouse, Rat |
| Host: | Mouse |
| Application: | IHC, WB |
Customers Who Bought This Also Bought
Product info
Product Name
Anti-SDHB Antibody Picoband® (monoclonal, 11I3)
SKU/Catalog Number
M01090-2
Size
100 μg/vial
Form
Lyophilized
Description
Boster Bio Anti-SDHB Antibody Picoband® (monoclonal, 11I3) catalog # M01090-2. Tested in IHC, WB applications. This antibody reacts with Human, Mouse, Rat. The brand Picoband indicates this is a premium antibody that guarantees superior quality, high affinity, and strong signals with minimal background in Western blot applications. Only our best-performing antibodies are designated as Picoband, ensuring unmatched performance.
Storage & Handling
Store at -20˚C for one year from date of receipt. After reconstitution, at 4˚C for one month. It can also be aliquotted and stored frozen at -20˚C for six months. Avoid repeated freeze-thaw cycles.
Cite This Product
Anti-SDHB Antibody Picoband® (monoclonal, 11I3) (Boster Biological Technology, Pleasanton CA, USA, Catalog # M01090-2)
Host
Mouse
Contents
Each vial contains 4mg Trehalose, 0.9mg NaCl, 0.2mg Na2HPO4, 0.05mg NaN3.
Clonality
Monoclonal
Clone Number
11I3
Isotype
Mouse IgG1
Immunogen
E. coli-derived human SDHB recombinant protein (Position: A29-V280).
*Blocking peptide can be purchased. Costs vary based on immunogen length. Contact us for pricing.
Cross-reactivity
No cross-reactivity with other proteins.
Reactive Species
M01090-2 is reactive to SDHB in Human, Mouse, Rat
Reconstitution
Add 0.2ml of distilled water will yield a concentration of 500μg/ml.
Observed Molecular Weight
29 kDa
Calculated molecular weight
31.63kDa
Background of SDHB
SDHB (Succinate Dehydrogenase Complex, Subunit B, iron sulfur protein), also known as iron-sulfur subunit of complex II (Ip) or SDH2, HOMOLOG OF, is a protein that in humans is encoded by the SDHB gene. SDHB is one of four protein subunits forming succinate dehydrogenase, the other three being SDHA, SDHC and SDHD. The SDHB subunit is connected to the SDHA subunit on the hydrophilic, catalytic end of the SDH complex. The SDHB gene is mapped on 1p36.13. It is stated that the nuclear-encoded Krebs cycle enzymes fumarate hydratase and succinate dehydrogenases like SDHB act as tumor suppressors, and germline mutations in these genes predispose individuals to leiomyomas and renal cancer and to paragangliomas, respectively. In affected members of families with paragangliomas-4, mutations were identified in the SDHB gene.
Antibody Validation
Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.
Application & Images
Applications
M01090-2 is guaranteed for IHC, WB Boster Guarantee
Assay Dilutions Recommendation
The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.
Western blot, 0.1-0.5μg/ml, Human
Immunohistochemistry (Paraffin-embedded Section), 0.5-1μg/ml, Human, Mouse, Rat
Positive Control
WB: human HEK293 whole cell, human HepG2 whole cell, human THP-1 whole cell,
IHC: human intestinal cancer tissue, human mammary cancer tissue, mouse cardiac muscle tissue, rat cardiac muscle tissue
Validation Images & Assay Conditions
Click image to see more details

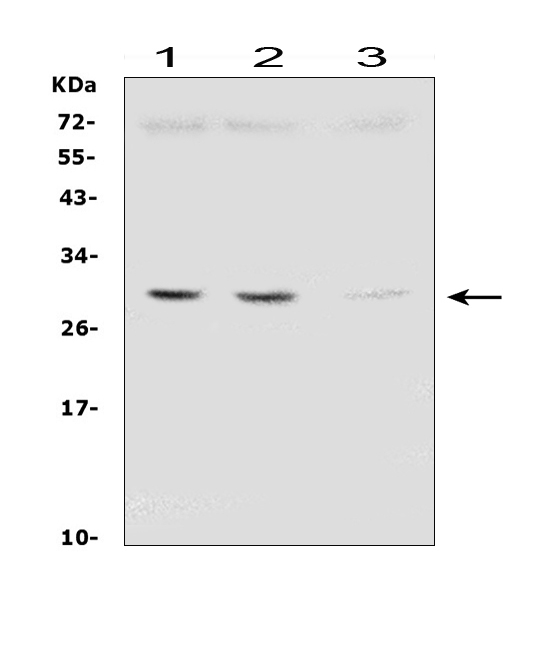

Figure 1. Western blot analysis of SDHB using anti-SDHB antibody (M01090-2).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: human HEK293 whole cell lysates,
Lane 2: human HepG2 whole cell lysates,
Lane 3: human THP-1 whole cell lysates,
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with mouse anti-SDHB antigen affinity purified monoclonal antibody (Catalog # M01090-2) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-mouse IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1001) with Tanon 5200 system. A specific band was detected for SDHB at approximately 29KD. The expected band size for SDHB is at 29KD.
Click image to see more details
Figure 2. IHC analysis of SDHB using anti-SDHB antibody (M01090-2).
SDHB was detected in paraffin-embedded section of human intestinal cancer tissues. Heat mediated antigen retrieval was performed in citrate buffer (pH6, epitope retrieval solution) for 20 mins. The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1μg/ml mouse anti-SDHB Antibody (M01090-2) overnight at 4°C. Biotinylated goat anti-mouse IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC)(Catalog # SA1021) with DAB as the chromogen.
Click image to see more details
Figure 3. IHC analysis of SDHB using anti-SDHB antibody (M01090-2).
SDHB was detected in paraffin-embedded section of human mammary cancer tissues. Heat mediated antigen retrieval was performed in citrate buffer (pH6, epitope retrieval solution) for 20 mins. The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1μg/ml mouse anti-SDHB Antibody (M01090-2) overnight at 4°C. Biotinylated goat anti-mouse IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC)(Catalog # SA1021) with DAB as the chromogen.
Click image to see more details
Figure 4. IHC analysis of SDHB using anti-SDHB antibody (M01090-2).
SDHB was detected in paraffin-embedded section of mouse cardiac muscle tissues. Heat mediated antigen retrieval was performed in citrate buffer (pH6, epitope retrieval solution) for 20 mins. The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1μg/ml mouse anti-SDHB Antibody (M01090-2) overnight at 4°C. Biotinylated goat anti-mouse IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC)(Catalog # SA1021) with DAB as the chromogen.
Click image to see more details
Figure 5. IHC analysis of SDHB using anti-SDHB antibody (M01090-2).
SDHB was detected in paraffin-embedded section of rat cardiac muscle tissues. Heat mediated antigen retrieval was performed in citrate buffer (pH6, epitope retrieval solution) for 20 mins. The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1μg/ml mouse anti-SDHB Antibody (M01090-2) overnight at 4°C. Biotinylated goat anti-mouse IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC)(Catalog # SA1021) with DAB as the chromogen.
Protein Target Info & Infographic
Gene/Protein Information For SDHB (Source: Uniprot.org, NCBI)
Gene Name
SDHB
Full Name
Succinate dehydrogenase [ubiquinone] iron-sulfur subunit, mitochondrial
Weight
31.63kDa
Superfamily
succinate dehydrogenase/fumarate reductase iron-sulfur protein family
Alternative Names
Succinate dehydrogenase [ubiquinone] iron-sulfur subunit, mitochondrial; Iron-sulfur subunit of complex II; Ip; SDHB; SDH; SDH1 SDHB CWS2, IP, MC2DN4, PGL4, SDH, SDH1, SDH2, SDHIP succinate dehydrogenase complex iron sulfur subunit B succinate dehydrogenase [ubiquinone] iron-sulfur subunit, mitochondrial|iron-sulfur subunit of complex II|succinate dehydrogenase complex, subunit B, iron sulfur (Ip)
*If product is indicated to react with multiple species, protein info is based on the gene entry specified above in "Species".For more info on SDHB, check out the SDHB Infographic
We have 30,000+ of these available, one for each gene! Check them out.
In this infographic, you will see the following information for SDHB: database IDs, superfamily, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post-translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact [email protected].
Specific Publications For Anti-SDHB Antibody Picoband® (monoclonal, 11I3) (M01090-2)
Hello CJ!
No publications found for M01090-2
*Do you have publications using this product? Share with us and receive a reward. Ask us for more details.
Recommended Resources
Here are featured tools and databases that you might find useful.
- Boster's Pathways Library
- Protein Databases
- Bioscience Research Protocol Resources
- Data Processing & Analysis Software
- Photo Editing Software
- Scientific Literature Resources
- Research Paper Management Tools
- Molecular Biology Software
- Primer Design Tools
- Bioinformatics Tools
- Phylogenetic Tree Analysis
Customer Reviews
Have you used Anti-SDHB Antibody Picoband® (monoclonal, 11I3)?
Submit a review and receive an Amazon gift card.
- $30 for a review with an image
0 Reviews For Anti-SDHB Antibody Picoband® (monoclonal, 11I3)
Customer Q&As
Have a question?
Find answers in Q&As, reviews.
Can't find your answer?
Submit your question
5 Customer Q&As for Anti-SDHB Antibody Picoband® (monoclonal, 11I3)
Question
Our lab want to know about using your anti-SDHB antibody (monoclonal, 11I3) for aerobic respiration studies. Has this antibody been tested with western blotting on human hepg2 whole cell lysates? We would like to see some validation images before ordering.
Verified Customer
Verified customer
Asked: 2020-01-01
Answer
Thanks for your inquiry. This M01090-2 anti-SDHB antibody (monoclonal, 11I3) is validated on human hepg2 whole cell lysates. It is guaranteed to work for IHC-P, WB in human, mouse, rat. Our Boster guarantee will cover your intended experiment even if the sample type has not been be directly tested.
Boster Scientific Support
Answered: 2020-01-01
Question
We have been able to see staining in rat uterus. Are there any suggestions? Is anti-SDHB antibody (monoclonal, 11I3) supposed to stain uterus positively?
C. Anderson
Verified customer
Asked: 2019-11-20
Answer
Based on literature uterus does express SDHB. Based on Uniprot.org, SDHB is expressed in muscle of leg, liver, uterus, brain, fibroblast, among other tissues. Regarding which tissues have SDHB expression, here are a few articles citing expression in various tissues:
Brain, Pubmed ID: 15489334
Fibroblast, Pubmed ID: 2494655
Liver, Pubmed ID: 2302193, 7622059, 24275569
Uterus, Pubmed ID: 14702039
Boster Scientific Support
Answered: 2019-11-20
Question
We are currently using anti-SDHB antibody (monoclonal, 11I3) M01090-2 for mouse tissue, and we are happy with the WB results. The species of reactivity given in the datasheet says human, mouse, rat. Is it likely that the antibody can work on dog tissues as well?
Verified Customer
Verified customer
Asked: 2019-05-22
Answer
The anti-SDHB antibody (monoclonal, 11I3) (M01090-2) has not been tested for cross reactivity specifically with dog tissues, but there is a good chance of cross reactivity. We have an innovator award program that if you test this antibody and show it works in dog you can get your next antibody for free. Please contact me if I can help you with anything.
Boster Scientific Support
Answered: 2019-05-22
Question
Our team were satisfied with the WB result of your anti-SDHB antibody (monoclonal, 11I3). However we have observed positive staining in brain mitochondrion inner membrane using this antibody. Is that expected? Could you tell me where is SDHB supposed to be expressed?
M. Baker
Verified customer
Asked: 2018-04-20
Answer
From what I have seen in literature, brain does express SDHB. Generally SDHB expresses in mitochondrion inner membrane. Regarding which tissues have SDHB expression, here are a few articles citing expression in various tissues:
Brain, Pubmed ID: 15489334
Fibroblast, Pubmed ID: 2494655
Liver, Pubmed ID: 2302193, 7622059, 24275569
Uterus, Pubmed ID: 14702039
Boster Scientific Support
Answered: 2018-04-20
Question
We bought anti-SDHB antibody (monoclonal, 11I3) for WB on liver a few years ago. I am using human, and We intend to use the antibody for IHC-P next. Our lab want to know about examining liver as well as fibroblast in our next experiment. Could you please give me some suggestion on which antibody would work the best for IHC-P?
G. Patel
Verified customer
Asked: 2018-01-02
Answer
I looked at the website and datasheets of our anti-SDHB antibody (monoclonal, 11I3) and it appears that M01090-2 has been validated on human in both WB and IHC-P. Thus M01090-2 should work for your application. Our Boster satisfaction guarantee will cover this product for IHC-P in human even if the specific tissue type has not been validated. We do have a comprehensive range of products for IHC-P detection and you can check out our website bosterbio.com to find out more information about them.
Boster Scientific Support
Answered: 2018-01-02
