Product Info Summary
| SKU: | A06797-1 |
|---|---|
| Size: | 100 μg/vial |
| Reactive Species: | Human |
| Host: | Rabbit |
| Application: | ELISA, Flow Cytometry, IHC, WB |
Customers Who Bought This Also Bought
Product info
Product Name
Anti-PIWIL4/PIWI Antibody Picoband®
SKU/Catalog Number
A06797-1
Size
100 μg/vial
Form
Lyophilized
Description
Boster Bio Anti-PIWIL4/PIWI Antibody Picoband® catalog # A06797-1. Tested in ELISA, Flow Cytometry, IHC, WB applications. This antibody reacts with Human. The brand Picoband indicates this is a premium antibody that guarantees superior quality, high affinity, and strong signals with minimal background in Western blot applications. Only our best-performing antibodies are designated as Picoband, ensuring unmatched performance.
Storage & Handling
At -20°C for one year from date of receipt. After reconstitution, at 4°C for one month. It can also be aliquotted and stored frozen at -20°C for six months. Avoid repeated freezing and thawing.
Cite This Product
Anti-PIWIL4/PIWI Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # A06797-1)
Host
Rabbit
Contents
Each vial contains 4 mg Trehalose, 0.9 mg NaCl, 0.2 mg Na2HPO4.
Clonality
Polyclonal
Isotype
Rabbit IgG
Immunogen
E.coli-derived human PIWIL4/PIWI recombinant protein (Position: R51-N749).
*Blocking peptide can be purchased. Costs vary based on immunogen length. Contact us for pricing.
Cross-reactivity
No cross-reactivity with other proteins.
Reactive Species
A06797-1 is reactive to PIWIL4 in Human
Reconstitution
Adding 0.2 ml of distilled water will yield a concentration of 500 μg/ml.
Observed Molecular Weight
97 kDa
Calculated molecular weight
104553 MW
Background of PIWIL4
PIWI-like protein 4 (PIWIL4) is a 97 kDa member of the argonaute family of proteins and the PIWI subfamily. Human PIWIL4 is 852 amino acids (aa) in length and contains one PAZ domain (aa 268-384) and one PIWI domain (aa 546-838). There are three isoforms for human PIWIL4. Isoform 1 is the standard protein. Isoform 2 has a two aa substitution for aa 1-29 in isoform 1 and a deletion of aa 523-852. Isoform 3 has a deletion of aa 1-69 and a deletion of aa 523-852. Human PIWIL4 shares 77% aa sequence identity with mouse and rat PIWIL4. PIWIL4 plays a central role in spermatogenesis.
Antibody Validation
Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.
Application & Images
Applications
A06797-1 is guaranteed for ELISA, Flow Cytometry, IHC, WB Boster Guarantee
Assay Dilutions Recommendation
The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.
Western blot, 0.25-0.5 μg/ml, Human
Immunohistochemistry(Paraffin-embedded Section), 2-5 μg/ml, Human
Flow Cytometry (Fixed), 1-3 μg/1x106 cells, Human
ELISA, 0.1-0.5 μg/ml, -
Positive Control
WB: human 293T whole cell, human MCF-7 whole cell, human PC-3 whole cell, human PANC-1 whole cell
IHC: human placenta tissue, human ovarian serous adenocarcinoma tissue
FCM: PC-3 cell
Validation Images & Assay Conditions
Click image to see more details

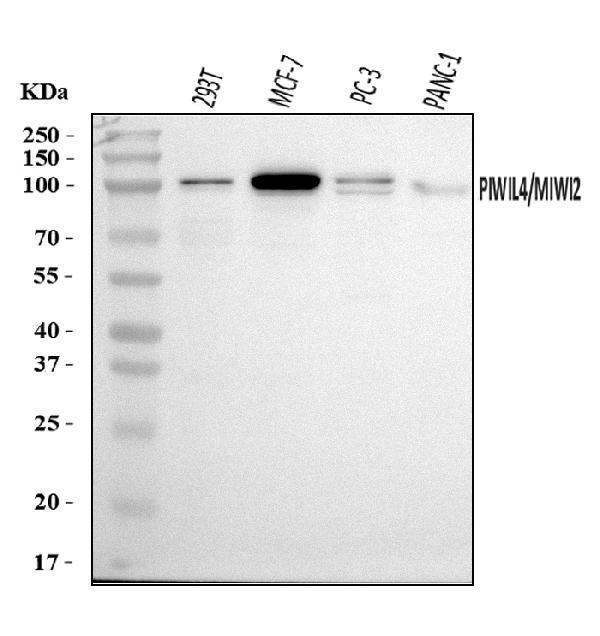

Figure 1. Western blot analysis of PIWIL4/PIWI using anti-PIWIL4/PIWI antibody (A06797-1).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human 293T whole cell lysates,
Lane 2: human MCF-7 whole cell lysates,
Lane 3: human PC-3 whole cell lysates,
Lane 4: human PANC-1 whole cell lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-PIWIL4/PIWI antigen affinity purified polyclonal antibody (Catalog # A06797-1) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for PIWIL4/PIWI at approximately 97 kDa. The expected band size for PIWIL4/PIWI is at 97 kDa.
Click image to see more details
Figure 2. IHC analysis of PIWIL4/PIWI using anti-PIWIL4/PIWI antibody (A06797-1).
PIWIL4/PIWI was detected in a paraffin-embedded section of human placenta tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-PIWIL4/PIWI Antibody (A06797-1) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Click image to see more details
Figure 3. IHC analysis of PIWIL4/PIWI using anti-PIWIL4/PIWI antibody (A06797-1).
PIWIL4/PIWI was detected in a paraffin-embedded section of human ovarian serous adenocarcinoma tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-PIWIL4/PIWI Antibody (A06797-1) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Click image to see more details
Figure 4. Flow Cytometry analysis of PC-3 cells using anti-PIWIL4/PIWI antibody (A06797-1).
Overlay histogram showing PC-3 cells stained with A06797-1 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-PIWIL4/PIWI Antibody (A06797-1, 1 μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10 μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1 μg/1x106) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Protein Target Info & Infographic
Gene/Protein Information For PIWIL4 (Source: Uniprot.org, NCBI)
Gene Name
PIWIL4
Full Name
Piwi-like protein 4
Weight
104553 MW
Superfamily
argonaute family
Alternative Names
PR domain zinc finger protein 5; PR domain-containing protein 5; PRDM5; PFM2 PIWIL4 HIWI2, MIWI2 piwi like RNA-mediated gene silencing 4 piwi-like protein 4|piwi-like 4|testis tissue sperm-binding protein Li 85P
*If product is indicated to react with multiple species, protein info is based on the gene entry specified above in "Species".For more info on PIWIL4, check out the PIWIL4 Infographic
We have 30,000+ of these available, one for each gene! Check them out.
In this infographic, you will see the following information for PIWIL4: database IDs, superfamily, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post-translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact [email protected].
