Product Info Summary
| SKU: | A06942-1 |
|---|---|
| Size: | 100 µg/vial |
| Reactive Species: | Human, Rat |
| Host: | Rabbit |
| Application: | ELISA, Flow Cytometry, IF, ICC, WB |
Customers Who Bought This Also Bought
Product info
Product Name
Anti-PIGS Antibody Picoband®
SKU/Catalog Number
A06942-1
Size
100 µg/vial
Form
Lyophilized
Description
Boster Bio Anti-PIGS Antibody Picoband® catalog # A06942-1. Tested in ELISA, Flow Cytometry, IF, ICC, WB applications. This antibody reacts with Human, Rat. The brand Picoband indicates this is a premium antibody that guarantees superior quality, high affinity, and strong signals with minimal background in Western blot applications. Only our best-performing antibodies are designated as Picoband, ensuring unmatched performance.
Storage & Handling
At -20°C for one year from date of receipt. After reconstitution, at 4°C for one month. It can also be aliquotted and stored frozen at -20°C for six months. Avoid repeated freezing and thawing.
Cite This Product
Anti-PIGS Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # A06942-1)
Host
Rabbit
Contents
Each vial contains 4 mg Trehalose, 0.9 mg NaCl, 0.2 mg Na2HPO4.
Clonality
Polyclonal
Isotype
Rabbit IgG
Immunogen
E.coli-derived human PIGS recombinant protein (Position: R184-D504).
*Blocking peptide can be purchased. Costs vary based on immunogen length. Contact us for pricing.
Cross-reactivity
No cross-reactivity with other proteins.
Reactive Species
A06942-1 is reactive to PIGS in Human, Rat
Reconstitution
Adding 0.2 ml of distilled water will yield a concentration of 500 µg/ml.
Observed Molecular Weight
65 kDa
Calculated molecular weight
87148 MW
Background of PIGS
GPI transamidase component PIG-S is an enzyme that in humans is encoded by the PIGS gene. This gene encodes a protein that is involved in GPI-anchor biosynthesis. The glycosylphosphatidylinositol (GPI) anchor is a glycolipid found on many blood cells and serves to anchor proteins to the cell surface. This gene encodes an essential component of the multisubunit enzyme, GPI transamidase. GPI transamidase mediates GPI anchoring in the endoplasmic reticulum, by catalyzing the transfer of fully assembled GPI units to proteins.
Antibody Validation
Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.
Application & Images
Applications
A06942-1 is guaranteed for ELISA, Flow Cytometry, IF, ICC, WB Boster Guarantee
Assay Dilutions Recommendation
The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.
Western blot, 0.25-0.5 µg/ml, Human, Rat
Immunocytochemistry/Immunofluorescence, 5 µg/ml, Human
Flow Cytometry (Fixed), 1-3 µg/1x1x106 cells, Human
ELISA, 0.1-0.5 µg/ml, Human
Positive Control
WB: human hepatocellular carcinoma tumor tissue(HCCT), human hepatocellular carcinoma paracancerous tissue(HCCP), rat liver tissue, rat RH35 whole cell
ICC/IF: HELA cell
FCM: RT4 cell
Validation Images & Assay Conditions
Click image to see more details

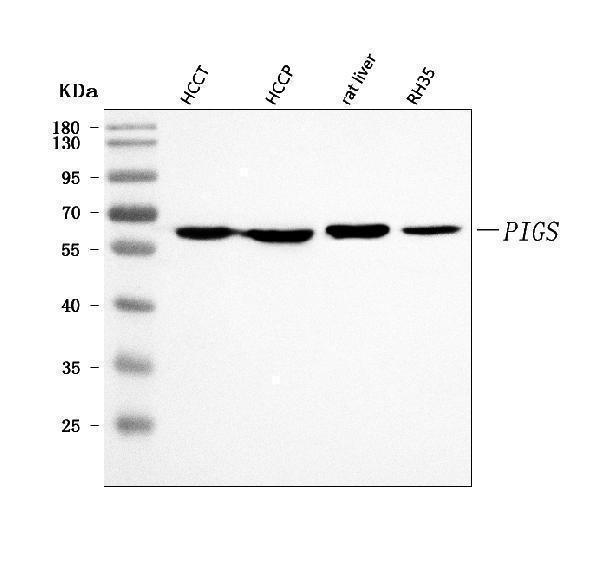

Figure 1. Western blot analysis of PIGS using anti-PIGS antibody (A16132-1).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human hepatocellular carcinoma tumor tissue(HCCT) lysates,
Lane 3: human hepatocellular carcinoma paracancerous tissue(HCCP) lysates,
Lane 3: rat liver tissue lysates,
Lane 4: rat RH35 whole cell lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-PIGS antigen affinity purified polyclonal antibody (Catalog # A16132-1) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for PIGS at approximately 65 kDa. The expected band size for PIGS is at 62,65-70 kDa.
Click image to see more details
Figure 2. IF analysis of PIGS using anti-PIGS antibody (A06942-1).
PIGS was detected in an immunocytochemical section of HELA cells. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent (AR0022) for 15 mins. The cells were blocked with 10% goat serum. And then incubated with 5 μg/mL rabbit anti-PIGS Antibody (A06942-1) overnight at 4°C. Cy3 Conjugated Goat Anti-Rabbit IgG (BA1032) was used as secondary antibody at 1:500 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.
Click image to see more details
Figure 3. Flow Cytometry analysis of RT4 cells using anti-PIGS antibody (A06942-1).
Overlay histogram showing RT4 cells stained with A06942-1 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-PIGS Antibody (A06942-1, 1 μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10 μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1 μg/1x106) used under the same conditions. Unlabelled sample (Red line) was also used as a control.
Protein Target Info & Infographic
Gene/Protein Information For PIGS (Source: Uniprot.org, NCBI)
Gene Name
PIGS
Full Name
GPI transamidase component PIG-S
Weight
87148 MW
Superfamily
PIGS family
Alternative Names
Semaphorin-3E; SEMA3E; KIAA0331; SEMAH PIGS GPIBD18 phosphatidylinositol glycan anchor biosynthesis class S GPI transamidase component PIG-S|GPI transamidase subunit|phosphatidylinositol glycan, class S|phosphatidylinositol-glycan biosynthesis class S protein
*If product is indicated to react with multiple species, protein info is based on the gene entry specified above in "Species".For more info on PIGS, check out the PIGS Infographic
We have 30,000+ of these available, one for each gene! Check them out.
In this infographic, you will see the following information for PIGS: database IDs, superfamily, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post-translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact [email protected].
