Product Info Summary
| SKU: | A02078 |
|---|---|
| Size: | 100 μg/vial |
| Reactive Species: | Human, Monkey, Mouse, Rat |
| Host: | Rabbit |
| Application: | ELISA, Flow Cytometry, IHC, WB |
Customers Who Bought This Also Bought
Product info
Product Name
Anti-PHEX Antibody Picoband®
SKU/Catalog Number
A02078
Size
100 μg/vial
Form
Lyophilized
Description
Boster Bio Anti-PHEX Antibody Picoband® catalog # A02078. Tested in ELISA, Flow Cytometry, IHC, WB applications. This antibody reacts with Human, Monkey, Mouse, Rat. The brand Picoband indicates this is a premium antibody that guarantees superior quality, high affinity, and strong signals with minimal background in Western blot applications. Only our best-performing antibodies are designated as Picoband, ensuring unmatched performance.
Storage & Handling
Store at -20˚C for one year from date of receipt. After reconstitution, at 4˚C for one month. It can also be aliquotted and stored frozen at -20˚C for six months. Avoid repeated freeze-thaw cycles.
Cite This Product
Anti-PHEX Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # A02078)
Host
Rabbit
Contents
Each vial contains 4mg Trehalose, 0.9mg NaCl, 0.2mg Na2HPO4, 0.05mg NaN3.
Clonality
Polyclonal
Isotype
Rabbit IgG
Immunogen
E.coli-derived human PHEX recombinant protein (Position: E145-N718).
*Blocking peptide can be purchased. Costs vary based on immunogen length. Contact us for pricing.
Cross-reactivity
No cross-reactivity with other proteins.
Reactive Species
A02078 is reactive to PHEX in Human, Monkey, Mouse, Rat
Reconstitution
Add 0.2ml of distilled water will yield a concentration of 500ug/ml.
Observed Molecular Weight
86 kDa
Calculated molecular weight
86.474kDa
Background of PHEX
Phosphate-regulating neutral endopeptidase, X-linked also known as phosphate-regulating gene with homologies to endopeptidases on the X chromosome or metalloendopeptidase homolog PEX is an enzyme that in humans is encoded by the PHEX gene. It is mapped to Xp22.11. The protein encoded by this gene is a transmembrane endopeptidase that belongs to the type II integral membrane zinc-dependent endopeptidase family. The protein is thought to be involved in bone and dentin mineralization and renal phosphate reabsorption. Mutations in this gene cause X-linked hypophosphatemic rickets. Alternative splicing results in multiple transcript variants.
Antibody Validation
Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.
Application & Images
Applications
A02078 is guaranteed for ELISA, Flow Cytometry, IHC, WB Boster Guarantee
Assay Dilutions Recommendation
The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.
Western blot, 0.25-0.5μg/ml, Human, Mouse, Monkey, Rat
Immunohistochemistry (Paraffin-embedded Section), 0.5-1μg/ml, Human
Flow Cytometry (Fixed), 1-3μg/1x106 cells, Human
ELISA, 0.1-0.5μg/ml, -
Positive Control
WB: rat ovary tissue, rat kidney tissue, mouse ovary tissue, mouse kidney tissue, human HEK293 whole cell, monkey kidney tissue, rat NRK whole cell, monkey COS-7 whole cell
IHC: human lung cancer tissue, human ovarian cancer tissue
FCM: U87 cell
Validation Images & Assay Conditions
Click image to see more details
Figure 1. Western blot analysis of PHEX using anti-PHEX antibody (A02078).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: rat ovary tissue lysates,
Lane 2: rat kidney tissue lysates,
Lane 3: mouse ovary tissue lysates,
Lane 4: mouse kidney tissue lysates,
Lane 5: human HEK293 whole cell lysates,
Lane 6: monkey kidney tissue lysates,
Lane 7: rat NRK whole cell lysates,
Lane 8: monkey COS-7 whole cell lysates.
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-PHEX antigen affinity purified polyclonal antibody (Catalog # A02078) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for PHEX at approximately 86KD. The expected band size for PHEX is at 86KD.
Click image to see more details
Figure 2. IHC analysis of PHEX using anti-PHEX antibody (A02078).
PHEX was detected in paraffin-embedded section of human lung cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1μg/ml rabbit anti-PHEX Antibody (A02078) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Click image to see more details
Figure 3. IHC analysis of PHEX using anti-PHEX antibody (A02078).
PHEX was detected in paraffin-embedded section of human ovarian cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1μg/ml rabbit anti-PHEX Antibody (A02078) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Click image to see more details

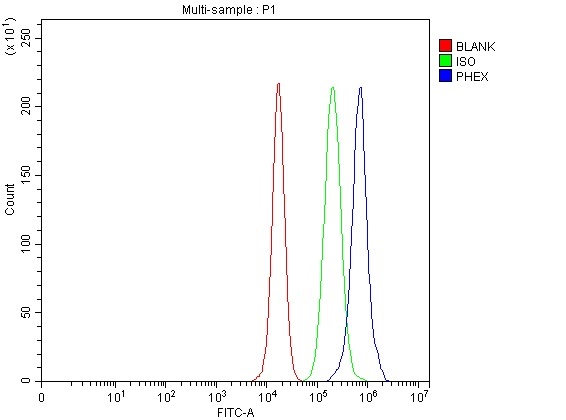

Figure 4. Flow Cytometry analysis of U87 cells using anti-PHEX antibody (A02078).
Overlay histogram showing U87 cells stained with A02078 (Blue line). The cells were fixed with 4% paraformaldehyde and blocked with 10% normal goat serum. And then incubated with rabbit anti-PHEX Antibody (A02078, 1μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x106) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Protein Target Info & Infographic
Gene/Protein Information For PHEX (Source: Uniprot.org, NCBI)
Gene Name
PHEX
Full Name
Phosphate-regulating neutral endopeptidase PHEX
Weight
86.474kDa
Superfamily
peptidase M13 family
Alternative Names
Phosphate-regulating neutral endopeptidase PHEX; Metalloendopeptidase homolog PEX; Vitamin D-resistant hypophosphatemic rickets protein; X-linked hypophosphatemia protein; HYP; PHEX; PEX PHEX HPDR, HPDR1, HYP, HYP1, LXHR, PEX, XLH phosphate regulating endopeptidase homolog X-linked phosphate-regulating neutral endopeptidase PHEX|X-linked hypophosphatemia protein|metalloendopeptidase homolog PEX|phosphate regulating gene with homologies to endopeptidases on the X chromosome (hypophosphatemia, vitamin D resistant rickets)|vitamin D-resistant hypophosphatemic rickets protein
*If product is indicated to react with multiple species, protein info is based on the gene entry specified above in "Species".For more info on PHEX, check out the PHEX Infographic
We have 30,000+ of these available, one for each gene! Check them out.
In this infographic, you will see the following information for PHEX: database IDs, superfamily, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post-translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact [email protected].
