Product Info Summary
| SKU: | A05781-3 |
|---|---|
| Size: | 100 μg/vial |
| Reactive Species: | Human, Mouse, Rat |
| Host: | Rabbit |
| Application: | ELISA, Flow Cytometry, WB |
Customers Who Bought This Also Bought
Product info
Product Name
Anti-Neurogranin/NRGN Antibody Picoband®
View all Neurogranin Antibodies
SKU/Catalog Number
A05781-3
Size
100 μg/vial
Form
Lyophilized
Description
Boster Bio Anti-Neurogranin/NRGN Antibody Picoband® catalog # A05781-3. Tested in ELISA, Flow Cytometry, IHC-P, WB applications. This antibody reacts with Human, Mouse, Rat. The brand Picoband indicates this is a premium antibody that guarantees superior quality, high affinity, and strong signals with minimal background in Western blot applications. Only our best-performing antibodies are designated as Picoband, ensuring unmatched performance.
Storage & Handling
Store at -20˚C for one year from date of receipt. After reconstitution, at 4˚C for one month. It can also be aliquotted and stored frozen at -20˚C for six months. Avoid repeated freeze-thaw cycles.
Cite This Product
Anti-Neurogranin/NRGN Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # A05781-3)
Host
Rabbit
Contents
Each vial contains 4mg Trehalose, 0.9mg NaCl, 0.2mg Na2HPO4.
Clonality
Polyclonal
Isotype
Rabbit IgG
Immunogen
E.coli-derived human NRGN recombinant protein (Position: K11-K54).
*Blocking peptide can be purchased. Costs vary based on immunogen length. Contact us for pricing.
Cross-reactivity
No cross-reactivity with other proteins
Reactive Species
A05781-3 is reactive to NRGN in Human, Mouse, Rat
Reconstitution
Add 0.2ml of distilled water will yield a concentration of 500ug/ml.
Observed Molecular Weight
11 kDa
Calculated molecular weight
16693 MW
Background of Neurogranin
Neurogranin is a calmodulin-binding protein expressed primarily in the brain, particularly in dendritic spines, and participating in the protein kinase C signaling pathway. Neurogranin (NRGN) is the human homolog of the neuron-specific rat RC3/neurogranin gene. This gene encodes a postsynaptic protein kinase substrate that binds calmodulin in the absence of calcium. The NRGN gene contains four exons and three introns. The exons 1 and 2 encode the protein and exons 3 and 4 contain untranslated sequences. It is suggested that the NRGN is a direct target for thyroid hormone in human brain, and that control of expression of this gene could underlay many of the consequences of hypothyroidism on mental states during development as well as in adult subjects.
Antibody Validation
Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.
Application & Images
Applications
A05781-3 is guaranteed for ELISA, Flow Cytometry, WB Boster Guarantee
Assay Dilutions Recommendation
The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.
Western blot, 0.1-0.25μg/ml, Human, Mouse, Rat
Flow Cytometry (Fixed), 1-3μg/1x106 cells, Human
ELISA, 0.1-0.5μg/ml, -
Positive Control
WB: human PC-3 whole cell, rat brain tissue, mouse brain tissue
FCM: K562 cell
Validation Images & Assay Conditions
Click image to see more details

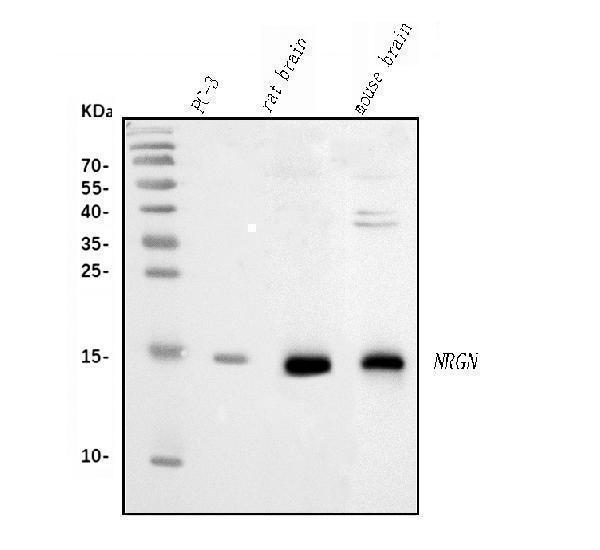

Figure 1. Western blot analysis of Neurogranin/NRGN using anti-Neurogranin/NRGN antibody (A05781-3).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human PC-3 whole cell lysates,
Lane 2: rat brain tissue lysates,
Lane 3: mouse brain tissue lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-Neurogranin/NRGN antigen affinity purified polyclonal antibody (Catalog # A05781-3) at 0.25 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for Neurogranin/NRGN at approximately 11 kDa. The expected band size for Neurogranin/NRGN is at 8 kDa.
Click image to see more details

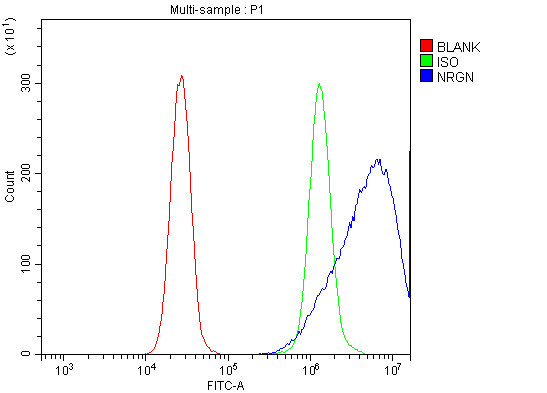

Figure 2. Flow Cytometry analysis of K562 cells using anti-Neurogranin/NRGN antibody (A05781-3).
Overlay histogram showing K562 cells stained with A05781-3 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-Neurogranin/NRGN Antibody (A05781-3, 1 μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10 μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1 μg/1x106) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Protein Target Info & Infographic
Gene/Protein Information For NRGN (Source: Uniprot.org, NCBI)
Gene Name
NRGN
Full Name
Neurogranin
Weight
16693 MW
Superfamily
neurogranin family
Alternative Names
Protein phosphatase 1 regulatory subunit 14A;17 kDa PKC-potentiated inhibitory protein of PP1;Protein kinase C-potentiated inhibitor protein of 17 kDa;CPI-17;PPP1R14A;CPI17, PPP1INL; NRGN RC3, hng neurogranin neurogranin|calmodulin-binding protein|neurogranin (protein kinase C substrate, RC3)|protein kinase C substrate
*If product is indicated to react with multiple species, protein info is based on the gene entry specified above in "Species".For more info on NRGN, check out the NRGN Infographic
We have 30,000+ of these available, one for each gene! Check them out.
In this infographic, you will see the following information for NRGN: database IDs, superfamily, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post-translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact [email protected].
Specific Publications For Anti-Neurogranin/NRGN Antibody Picoband® (A05781-3)
Hello CJ!
No publications found for A05781-3
*Do you have publications using this product? Share with us and receive a reward. Ask us for more details.
