Click image to see more details
Product Info Summary
| SKU: | A08817-2 |
|---|---|
| Size: | 100 µg/vial |
| Reactive Species: | Human, Mouse, Rat |
| Host: | Rabbit |
| Application: | ELISA, IHC, WB |
Customers Who Bought This Also Bought
Product info
Product Name
Anti-NEBL Antibody Picoband®
SKU/Catalog Number
A08817-2
Size
100 µg/vial
Form
Lyophilized
Description
Boster Bio Anti-NEBL Antibody Picoband® catalog # A08817-2. Tested in ELISA, IHC, WB applications. This antibody reacts with Human, Mouse, Rat. The brand Picoband indicates this is a premium antibody that guarantees superior quality, high affinity, and strong signals with minimal background in Western blot applications. Only our best-performing antibodies are designated as Picoband, ensuring unmatched performance.
Storage & Handling
At -20°C for one year from date of receipt. After reconstitution, at 4°C for one month. It can also be aliquotted and stored frozen at -20°C for six months. Avoid repeated freezing and thawing.
Cite This Product
Anti-NEBL Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # A08817-2)
Host
Rabbit
Contents
Each vial contains 4 mg Trehalose, 0.9 mg NaCl, 0.2 mg Na2HPO4.
Clonality
Polyclonal
Isotype
Rabbit IgG
Immunogen
E.coli-derived human NEBL recombinant protein (Position: E86-K842).
*Blocking peptide can be purchased. Costs vary based on immunogen length. Contact us for pricing.
Cross-reactivity
No cross-reactivity with other proteins.
Reactive Species
A08817-2 is reactive to NEBL in Human, Mouse, Rat
Reconstitution
Adding 0.2 ml of distilled water will yield a concentration of 500 µg/ml.
Observed Molecular Weight
126 kDa
Calculated molecular weight
116.453kDa
Background of NEBL
Nebulette is a cardiac-specific isoform belonging to the nebulin family of proteins. It is encoded by the NEBL gene. This gene encodes a nebulin like protein that is abundantly expressed in cardiac muscle. The encoded protein binds actin and interacts with thin filaments and Z-line associated proteins in striated muscle. This protein may be involved in cardiac myofibril assembly. A shorter isoform of this protein termed LIM nebulette is expressed in non-muscle cells and may function as a component of focal adhesion complexes. Alternate splicing results in multiple transcript variants.
Antibody Validation
Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.
Application & Images
Applications
A08817-2 is guaranteed for ELISA, IHC, WB Boster Guarantee
Assay Dilutions Recommendation
The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.
Western blot, 0.1-0.25 μg/ml, Mouse, Rat
Immunohistochemistry(Paraffin-embedded Section), 2-5 μg/ml, Mouse, Rat
ELISA, 0.1-0.5 μg/ml, -
Positive Control
WB: rat heart tissue, mouse heart tissue
IHC: mouse heart tissue, rat heart tissue
Validation Images & Assay Conditions
Click image to see more details

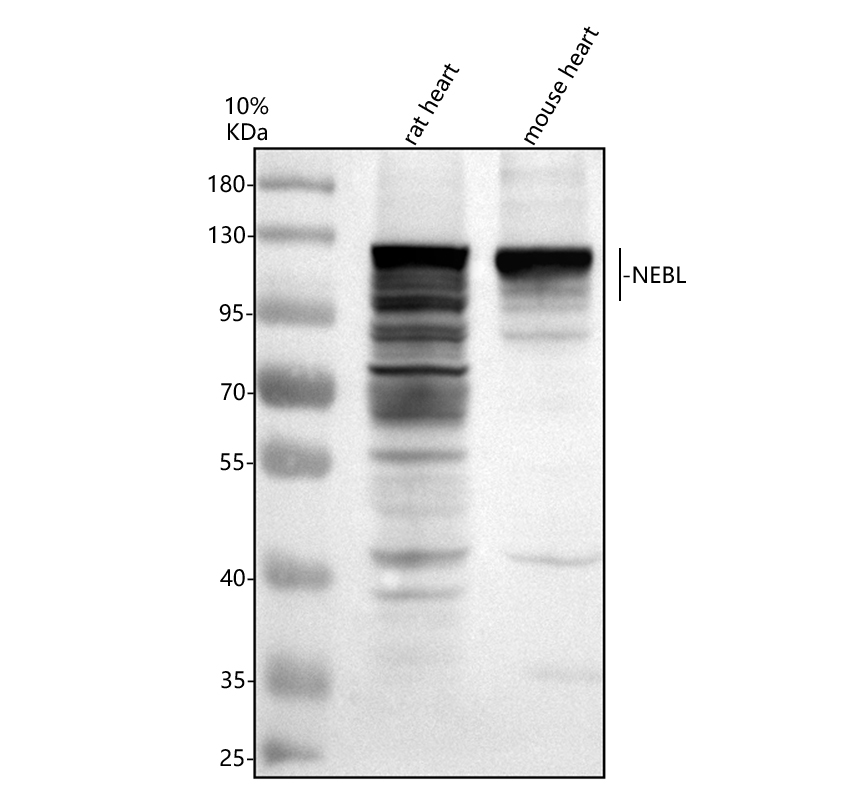

Figure 1. Western blot analysis of NEBL using anti-NEBL antibody (A08817-2).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: rat heart tissue lysates,
Lane 2: mouse heart tissue lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-NEBL antigen affinity purified polyclonal antibody (Catalog # A08817-2) at 0.25 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for NEBL at approximately 126 kDa. The expected band size for NEBL is at 116,126 kDa.
Click image to see more details
Figure 2. IHC analysis of NEBL using anti-NEBL antibody (A08817-2).
NEBL was detected in a paraffin-embedded section of mouse heart tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-NEBL Antibody (A08817-2) overnight at 4°C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB as the chromogen.
Click image to see more details
Figure 3. IHC analysis of NEBL using anti-NEBL antibody (A08817-2).
NEBL was detected in a paraffin-embedded section of rat heart tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-NEBL Antibody (A08817-2) overnight at 4°C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB as the chromogen.
Protein Target Info & Infographic
Gene/Protein Information For NEBL (Source: Uniprot.org, NCBI)
Gene Name
NEBL
Full Name
Nebulette
Weight
116.453kDa
Alternative Names
Protein phosphatase 1E; Ca (2+)/calmodulin-dependent protein kinase phosphatase N; CaMKP-N; CaMKP-nucleus; CaMKN; Partner of PIX 1; Partner of PIX-alpha; Partner of PIXA; PPM1E; CAMKN; KIAA1072; POPX1 NEBL C10orf113, LASP2, LNEBL, bA165O3.1 nebulette nebulette|LIM and SH3 protein 2|LIM-nebulette|actin-binding Z-disk protein
*If product is indicated to react with multiple species, protein info is based on the gene entry specified above in "Species".For more info on NEBL, check out the NEBL Infographic
We have 30,000+ of these available, one for each gene! Check them out.
In this infographic, you will see the following information for NEBL: database IDs, superfamily, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post-translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact [email protected].
Specific Publications For Anti-NEBL Antibody Picoband® (A08817-2)
Hello CJ!
No publications found for A08817-2
*Do you have publications using this product? Share with us and receive a reward. Ask us for more details.
