Product Info Summary
| SKU: | M11793 |
|---|---|
| Size: | 100 μg/vial |
| Reactive Species: | Human, Mouse, Rat |
| Host: | Mouse |
| Application: | Flow Cytometry, IF, IHC, ICC, WB |
Customers Who Bought This Also Bought
Product info
Product Name
Anti-MPPB/PMPCB Antibody Picoband® (monoclonal, 9F13E4)
View all Mitochondrial-processing peptidase subunit beta Antibodies
SKU/Catalog Number
M11793
Size
100 μg/vial
Form
Lyophilized
Description
Boster Bio Anti-MPPB/PMPCB Antibody Picoband® (monoclonal, 9F13E4) catalog # M11793. Tested in Flow Cytometry, IF, IHC, ICC, WB applications. This antibody reacts with Human, Mouse, Rat. The brand Picoband indicates this is a premium antibody that guarantees superior quality, high affinity, and strong signals with minimal background in Western blot applications. Only our best-performing antibodies are designated as Picoband, ensuring unmatched performance.
Storage & Handling
At -20°C for one year from date of receipt. After reconstitution, at 4°C for one month. It can also be aliquotted and stored frozen at -20°C for six months. Avoid repeated freezing and thawing.
Cite This Product
Anti-MPPB/PMPCB Antibody Picoband® (monoclonal, 9F13E4) (Boster Biological Technology, Pleasanton CA, USA, Catalog # M11793)
Host
Mouse
Contents
Each vial contains 4 mg Trehalose, 0.9 mg NaCl and 0.2 mg Na2HPO4.
Clonality
Monoclonal
Clone Number
9F13E4
Isotype
Mouse IgG2b
Immunogen
E.coli-derived human MPPB/PMPCB recombinant protein (Position: E23-Q479).
*Blocking peptide can be purchased. Costs vary based on immunogen length. Contact us for pricing.
Cross-reactivity
No cross-reactivity with other proteins.
Reactive Species
M11793 is reactive to PMPCB in Human, Mouse, Rat
Reconstitution
Adding 0.2 ml of distilled water will yield a concentration of 500 μg/ml.
Observed Molecular Weight
43 kDa
Calculated molecular weight
54.366kDa
Background of Mitochondrial-processing peptidase subunit beta
Mitochondrial-processing peptidase subunit beta is an enzyme that in humans is encoded by the PMPCB gene. This gene is a member of the peptidase M16 family and encodes a protein with a zinc-binding motif. This protein is located in the mitochondrial matrix and catalyzes the cleavage of the leader peptides of precursor proteins newly imported into the mitochondria, though it only functions as part of a heterodimeric complex.
Antibody Validation
Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.
Application & Images
Applications
M11793 is guaranteed for Flow Cytometry, IF, IHC, ICC, WB Boster Guarantee
Assay Dilutions Recommendation
The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.
Western blot, 0.25-0.5 μg/ml, Human, Mouse, Rat
Immunohistochemistry(Paraffin-embedded Section), 2-5 μg/ml, Human
Immunocytochemistry/Immunofluorescence, 5 μg/ml, Human
Flow Cytometry (Fixed), 1-3 μg/1x106 cells, Human
Positive Control
WB: human MCF-7 whole cell, human HepG2 whole cell, human Hela whole cell, human HCCT tissue, rat liver tissue, rat RH35 whole cell, mouse liver tissue
IHC: human adenocarcinoma of lung tissue, human ovarian carcinoma tissue
ICC/IF: MCF-7 cell
FCM: JK cell
Validation Images & Assay Conditions
Click image to see more details

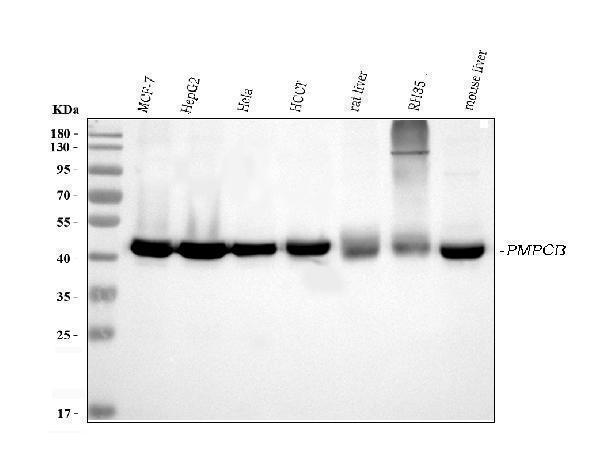

Figure 1. Western blot analysis of PMPCB using anti-PMPCB antibody (M11793).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human MCF-7 whole cell lysates,
Lane 2: human HepG2 whole cell lysates,
Lane 3: human Hela whole cell lysates,
Lane 4: human HCCT tissue lysates,
Lane 5: rat liver tissue lysates,
Lane 6: rat RH35 whole cell lysates,
Lane 7: mouse liver tissue lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with mouse anti-PMPCB antigen affinity purified monoclonal antibody (Catalog # M11793) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-mouse IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1001) with Tanon 5200 system. A specific band was detected for PMPCB at approximately 43 kDa. The expected band size for PMPCB is at 54 kDa.
Click image to see more details
Figure 2. IHC analysis of PMPCB using anti-PMPCB antibody (M11793).
PMPCB was detected in a paraffin-embedded section of human adenocarcinoma of lung tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml mouse anti-PMPCB Antibody (M11793) overnight at 4°C. Peroxidase Conjugated Goat Anti-mouse IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Mouse IgG Super Vision Assay Kit (Catalog # SV0001) with DAB as the chromogen.
Click image to see more details
Figure 3. IHC analysis of PMPCB using anti-PMPCB antibody (M11793).
PMPCB was detected in a paraffin-embedded section of human ovarian carcinoma tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml mouse anti-PMPCB Antibody (M11793) overnight at 4°C. Peroxidase Conjugated Goat Anti-mouse IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Mouse IgG Super Vision Assay Kit (Catalog # SV0001) with DAB as the chromogen.
Click image to see more details
Figure 4. IF analysis of PMPCB using anti-PMPCB antibody (M11793).
PMPCB was detected in an immunocytochemical section of MCF-7 cells. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent (AR0022) for 15 mins. The cells were blocked with 10% goat serum. And then incubated with 5 μg/mL mouse anti-PMPCB Antibody (M11793) overnight at 4°C. DyLight®488 Conjugated Goat Anti-Mouse IgG (BA1126) was used as secondary antibody at 1:100 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.
Click image to see more details
Figure 5. Flow Cytometry analysis of JK cells using anti-PMPCB antibody (M11793).
Overlay histogram showing JK cells stained with M11793 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with mouse anti-PMPCB Antibody (M11793, 1 μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-mouse IgG (BA1126, 5-10 μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was mouse IgG (1 μg/1x106) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Protein Target Info & Infographic
Gene/Protein Information For PMPCB (Source: Uniprot.org, NCBI)
Gene Name
PMPCB
Full Name
Mitochondrial-processing peptidase subunit beta
Weight
54.366kDa
Superfamily
peptidase M16 family
Alternative Names
ATP synthase D chain mitochondrial antibody|ATP synthase H+ transporting mitochondrial F1F0 subunit antibody|ATP synthase H+ transporting mitochondrial F1F0 subunit d antibody|ATP synthase subunit d antibody|ATP synthase subunit d, mitochondrial antibody|ATP synthase, H+ transporting, mitochondrial F0 complex, subunit d antibody|ATP5H antibody|ATP5H_HUMAN antibody|ATP5JD antibody|ATPase subunit d antibody|ATPQ antibody|mitochondrial antibody|My032 protein antibody PMPCB Beta-MPP, MAS1, MPP11, MPPB, MPPP52, P-52 peptidase, mitochondrial processing subunit beta mitochondrial-processing peptidase subunit beta|mitochondrial processing peptidase beta subunit|peptidase (mitochondrial processing) beta|peptidase, mitochondrial processing beta subunit
*If product is indicated to react with multiple species, protein info is based on the gene entry specified above in "Species".For more info on PMPCB, check out the PMPCB Infographic
We have 30,000+ of these available, one for each gene! Check them out.
In this infographic, you will see the following information for PMPCB: database IDs, superfamily, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post-translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact [email protected].
