Product Info Summary
| SKU: | M00175 |
|---|---|
| Size: | 100 μg/vial |
| Reactive Species: | Human |
| Host: | Mouse |
| Application: | IF, ICC, WB |
Customers Who Bought This Also Bought
Product info
Product Name
Anti-MPI Antibody Picoband® (monoclonal, 11I4)
View all Mannose Phosphate Isomerase Antibodies
SKU/Catalog Number
M00175
Size
100 μg/vial
Form
Lyophilized
Description
Boster Bio Anti-MPI Antibody Picoband® (monoclonal, 11I4) catalog # M00175. Tested in IF, ICC, WB applications. This antibody reacts with Human. The brand Picoband indicates this is a premium antibody that guarantees superior quality, high affinity, and strong signals with minimal background in Western blot applications. Only our best-performing antibodies are designated as Picoband, ensuring unmatched performance.
Storage & Handling
Store at -20˚C for one year from date of receipt. After reconstitution, at 4˚C for one month. It can also be aliquotted and stored frozen at -20˚C for six months. Avoid repeated freeze-thaw cycles.
Cite This Product
Anti-MPI Antibody Picoband® (monoclonal, 11I4) (Boster Biological Technology, Pleasanton CA, USA, Catalog # M00175)
Host
Mouse
Contents
Each vial contains 4mg Trehalose, 0.9mg NaCl, 0.2mg Na2HPO4, 0.01mg NaN3.
Clonality
Monoclonal
Clone Number
11I4
Isotype
Mouse IgG1
Immunogen
E. coli-derived human MPI recombinant protein (Position: A2-K99). Human MPI shares 88.8% and 86.7% amino acid (aa) sequence identity with mouse and rat MPI, respectively.
*Blocking peptide can be purchased. Costs vary based on immunogen length. Contact us for pricing.
Cross-reactivity
No cross-reactivity with other proteins.
Reactive Species
M00175 is reactive to MPI in Human
Reconstitution
Add 0.2ml of distilled water will yield a concentration of 500μg/ml.
Observed Molecular Weight
47 kDa
Calculated molecular weight
46659 MW
Background of Mannose Phosphate Isomerase
Mannose-6 phosphate isomerase (MPI), alternately phosphomannose isomerase (PMI), is an enzyme which facilitates the interconversion of fructose 6-phosphate (F6P) and mannose-6-phosphate (M6P). It also plays a critical role in maintaining the supply of D-mannose derivatives, which are required for most glycosylation reactions. Mutations in the MPI gene were found in patients with carbohydrate-deficient glycoprotein syndrome, type Ib. Alternative splicing results in multiple transcript variants. This MPI gene is mapped to 15q24.1.
Antibody Validation
Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.
Application & Images
Applications
M00175 is guaranteed for IF, ICC, WB Boster Guarantee
Assay Dilutions Recommendation
The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.
Western blot, 0.1-0.5μg/ml, Human
Immunocytochemistry/Immunofluorescence, 5μg/ml, Human
Positive Control
WB: human Caco-2 whole cell, human Hela whole cell,
ICC/IF: MCF-7 cell
Validation Images & Assay Conditions
Click image to see more details

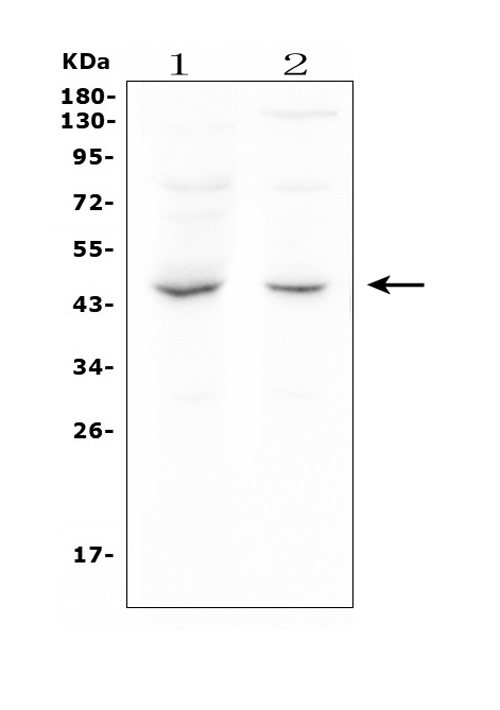

Figure 1. Western blot analysis of MPI using anti-MPI antibody (M00175).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: human Caco-2 whole cell lysates
Lane 2: human Hela whole cell lysates
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with mouse anti-MPI antigen affinity purified monoclonal antibody (Catalog # M00175) at 0.5 μg/mL overnight at 4℃, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-mouse IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1001) with Tanon 5200 system. A specific band was detected for MPI at approximately 47KD. The expected band size for MPI is at 47KD.
Click image to see more details
Figure 2. IF analysis of MPI using anti-MPI antibody (M00175).
MPI was detected in immunocytochemical section of MCF-7 cells. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent (AR0022) for 15 mins. The cells were blocked with 10% goat serum. And then incubated with 5μg/mL mouse anti-MPI Antibody (M00175) overnight at 4°C. DyLight®488 Conjugated Goat Anti-Mouse IgG (BA1126) was used as secondary antibody at 1:100 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.
Protein Target Info & Infographic
Gene/Protein Information For MPI (Source: Uniprot.org, NCBI)
Gene Name
MPI
Full Name
Mannose-6-phosphate isomerase
Weight
46659 MW
Superfamily
mannose-6-phosphate isomerase type 1 family
Alternative Names
Mannose-6-phosphate isomerase; Phosphohexomutase; Phosphomannose isomerase; PMI; MPI; PMI1 MPI CDG1B, PMI, PMI1 mannose phosphate isomerase mannose-6-phosphate isomerase|phosphohexomutase|phosphomannose isomerase 1
*If product is indicated to react with multiple species, protein info is based on the gene entry specified above in "Species".For more info on MPI, check out the MPI Infographic
We have 30,000+ of these available, one for each gene! Check them out.
In this infographic, you will see the following information for MPI: database IDs, superfamily, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post-translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact [email protected].
