Product Info Summary
| SKU: | PA1377 |
|---|---|
| Size: | 100 μg/vial |
| Reactive Species: | Human, Mouse, Rat |
| Host: | Rabbit |
| Application: | Flow Cytometry, IF, IHC, ICC, WB |
Customers Who Bought This Also Bought
Product info
Product Name
Anti-MEK3/MAP2K3 Antibody Picoband®
SKU/Catalog Number
PA1377
Size
100 μg/vial
Form
Lyophilized
Description
Boster Bio Anti-MEK3/MAP2K3 Antibody catalog # PA1377. Tested in Flow Cytometry, IF, IHC, ICC, WB applications. This antibody reacts with Human, Mouse, Rat. The brand Picoband indicates this is a premium antibody that guarantees superior quality, high affinity, and strong signals with minimal background in Western blot applications. Only our best-performing antibodies are designated as Picoband, ensuring unmatched performance.
Storage & Handling
Store at -20˚C for one year from date of receipt. After reconstitution, at 4˚C for one month. It can also be aliquotted and stored frozen at -20˚C for six months. Avoid repeated freeze-thaw cycles.
Cite This Product
Anti-MEK3/MAP2K3 Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # PA1377)
Host
Rabbit
Contents
Each vial contains 5mg BSA, 0.9mg NaCl, 0.2mg Na2HPO4, 0.05mg Thimerosal, 0.05mg NaN3.
Clonality
Polyclonal
Isotype
Rabbit IgG
Immunogen
A synthetic peptide corresponding to a sequence at the C-terminus of human MEK3, identical to the related mouse and rat sequences.
*Blocking peptide can be purchased. Costs vary based on immunogen length. Contact us for pricing.
Cross-reactivity
No cross-reactivity with other proteins
Reactive Species
PA1377 is reactive to MAP2K3 in Human, Mouse, Rat
Reconstitution
Add 0.2ml of distilled water will yield a concentration of 500ug/ml.
Observed Molecular Weight
39 kDa
Calculated molecular weight
39318 MW
Background of MKK3/MEK3
Dual specificity mitogen-activated protein kinase kinase 3 is an enzyme that in humans is encoded by the MAP2K3 gene. The protein encoded by this gene is a dual specificity protein kinase that belongs to the MAP kinase kinase family. This kinase is activated by mitogenic and environmental stress, and participates in the MAP kinase-mediated signaling cascade. It phosphorylates and thus activates MAPK14/p38-MAPK. This kinase can be activated by insulin, and is necessary for the expression of glucose transporter. Expression of RAS oncogene is found to result in the accumulation of the active form of this kinase, which thus leads to the constitutive activation of MAPK14, and confers oncogenic transformation of primary cells. Rampoldi et al. (1997) localized the MAP2K3 gene to 17q11.2.
Antibody Validation
Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.
Application & Images
Applications
PA1377 is guaranteed for Flow Cytometry, IF, IHC, ICC, WB Boster Guarantee
Assay Dilutions Recommendation
The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.
Western blot, 0.1-0.5μg/ml, Human, Mouse, Rat
Immunohistochemistry (Paraffin-embedded Section), 0.5-1μg/ml, Human, Mouse, Rat, By Heat
Immunocytochemistry/Immunofluorescence, 5μg/ml, Human
Flow Cytometry (Fixed), 1-3μg/1x106 cells, Human
Positive Control
WB: human A549 whole cell, human CACO-2 whole cell, human HEK293 whole cell, human HEPG2 whole cell, human PC-3 whole cell, human HELA whole cell, human THP-1 whole cell, rat brain tissue, rat heart tissue, rat NRK whole cell, mouse Neuro-2a whole cell, mouse HEPA1-6 whole cell
IHC: mouse brain tissue, rat brain tissue, human intestine cancer tissue, rat intestine tissue, human lung cancer tissue, human breast cancer tissue, mouse intestine tissue
FCM: A549 cell
Validation Images & Assay Conditions
Click image to see more details
Figure 1. Western blot analysis of MAP2K3 using anti-MAP2K3 antibody (PA1377).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: human A549 whole cell lysates,
Lane 2: human CACO-2 whole cell lysates,
Lane 3: human HEK293 whole cell lysates,
Lane 4: human HEPG2 whole cell lysates,
Lane 5: human PC-3 whole cell lysates,
Lane 6: human HELA whole cell lysates,
Lane 7: human THP-1 whole cell lysates,
Lane 8: rat brain tissue lysates,
Lane 9: rat heart tissue lysates,
Lane 10: rat NRK whole cell lysates,
Lane 11: mouse Neuro-2a whole cell lysates,
Lane 12: mouse HEPA1-6 whole cell lysates.
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-MAP2K3 antigen affinity purified polyclonal antibody (Catalog # PA1377) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for MAP2K3 at approximately 39KD. The expected band size for MAP2K3 is at 39KD.
Click image to see more details
Figure 2. IHC analysis of MAP2K3 using anti-MAP2K3 antibody (PA1377).
MAP2K3 was detected in paraffin-embedded section of mouse brain tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1μg/ml rabbit anti-MAP2K3 Antibody (PA1377) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Click image to see more details
Figure 3. IHC analysis of MAP2K3 using anti-MAP2K3 antibody (PA1377).
MAP2K3 was detected in paraffin-embedded section of rat brain tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1μg/ml rabbit anti-MAP2K3 Antibody (PA1377) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Click image to see more details

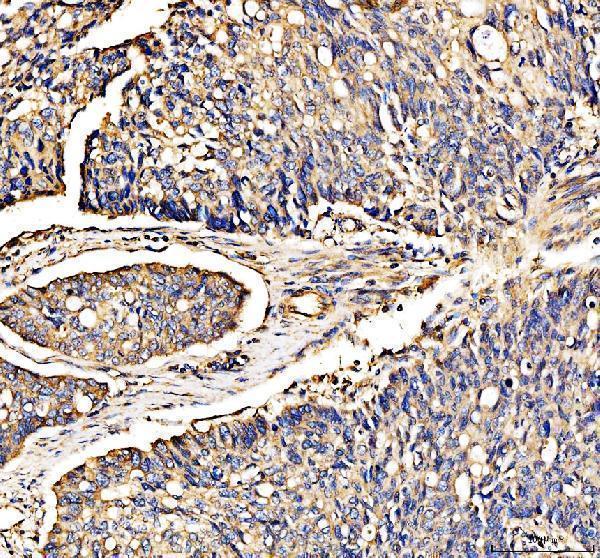

Figure 4. IHC analysis of MAP2K3 using anti-MAP2K3 antibody (PA1377).
MAP2K3 was detected in paraffin-embedded section of human intestine cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1μg/ml rabbit anti-MAP2K3 Antibody (PA1377) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Click image to see more details
Figure 5. IHC analysis of MAP2K3 using anti-MAP2K3 antibody (PA1377).
MAP2K3 was detected in paraffin-embedded section of rat intestine tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1μg/ml rabbit anti-MAP2K3 Antibody (PA1377) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Click image to see more details
Figure 6. IHC analysis of MAP2K3 using anti-MAP2K3 antibody (PA1377).
MAP2K3 was detected in paraffin-embedded section of human lung cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1μg/ml rabbit anti-MAP2K3 Antibody (PA1377) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Click image to see more details
Figure 7. IHC analysis of MAP2K3 using anti-MAP2K3 antibody (PA1377).
MAP2K3 was detected in paraffin-embedded section of human breast cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1μg/ml rabbit anti-MAP2K3 Antibody (PA1377) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Click image to see more details
Figure 8. IHC analysis of MAP2K3 using anti-MAP2K3 antibody (PA1377).
MAP2K3 was detected in paraffin-embedded section of mouse intestine tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1μg/ml rabbit anti-MAP2K3 Antibody (PA1377) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Click image to see more details
Figure 9. Flow Cytometry analysis of A549 cells using anti-MAP2K3 antibody (PA1377).
Overlay histogram showing A549 cells stained with PA1377 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-MAP2K3 Antibody (PA1377, 1μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x106) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Protein Target Info & Infographic
Gene/Protein Information For MAP2K3 (Source: Uniprot.org, NCBI)
Gene Name
MAP2K3
Full Name
Dual specificity mitogen-activated protein kinase kinase 3
Weight
39318 MW
Superfamily
protein kinase superfamily
Alternative Names
Dual specificity mitogen-activated protein kinase kinase 3;MAP kinase kinase 3;MAPKK 3;2.7.12.2;MAPK/ERK kinase 3;MEK 3;Stress-activated protein kinase kinase 2;SAPK kinase 2;SAPKK-2;SAPKK2;MAP2K3;MEK3, MKK3, PRKMK3, SKK2; MAP2K3 MAPKK3, MEK3, MKK3, PRKMK3, SAPKK-2, SAPKK2 mitogen-activated protein kinase kinase 3 dual specificity mitogen-activated protein kinase kinase 3|MAP kinase kinase 3|MAPK/ERK kinase 3|MAPKK 3|MEK 3|SAPK kinase 2|stress-activated protein kinase kinase 2
*If product is indicated to react with multiple species, protein info is based on the gene entry specified above in "Species".For more info on MAP2K3, check out the MAP2K3 Infographic
We have 30,000+ of these available, one for each gene! Check them out.
In this infographic, you will see the following information for MAP2K3: database IDs, superfamily, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post-translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact [email protected].
Specific Publications For Anti-MEK3/MAP2K3 Antibody Picoband® (PA1377)
Hello CJ!
PA1377 has been cited in 1 publications:
*The publications in this section are manually curated by our staff scientists. They may differ from Bioz's machine gathered results. Both are accurate. If you find a publication citing this product but is missing from this list, please let us know we will issue you a thank-you coupon.
Xu G, Zhang Y, Wei J, Jia W, Ge Z, Zhang Z, Liu X. Bmc Cancer. 2013 Oct 10;13:469. Doi: 10.1186/1471-2407-13-469. Microrna-21 Promotes Hepatocellular Carcinoma Hepg2 Cell Proliferation Through Repression Of Mitogen-Activated Protein Kinase-Kinase 3.
