Product Info Summary
| SKU: | PB9096 |
|---|---|
| Size: | 100 μg/vial |
| Reactive Species: | Human |
| Host: | Rabbit |
| Application: | Flow Cytometry, IF, IHC, WB |
Customers Who Bought This Also Bought
Product info
Product Name
Anti-CD45/PTPRC Antibody Picoband®
SKU/Catalog Number
PB9096
Size
100 μg/vial
Form
Lyophilized
Description
Boster Bio Anti-CD45/PTPRC Antibody Picoband® catalog # PB9096. Tested in Flow Cytometry, IF, IHC, WB applications. This antibody reacts with Human. The brand Picoband indicates this is a premium antibody that guarantees superior quality, high affinity, and strong signals with minimal background in Western blot applications. Only our best-performing antibodies are designated as Picoband, ensuring unmatched performance.
Storage & Handling
Store at -20˚C for one year from date of receipt. After reconstitution, at 4˚C for one month. It can also be aliquotted and stored frozen at -20˚C for six months. Avoid repeated freeze-thaw cycles.
Cite This Product
Anti-CD45/PTPRC Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # PB9096)
Host
Rabbit
Contents
Each vial contains 5mg BSA, 0.9mg NaCl, 0.2mg Na2HPO4, 0.05mg NaN3.
Clonality
Polyclonal
Isotype
Rabbit IgG
Immunogen
E.coli-derived human CD45 recombinant protein (Position: R1113-S1304). Human CD45 shares 68% amino acid (aa) sequence identity with both mouse and rat CD45.
*Blocking peptide can be purchased. Costs vary based on immunogen length. Contact us for pricing.
Cross-reactivity
No cross-reactivity with other proteins
Reactive Species
PB9096 is reactive to PTPRC in Human
Reconstitution
Add 0.2ml of distilled water will yield a concentration of 500ug/ml.
Observed Molecular Weight
180-250 kDa
Calculated molecular weight
147254 MW
Background of PTPRC
CD45 (Cluster of Differentiation 45), also known as PTPRC, LCA or CD45R, is an enzyme that, in humans, is encoded by the PTPRC gene. CD45 is a member of the protein tyrosine phosphatase (PTP) family. CD45 is a major high molecular mass leukocyte cell surface molecule which is also an integral membrane protein tyrosine phosphatase. The cytogenetic location of CD45 is 1q31.3-q32.1. This gene is especially a prototype for transmembrane protein-tyrosine phosphatase (PTP). Targeted disruption of the CD45 gene leads to enhanced cytokine and interferon receptor-mediated activation of JAKs and STAT proteins. In vitro, CD45 directly dephosphorylates and binds to JAKs. Functionally, CD45 negatively regulates interleukin-3-mediated cellular proliferation, erythropoietin-dependent hematopoiesis, and antiviral responses in vitro and in vivo. CD45 has been best studied in T cells, where it determines T cell receptor signaling thresholds. CD45 is moved into or out of the immunological synapse (IS) membrane microdomain depending on the relative influence of interaction with the extracellular galectin lattice or the intracellular actin cytoskeleton. Galectin interaction can be finetuned by varying usage of the heavily Oglycosylated spliced regions and sialylation of Nlinked carbohydrates.
Antibody Validation
Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.
Application & Images
Applications
PB9096 is guaranteed for Flow Cytometry, IF, IHC, WB Boster Guarantee
Assay Dilutions Recommendation
The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.
Western blot, 0.1-0.5μg/ml, Human
Immunohistochemistry (Paraffin-embedded Section), 0.5-1μg/ml, Human, By Heat
Immunofluorescence, 2μg/ml, Human
Flow Cytometry (Fixed), 1-3μg/1x106 cells, Human
Positive Control
WB: human Jurkat whole cell, human Raji whole cell
IHC: human tonsil tissue
IF: human tonsil tissue, human tonsil tissue
FCM: THP-1 cell
Validation Images & Assay Conditions
Click image to see more details

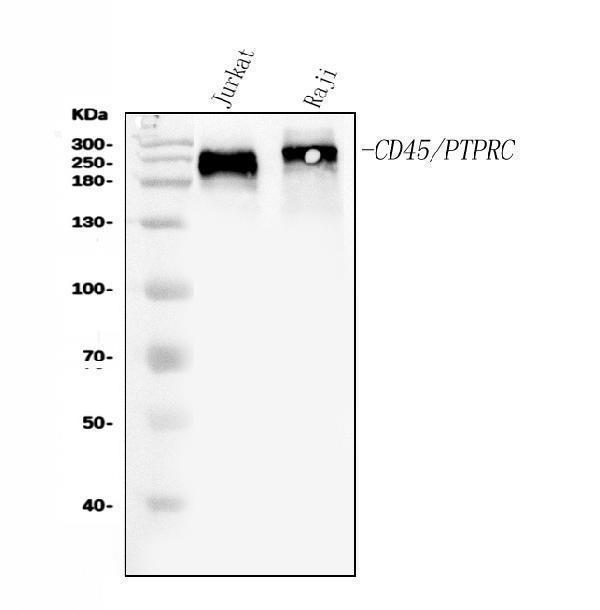

Figure 1. Western blot analysis of CD45 using anti-CD45 antibody (PB9096).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Jurkat whole cell lysates,
Lane 2: human Raji whole cell lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-CD45 antigen affinity purified polyclonal antibody (Catalog # PB9096) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for CD45 at approximately 180-250 kDa. The expected band size for AFP is at 147 kDa.
Click image to see more details

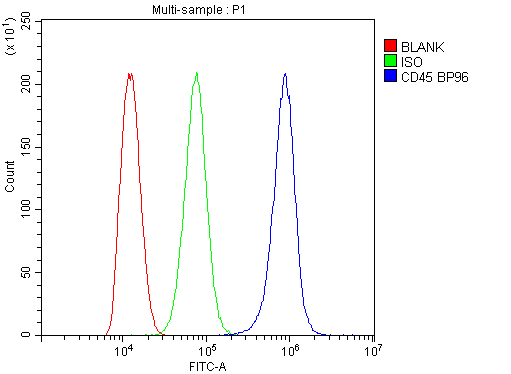

Figure 5. Flow Cytometry analysis of THP-1 cells using anti-CD45 antibody (PB9096).
Overlay histogram showing THP-1 cells stained with PB9096 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-CD45 Antibody (PB9096,1μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x106) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Click image to see more details
Figure 2. IHC analysis of CD45 using anti-CD45 antibody (PB9096).
CD45 was detected in a paraffin-embedded section of human tonsil tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1 μg/ml rabbit anti-CD45 Antibody (PB9096) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Click image to see more details
Figure 3. IF analysis of CD45 using anti-CD45 antibody (PB9096)
CD45 was detected in paraffin-embedded section of human tonsil tissues. Heat mediated antigen retrieval was performed in citrate buffer (pH6, epitope retrieval solution ) for 20 mins. The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1μg/mL rabbit anti-CD45 Antibody (PB9096) overnight at 4°C. DyLight®488 Conjugated Goat Anti-Rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.
Click image to see more details
Figure 4. IF analysis of CD45 using anti-CD45 antibody (PB9096)
CD45 was detected in paraffin-embedded section of human tonsil tissues. Heat mediated antigen retrieval was performed in citrate buffer (pH6, epitope retrieval solution ) for 20 mins. The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 1μg/mL rabbit anti-CD45 Antibody (PB9096) overnight at 4°C. DyLight®488 Conjugated Goat Anti-Rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.
Protein Target Info & Infographic
Gene/Protein Information For PTPRC (Source: Uniprot.org, NCBI)
Gene Name
PTPRC
Full Name
Receptor-type tyrosine-protein phosphatase C
Weight
147254 MW
Superfamily
protein-tyrosine phosphatase family
Alternative Names
Receptor-type tyrosine-protein phosphatase C;3.1.3.48;Leukocyte common antigen;L-CA;T200;CD45;PTPRC;CD45; PTPRC B220, CD45, CD45R, GP180, L-CA, LCA, LY5, T200 protein tyrosine phosphatase receptor type C receptor-type tyrosine-protein phosphatase C|CD45 |T200 glycoprotein|T200 leukocyte common |protein tyrosine phosphatase, receptor type, c polypeptide
*If product is indicated to react with multiple species, protein info is based on the gene entry specified above in "Species".For more info on PTPRC, check out the PTPRC Infographic
We have 30,000+ of these available, one for each gene! Check them out.
In this infographic, you will see the following information for PTPRC: database IDs, superfamily, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post-translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact [email protected].
Specific Publications For Anti-CD45/PTPRC Antibody Picoband® (PB9096)
Hello CJ!
PB9096 has been cited in 6 publications:
*The publications in this section are manually curated by our staff scientists. They may differ from Bioz's machine gathered results. Both are accurate. If you find a publication citing this product but is missing from this list, please let us know we will issue you a thank-you coupon.
CD11b deficiency suppresses intestinal tumor growth by reducing myeloid cell recruitment
Fas counterattack in cholangiocarcinoma: A mechanism for immune evasion in human hilar cholangiocarcinomas
Isolation and morphological characterization of ovine amniotic fluid mesenchymal stem cells
Huang Y, Jia X, Bai K, Gong X, Fan Y. Arch Med Res. 2010 Oct;41(7):497-505. Doi: 10.1016/J.Arcmed.2010.10.002. Effect Of Fluid Shear Stress On Cardiomyogenic Differentiation Of Rat Bone Marrow Mesenchymal Stem Cells.
Liu D, Wang Y, Ye Y, Yin G, Chen L. Cell Immunol. 2014 May-Jun;289(1-2):7-14. Doi: 10.1016/J.Cellimm.2014.01.007. Epub 2014 Feb 2. Distinct Molecular Basis For Endothelial Differentiation: Gene Expression Profiles Of Human Mesenchymal Stem Cells V...
Li X, Huang Y, Zheng L, Liu H, Niu X, Huang J, Zhao F, Fan Y. J Biomed Mater Res A. 2014 Apr;102(4):1092-101. Doi: 10.1002/Jbm.A.34774. Epub 2013 Jun 11. Effect Of Substrate Stiffness On The Functions Of Rat Bone Marrow And Adipose Tissue Derived ...
Recommended Resources
Here are featured tools and databases that you might find useful.
- Boster's Pathways Library
- Protein Databases
- Bioscience Research Protocol Resources
- Data Processing & Analysis Software
- Photo Editing Software
- Scientific Literature Resources
- Research Paper Management Tools
- Molecular Biology Software
- Primer Design Tools
- Bioinformatics Tools
- Phylogenetic Tree Analysis
Customer Reviews
Have you used Anti-CD45/PTPRC Antibody Picoband®?
Submit a review and receive an Amazon gift card.
- $30 for a review with an image
0 Reviews For Anti-CD45/PTPRC Antibody Picoband®
Customer Q&As
Have a question?
Find answers in Q&As, reviews.
Can't find your answer?
Submit your question
5 Customer Q&As for Anti-CD45/PTPRC Antibody Picoband®
Question
I am interested in using your anti-CD45/PTPRC antibody for immunoglobulin biosynthetic process studies. Has this antibody been tested with western blotting on raji whole cell lysate? We would like to see some validation images before ordering.
P. Williams
Verified customer
Asked: 2020-03-18
Answer
I appreciate your inquiry. This PB9096 anti-CD45/PTPRC antibody is validated on human tonsil tissue, jurkat whole cell lysate, raji whole cell lysate. It is guaranteed to work for Flow Cytometry, IF, IHC-P, WB in human. Our Boster guarantee will cover your intended experiment even if the sample type has not been be directly tested.
Boster Scientific Support
Answered: 2020-03-18
Question
Our lab were well pleased with the WB result of your anti-CD45/PTPRC antibody. However we have been able to see positive staining in t-cell cell membrane using this antibody. Is that expected? Could you tell me where is PTPRC supposed to be expressed?
Verified Customer
Verified customer
Asked: 2019-11-19
Answer
From what I have seen in literature, t-cell does express PTPRC. Generally PTPRC expresses in cell membrane. Regarding which tissues have PTPRC expression, here are a few articles citing expression in various tissues:
Erythroleukemia, Pubmed ID: 23186163
Leukemic T-cell, Pubmed ID: 19349973, 19690332
Liver, Pubmed ID: 19159218
Lymphocyte, Pubmed ID: 2824653
Placenta, Pubmed ID: 2971730, 2845400
Synovium, Pubmed ID: 14702039
T-cell, Pubmed ID: 19367720
Boster Scientific Support
Answered: 2019-11-19
Question
We have been able to see staining in human leukemic t-cell. Are there any suggestions? Is anti-CD45/PTPRC antibody supposed to stain leukemic t-cell positively?
Verified Customer
Verified customer
Asked: 2019-08-02
Answer
From literature leukemic t-cell does express PTPRC. From Uniprot.org, PTPRC is expressed in blood, lymphocyte, synovium, placenta, t-cell, liver, leukemic t-cell, erythroleukemia, among other tissues. Regarding which tissues have PTPRC expression, here are a few articles citing expression in various tissues:
Erythroleukemia, Pubmed ID: 23186163
Leukemic T-cell, Pubmed ID: 19349973, 19690332
Liver, Pubmed ID: 19159218
Lymphocyte, Pubmed ID: 2824653
Placenta, Pubmed ID: 2971730, 2845400
Synovium, Pubmed ID: 14702039
T-cell, Pubmed ID: 19367720
Boster Scientific Support
Answered: 2019-08-02
Question
We ordered your anti-CD45/PTPRC antibody for WB on liver a few months ago. I am using human, and We are going to use the antibody for Flow Cytometry next. We need examining liver as well as blood in our next experiment. Do you have any suggestion on which antibody would work the best for Flow Cytometry?
M. Zhao
Verified customer
Asked: 2013-10-08
Answer
I viewed the website and datasheets of our anti-CD45/PTPRC antibody and I see that PB9096 has been tested on human in both WB and Flow Cytometry. Thus PB9096 should work for your application. Our Boster satisfaction guarantee will cover this product for Flow Cytometry in human even if the specific tissue type has not been validated. We do have a comprehensive range of products for Flow Cytometry detection and you can check out our website bosterbio.com to find out more information about them.
Boster Scientific Support
Answered: 2013-10-08
Question
We are currently using anti-CD45/PTPRC antibody PB9096 for human tissue, and we are satisfied with the Flow Cytometry results. The species of reactivity given in the datasheet says human. Is it true that the antibody can work on goat tissues as well?
M. Yang
Verified customer
Asked: 2013-06-03
Answer
The anti-CD45/PTPRC antibody (PB9096) has not been validated for cross reactivity specifically with goat tissues, but there is a good chance of cross reactivity. We have an innovator award program that if you test this antibody and show it works in goat you can get your next antibody for free. Please contact me if I can help you with anything.
Boster Scientific Support
Answered: 2013-06-03
