Product Info Summary
| SKU: | A08267-4 |
|---|---|
| Size: | 100 μg/vial |
| Reactive Species: | Human, Rat |
| Host: | Rabbit |
| Application: | Flow Cytometry, WB |
Customers Who Bought This Also Bought
Product info
Product Name
Anti-Calponin 3/CNN3 Antibody Picoband®
View all Acidic Calponin Antibodies
SKU/Catalog Number
A08267-4
Size
100 μg/vial
Form
Lyophilized
Description
Boster Bio Anti-Calponin 3/CNN3 Antibody Picoband® catalog # A08267-4. Tested in Flow Cytometry, WB applications. This antibody reacts with Human, Rat. The brand Picoband indicates this is a premium antibody that guarantees superior quality, high affinity, and strong signals with minimal background in Western blot applications. Only our best-performing antibodies are designated as Picoband, ensuring unmatched performance.
Storage & Handling
At -20°C for one year from date of receipt. After reconstitution, at 4°C for one month. It can also be aliquotted and stored frozen at -20°C for six months. Avoid repeated freezing and thawing.
Cite This Product
Anti-Calponin 3/CNN3 Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # A08267-4)
Host
Rabbit
Contents
Each vial contains 4 mg Trehalose, 0.9 mg NaCl, 0.2 mg Na2HPO4.
Clonality
Polyclonal
Isotype
Rabbit IgG
Immunogen
A synthetic peptide corresponding to a sequence at the C-terminus of human Calponin 3/CNN3, identical to the related mouse and rat sequences.
*Blocking peptide can be purchased. Costs vary based on immunogen length. Contact us for pricing.
Cross-reactivity
No cross-reactivity with other proteins.
Reactive Species
A08267-4 is reactive to CNN3 in Human, Rat
Reconstitution
Adding 0.2 ml of distilled water will yield a concentration of 500 μg/ml.
Observed Molecular Weight
39 kDa
Calculated molecular weight
36.414kDa
Background of Acidic Calponin
Calponin 3. acidic is a protein that in humans is encoded by the CNN3 gene. This gene encodes a protein with a markedly acidic C terminus; the basic N-terminus is highly homologous to the N-terminus of a related gene, CNN1. Members of the CNN gene family all contain similar tandemly repeated motifs. This encoded protein is associated with the cytoskeleton but is not involved in contraction.
Antibody Validation
Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.
Application & Images
Applications
A08267-4 is guaranteed for Flow Cytometry, WB Boster Guarantee
Assay Dilutions Recommendation
The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.
Western blot, 0.25-0.5 μg/ml, Human
Flow Cytometry (Fixed), 1-3 μg/1x106 cells, Rat
Positive Control
WB: human 293T whole cell, human U251 whole cell
FCM: C6 cell
Validation Images & Assay Conditions
Click image to see more details

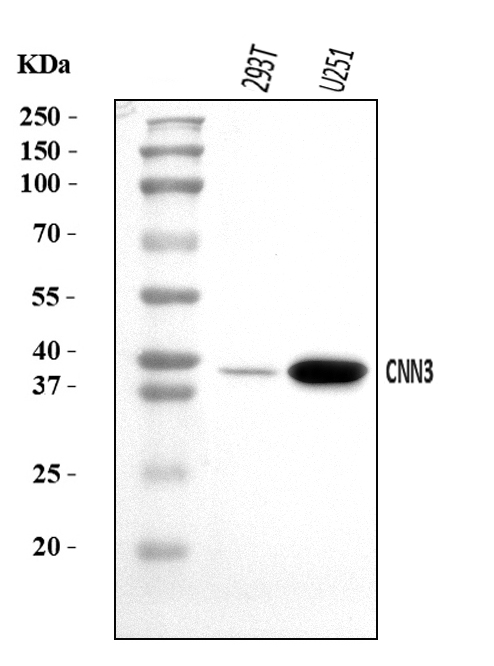

Figure 1. Western blot analysis of Calponin 3/CNN3 using anti-Calponin 3/CNN3 antibody (A08267-4).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human 293T whole cell lysates,
Lane 2: human U251 whole cell lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-Calponin 3/CNN3 antigen affinity purified polyclonal antibody (Catalog # A08267-4) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for Calponin 3/CNN3 at approximately 39 kDa. The expected band size for Calponin 3/CNN3 is at 39 kDa.
Click image to see more details
Figure 2. Flow Cytometry analysis of C6 cells using anti-Calponin 3/CNN3 antibody (A08267-4).
Overlay histogram showing C6 cells stained with A08267-4 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-Calponin 3/CNN3 Antibody (A08267-4, 1 μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10 μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1 μg/1x106) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Protein Target Info & Infographic
Gene/Protein Information For CNN3 (Source: Uniprot.org, NCBI)
Gene Name
CNN3
Full Name
Calponin-3
Weight
36.414kDa
Superfamily
calponin family
Alternative Names
Neuropeptides B/W receptor type 1; G-protein coupled receptor 7; NPBWR1; GPR7 CNN3 calponin 3 calponin-3|calponin 3, acidic|dJ639P13.2.2 (acidic calponin 3)
*If product is indicated to react with multiple species, protein info is based on the gene entry specified above in "Species".For more info on CNN3, check out the CNN3 Infographic
We have 30,000+ of these available, one for each gene! Check them out.
In this infographic, you will see the following information for CNN3: database IDs, superfamily, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post-translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact [email protected].
