Click image to see more details
Product Info Summary
| SKU: | EK2219 |
|---|---|
| Size: | 96 wells/kit, with removable strips. |
| Reactive Species: | Human |
| Application: | ELISA |
| Sample Types: | cell culture supernatants, serum and plasma (heparin, EDTA) |
Product info
Product Name
Human ICAM4 ELISA Kit PicoKine®
SKU/Catalog Number
EK2219
Size
96 wells/kit, with removable strips.
*Question: How many samples can I assay/run in this kit?
Description
Human ICAM4 PicoKine®® Quick ELISA Kit PicoKine® ELISA Kit (96 Tests). Quantitate Human ICAM4 in cell culture supernatants, serum and plasma (heparin, EDTA). Sensitivity: 15 pg/ml. The brand Picokine indicates this is a premium quality ELISA kit. Each Picokine kit delivers precise quantification, high sensitivity, and excellent reproducibility. Only our most reliable and effective kits qualify as Picokine, guaranteeing top-tier results for your assays.
Storage & Handling
Store at 4°C for 6 months, at -20°C for 12 months. Avoid multiple freeze-thaw cycles (Ships with gel ice, can store for up to 3 days in room temperature. Freeze upon receiving.)
Cite This Product
Human ICAM4 ELISA Kit PicoKine® (Boster Biological Technology, Pleasanton CA, USA, Catalog # EK2219)
Clonality of Antibodies
See Datasheet for details
Standard Protein
Expression system for standard: NS0; Immunogen sequence: A31-A240
Sensitivity
<15 pg/ml
Assay Range
31.2 pg/ml - 2,000 pg/ml
Standard Dilution Instructions
See datasheet of EK2219 for more details
Cross-reactivity
There is no detectable cross-reactivity with other relevant proteins.
Reactive Species
EK2219 is reactive to ICAM4 in Human samples
Validated Sample Types
cell culture supernatants, serum and plasma (heparin, EDTA)
Application Guarantee
EK2219 is guaranteed for ELISA in Human by Boster Guarantee
See how Boster Bio validate our ELISA kits: ELISA Validation Information
Background of ICAM-4
This gene encodes the Landsteiner-Wiener (LW) blood group antigen(s) that belongs to the immunoglobulin (Ig) superfamily, and that shares similarity with the intercellular adhesion molecule (ICAM) protein family. This ICAM protein contains 2 Ig-like C2-type domains and binds to the leukocyte adhesion LFA-1 protein. The molecular basis of the LW(A)/LW(B) blood group antigens is a single aa variation at position 100; Gln-100=LW(A) and Arg-100=LW(B). Alternative splicing results in multiple transcript variants encoding distinct isoforms.
Kit Components
| Catalog Number | Description | Quantity |
|---|---|---|
| EK2219-CAP | Anti-Human ICAM4 Pre-coated 96-well strip microplate | 1 |
| EK2219-ST | Human ICAM4 Standard | 2 vials, 10 ng/tube |
| EK2219-DA | Human ICAM4 Biotinylated antibody (100x) | 100ul |
| AR1103 | Avidin-Biotin-Peroxidase Complex (100x) | 100ul |
| AR1106-1 | Sample Diluent | 30ml |
| AR1106-2 | Antibody Diluent | 12ml |
| AR1106-3 | Avidin-Biotin-Peroxidase Diluent | 12ml |
| AR1104 | Color Developing Reagent (TMB) | 10ml |
| AR1105 | Stop Solution | 10ml |
| AR1106-5 | Wash Buffer (25x) | 20ml |
| PLA-SEA | Adhesive plate sealers | 4 |
*The kit components are not available for individual purchase.
Materials Required But Not Included In Kit
- Microplate Reader capable of reading absorbance at 450nm.
- Incubator.
- Automated plate washer (optional).
- Pipettes and pipette tips capable of precisely dispensing 0.5 µl through 1 ml volumes of aqueous solutions.
- Multichannel pipettes are recommended for large amount of samples.
- Deionized or distilled water.
- 500ml graduated cylinders.
- Test tubes for dilution.
Data Examples, Quality Control Data
Validation Standard Curve O.D. At 450nm
| Concentration(pg/ml) | 0 | 31.2 | 62.5 | 125 | 250 | 500 | 1,000 | 2,000 |
| O.D. | 0.038 | 0.057 | 0.091 | 0.192 | 0.415 | 0.756 | 1.483 | 1.967 |
Data Example Images
Click image to see more details

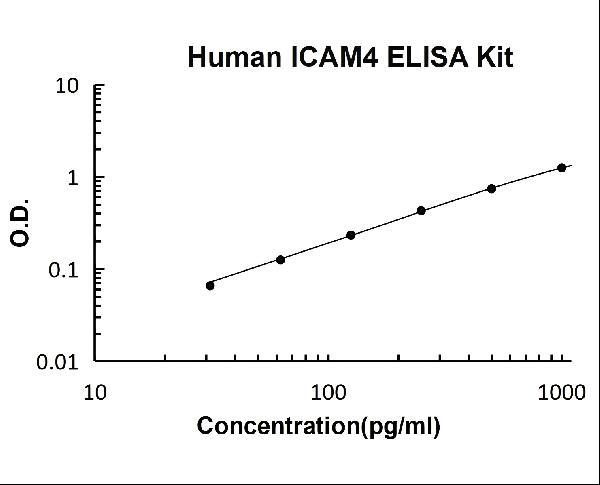

Human ICAM4 PicoKine ELISA Kit standard curve
Intra Assay Consistency & Inter Assay Consistency
We measured random samples of Human ICAM4 ELISA Kit PicoKine® within the same batch/lot to ensure the consistency of the kits' performances. ELISA intra assay consistency is measured using wells from the same plate/assay kit. ELISA inter assay consistency is measured using wells from different plates from the same batch production/lot.
| Intra-Assay Precision | Inter-Assay Precision | |||||
|---|---|---|---|---|---|---|
| Sample | 1 | 2 | 3 | 1 | 2 | 3 |
| n | 16 | 16 | 16 | 24 | 24 | 24 |
| Mean(pg/ml) | 49 | 163 | 653 | 52 | 176 | 774 |
| Standard deviation | 3.43 | 10.6 | 38.53 | 3.02 | 9.5 | 42.57 |
| CV(%) | 7% | 6.5% | 5.9% | 5.8% | 5.4% | 5.5% |
Reproducibility
We ensure reproducibility by testing three samples with differing concentrations of ICAM-4 in ELISA kits from four different production batches/lots.
| Lots | Lot 1 (pg/ml) | Lot 2 (pg/ml) | Lot 3 (pg/ml) | Lot 4 (pg/ml) | Mean (pg/ml) | Standard Deviation | CV (%) |
|---|---|---|---|---|---|---|---|
| Sample 1 | 49 | 45 | 39 | 47 | 45 | 2.66 | 5.9% |
| Sample 2 | 163 | 146 | 159 | 170 | 160 | 7.5 | 4.7% |
| Sample 3 | 653 | 632 | 644 | 679 | 652 | 36.51 | 5.6% |
Protein Target Info & Infographic
Gene/Protein Information For ICAM4 (Source: Uniprot.Org, NCBI)
Gene Name
ICAM4
Full Name
Intercellular adhesion molecule 4
Weight
29.265kDa
Superfamily
immunoglobulin superfamily
Alternative Names
CD242 antigen; CD242; ICAM4; ICAM-4; intercellular adhesion molecule 4 (Landsteiner-Wiener blood group); intercellular adhesion molecule 4 (LW blood group); intercellular adhesion molecule 4; intercellular adhesion molecule 4, Landsteiner-Wiener blood group; Landsteiner-Wiener blood group antigen a; Landsteiner-Wiener blood group glycoprotein; Landsteiner-Wiener blood group; LWLW blood group protein ICAM4 CD242, LW intercellular adhesion molecule 4 (Landsteiner-Wiener blood group) intercellular adhesion molecule 4|CD242 |LW a|Landsteiner-Wiener blood group a|Landsteiner-Wiener blood group glycoprotein|intercellular adhesion molecule 4 (LW blood group)
*if product is indicated to react with multiple species, protein info is based on the gene entry specified above in "species".For more info on ICAM4, check out the ICAM4 Infographic
We have 30,000+ of these available, one for each gene! check them out.
In this infographic you will see the following information for ICAM4: database IDs, super-family, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact us [email protected].
