Product Info Summary
| SKU: | EK1698 |
|---|---|
| Size: | 96 wells/kit, with removable strips. |
| Reactive Species: | Rat |
| Application: | ELISA |
| Sample Types: | cell culture supernatants, serum and plasma (heparin, EDTA). |
Product info
Product Name
Rat PDGF-BB ELISA Kit PicoKine®
SKU/Catalog Number
EK1698
Size
96 wells/kit, with removable strips.
*Question: How many samples can I assay/run in this kit?
Description
Rat PDGF-BB ELISA Kit PicoKine® (96 Tests). Quantitate Rat PDGF-BB in cell culture supernatants, serum and plasma (heparin, EDTA). Sensitivity: 10pg/ml . The brand Picokine indicates this is a premium quality ELISA kit. Each Picokine kit delivers precise quantification, high sensitivity, and excellent reproducibility. Only our most reliable and effective kits qualify as Picokine, guaranteeing top-tier results for your assays.
Storage & Handling
Store at 4°C for 6 months, at -20°C for 12 months. Avoid multiple freeze-thaw cycles (Ships with gel ice, can store for up to 3 days in room temperature. Freeze upon receiving.)
Cite This Product
Rat PDGF-BB ELISA Kit PicoKine® (Boster Biological Technology, Pleasanton CA, USA, Catalog # EK1698)
Clonality of Antibodies
See Datasheet for details
Standard Protein
Expression system for standard: E.coli; Immunogen sequence: S82-T190
Sensitivity
<10 pg/ml
Assay Range
62.5 pg/ml - 4,000 pg/ml
Standard Dilution Instructions
See datasheet of EK1698 for more details
Cross-reactivity
There is no detectable cross-reactivity with other relevant proteins.
Reactive Species
EK1698 is reactive to PDGF-BB in Rat samples
Validated Sample Types
cell culture supernatants, serum and plasma (heparin, EDTA).
Application Guarantee
EK1698 is guaranteed for ELISA in Rat by Boster Guarantee
See how Boster Bio validate our ELISA kits: ELISA Validation Information
Background of Pdgfb
PDGF-BB encodes the alpha subunit of transcription factor hypoxia-inducible factor-1 (HIF-1), which is a heterodimer composed of an alpha and a beta subunit. HIF-1 functions as a master regulator of cellular and systemic homeostatic response to hypoxia by activating transcription of many genes, including those involved in energy metabolism, angiogenesis, apoptosis, and other genes whose protein products increase oxygen delivery or facilitate metabolic adaptation to hypoxia. HIF-1 thus plays an essential role in embryonic vascularization, tumor angiogenesis and pathophysiology of ischemic disease. Alternatively spliced transcript variants encoding different isoforms have been identified for this gene.
Kit Components
| Catalog Number | Description | Quantity |
|---|---|---|
| EK1698-CAP | Anti-Rat PDGF-BB Pre-coated 96-well strip microplate | 1 |
| EK1698-ST | Rat PDGF-BB Standard | 2 vials, 10 ng/tube |
| EK1698-DA | Rat PDGF-BB Biotinylated antibody (100x) | 100ul |
| AR1103 | Avidin-Biotin-Peroxidase Complex (100x) | 100ul |
| AR1106-1 | Sample Diluent | 30ml |
| AR1106-2 | Antibody Diluent | 12ml |
| AR1106-3 | Avidin-Biotin-Peroxidase Diluent | 12ml |
| AR1104 | Color Developing Reagent (TMB) | 10ml |
| AR1105 | Stop Solution | 10ml |
| AR1106-5 | Wash Buffer (25x) | 20ml |
| PLA-SEA | Adhesive plate sealers | 4 |
*The kit components are not available for individual purchase.
Materials Required But Not Included In Kit
- Microplate Reader capable of reading absorbance at 450nm.
- Incubator.
- Automated plate washer (optional).
- Pipettes and pipette tips capable of precisely dispensing 0.5 µl through 1 ml volumes of aqueous solutions.
- Multichannel pipettes are recommended for large amount of samples.
- Deionized or distilled water.
- 500ml graduated cylinders.
- Test tubes for dilution.
Data Examples, Quality Control Data & Sample Dilution
Validation Standard Curve O.D. At 450nm
| Concentration (pg/ml) | 0 | 62.5 | 125 | 250 | 500 | 1000 | 2000 | 4000 |
| O.D. | 0.026 | 0.045 | 0.129 | 0.198 | 0.478 | 0.991 | 1.517 | 2.024 |
Data Example Images
Click image to see more details

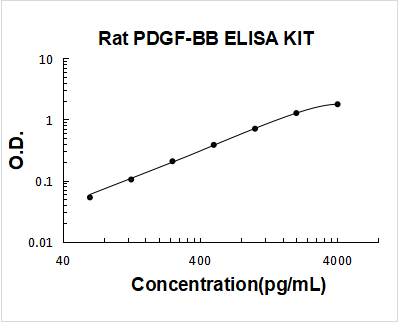

Rat PDGF-BB PicoKine ELISA Kit standard curve
Recommended Sample Dilution Ratios
According to our internal validation assays using this ELISA kit, to detect Pdgfb, For serum, dilution ratio is 1:1 and concentration is 1643-4291 pg/ml.
For plasma, dilution ratio is 1:1 and concentration is 174-1861 pg/ml..
Intra Assay Consistency & Inter Assay Consistency
We measured random samples of Rat PDGF-BB ELISA Kit PicoKine® within the same batch/lot to ensure the consistency of the kits' performances. ELISA intra assay consistency is measured using wells from the same plate/assay kit. ELISA inter assay consistency is measured using wells from different plates from the same batch production/lot.
| Intra-Assay Precision | Inter-Assay Precision | |||||
|---|---|---|---|---|---|---|
| Sample | 1 | 2 | 3 | 1 | 2 | 3 |
| n | 16 | 16 | 16 | 24 | 24 | 24 |
| Mean (pg/ml) | 108 | 651 | 1071 | 121 | 714 | 1110 |
| Standard deviation | 4.43 | 33.85 | 58.9 | 7.6 | 52.84 | 86.58 |
| CV (%) | 4.1% | 5.2% | 5.5% | 6.3% | 7.4% | 7.8% |
Reproducibility
We ensure reproducibility by testing three samples with differing concentrations of Pdgfb in ELISA kits from four different production batches/lots.
| Lots | Lot 1 (pg/ml) | Lot 2 (pg/ml) | Lot 3 (pg/ml) | Lot 4 (pg/ml) | Mean (pg/ml) | Standard Deviation | CV (%) |
|---|---|---|---|---|---|---|---|
| Sample 1 | 108 | 107 | 108 | 107 | 107 | 0.50 | 0.4% |
| Sample . 2 | 651 | 715 | 730 | 643 | 684 | 38.22 | 5.5%% |
| Sample 3 | 1071 | 1047 | 1054 | 1145 | 1079 | 38.95 | 3.6% |
Protein Target Info & Infographic
Gene/Protein Information For PDGF-BB (Source: Uniprot.Org, NCBI)
Gene Name
PDGF-BB
Full Name
Platelet-derived growth factor subunit B
Weight
25.603kDa
Superfamily
PDGF/VEGF growth factor family
Alternative Names
Cysteine and glycine-rich protein 2; Cysteine-rich protein 2; CRP2; Smooth muscle cell LIM protein; SmLIM; Csrp2; Smlim Pdgfb|SIS, c-sis|platelet derived growth factor subunit B|platelet-derived growth factor subunit B|PDGF subunit B|PDGF-2|Platelet-derived growth factor, same as Sis (Simian sarcoma viral oncogene homologue, c-sis)|pdgf protein|platelet derived growth factor, B polypeptide|platelet derived growth factor-bb|platelet-derived growth factor B chain|platelet-derived growth factor beta polypeptide (simian sarcoma viral (v-sis) oncogene homolog)
*if product is indicated to react with multiple species, protein info is based on the gene entry specified above in "species".For more info on PDGF-BB, check out the PDGF-BB Infographic
We have 30,000+ of these available, one for each gene! check them out.
In this infographic you will see the following information for PDGF-BB: database IDs, super-family, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact us [email protected].
Specific Publications For Rat PDGF-BB ELISA Kit PicoKine® (EK1698)
Hello CJ!
EK1698 has been cited in 14 publications:
*The publications in this section are manually curated by our staff scientists. They may differ from Bioz's machine gathered results. Both are accurate. If you find a publication citing this product but is missing from this list, please let us know we will issue you a thank-you coupon.
An improved osseointegration of metal implants by pitavastatin loaded multilayer films with osteogenic and angiogenic properties
Biomimetic hydrogel for rapid and scar-free healing of skin wounds inspired by the healing process of oral mucosa
Effect of Oxymatrine on the TGFbeta-Smad signaling pathway in rats with CCl4-induced hepatic fibrosis
The effects of Panax notoginseng saponins on the cytokines and peritoneal function in rats with peritoneal fibrosis
Dioscin, a natural steroid saponin, shows remarkable protective effect against acetaminophen-induced liver damage in vitro and in vivo
Inhibitive effect of cordyceps sinensis on experimental hepatic fibrosis and its possible mechanism
Benefical Therapeutic Effect of Chinese Herbal Xinji'erkang Formula on Hypertension-Induced Renal Injury in the 2-Kidney-1-Clip Hypertensive Rats
Danggui buxue tang suppresses high glucose-induced proliferation and extracellular matrix accumulation of mesangial cells via inhibiting lncRNA PVT1
Fluorofenidone Offers Improved Renoprotection at Early Interventions during the Course of Diabetic Nephropathy in?db/db?Mice via Multiple Pathways
Over-production of nitric oxide by oxidative stress-induced activation of the TGF-?1/PI3K/Akt pathway in mesangial cells cultured in high glucose
Recommended Resources
Here are featured tools and databases that you might find useful.
- Boster's Pathways Library
- Protein Databases
- Bioscience Research Protocol Resources
- Data Processing & Analysis Software
- Photo Editing Software
- Scientific Literature Resources
- Research Paper Management Tools
- Molecular Biology Software
- Primer Design Tools
- Bioinformatics Tools
- Phylogenetic Tree Analysis
Customer Reviews
Have you used Rat PDGF-BB ELISA Kit PicoKine®?
Submit a review and receive an Amazon gift card.
- $30 for a review with an image
0 Reviews For Rat PDGF-BB ELISA Kit PicoKine®
Customer Q&As
Have a question?
Find answers in Q&As, reviews.
Can't find your answer?
Submit your question
9 Customer Q&As for Rat PDGF-BB ELISA Kit PicoKine®
Question
Q: we need your recommendation regarding the dilution ratio of serum samples for detection of TGFB1 in Rat serum? I am trying to measure a multiple analytes and it requires 100ul of diluted samples for each well. We have limited sample quantitys so we like to dilute as much as possible.
Verified Customer
Verified customer
Asked: 2020-11-02
Answer
A: having little idea about the physiological or pathological context of your samples we cannot recommend a dilution ratio without performing a pilot test with your samples. Here is how you can perform a pilot study on your own: perform a serial dilution of your samples on the TGFB1 ELISA kit to make sure you have a linear ascending curve followed by a plateau, which signifies the samples saturating the detection limit of the kit. Then you can pick the dilution ratios from samples in the linear part of the curve as your experimental dilution ratio.
If you are interested in using our ELISA service, you can also send us your sample and we will take care of everything for you. You can check our service details here: bosterbio.com/services/assay-services/ELISA-testing-service
Since you mentioned you have limited samples, our cost effective multiplex ELISA service would fit perfectly for your needs, where we can generate dozens of data points using as little as 25ul sample volume. Information on this service is also in the above link.
Boster Scientific Support
Answered: 2020-11-02
Question
Q: Can TGFB1 ELISA Kits be used with tissue homogenates (or other non-validated sample types)?
Verified Customer
Verified customer
Asked: 2020-09-20
Answer
A: Unfortunately, Boster Bio has not routinely validated tissue homogenates as a sample type for ELISA kits. This does not mean that ELISA kits are not suitable for other sample types than we have tested: it means further investigation is required. One will need to perform a spike and recovery study to determine if an unvalidated sample type will work with a particular kit. To perform a spike and recovery experiment, one should divide a sample into two aliquots. In one of the aliquots, the user should spike in a known amount of the kit standard. a dilution series is performed comparing the spiked versus the unspiked sample. Generally, samples with expected recovery and linearity between 80-120% are considered acceptable. This method can be used to validate any sample type that has not been evaluated by Boster Bio. for a more detailed spike and recovery protocol, please contact technical support.
Note: acceptable ranges should be determined individually by each laboratory. Additionally, technical support can help determine if a buffer component is not compatible with a given ELISA kit. please view the Citations tab on the product webpage for peer-reviewed papers utilizing a wide range of sample types. We also have an innovator's reward program where if the user validates our ELISA kits in applications or samples previously not validated by Boster Bio or other users, and share such information with us by submit a review, we will reward the user's efforts with a free antibody or ELISA kit from our catalog. Biocompare.com will also give $20 Amazon giftcard as an additional reward, if the review is submitted there as well.
Boster Scientific Support
Answered: 2020-09-20
Question
Q: how much samples can be assayed in a Picokine® ELISA Kit?
Verified Customer
Verified customer
Asked: 2020-01-30
Answer
A: The Picokine® ELISA Kits will generally run a 7-point standard curve, non-specific binding wells, and 39 samples in duplicate. this may might differ by kit so please refer to each datasheet for details.
Boster Scientific Support
Answered: 2020-01-30
Question
Q: is it okay to use citrate plasma as samples in Rat TGFB1 Picokine® ELISA Kit (Catalog # EK1698)?
Z. Lopez
Verified customer
Asked: 2019-12-14
Answer
A: Chelating agents such as EDTA, Heparin and Citrate can irreversibly bind metal ions from the functional domain of TGFB1 causing disruption of its protein structure. TGFB1 may be denatured as a result and may compromise the assay's measurements. The chilating sites could also be too close to the epitopes needed for detection and block the antigen antibody reaction. We have tested the TGFB1 ELISA, treating samples with various anticoagulants and decided that heparin or EDTA can be used for treatment of blood/plasma samples. Do not use other anticoagulents when collecting samples.
Boster Scientific Support
Answered: 2019-12-14
Question
Q: how are cell lysates prepared for use in Picokine® ELISA kits?
Verified Customer
Verified customer
Asked: 2019-09-30
Answer
A: in those Picokine® ELISAs where cell or tissue lysate is a validated sample type, sample preparation instructions for lysate are present in the product insert. Components in lysate and lysis buffer can have an affect on immunoreactivity, so if lysate is not a validated sample type, care must be taken in sample preparation and validation.
Boster Scientific Support
Answered: 2019-09-30
Question
Q: how do I analyze ELISA data? I have performed TGFB1 level in serum.
Verified Customer
Verified customer
Asked: 2019-05-31
Answer
A: we recommend you this article on ELISA data analysis. bosterbio.com/ELISA-data-analysis-instructions. Boster also provides a free tool that you can use to analyze ELISA data. bosterbio.com/biology-research-tools/ELISA-data-analysis-online
Boster Scientific Support
Answered: 2019-05-31
Question
Q: What is the optimal O.D. value for TGFB1 ELISA kit? I used your TGFB1 ELISA on serum samples. For my positive control, I received an O.D. value of 0.826, while my negative control received a value of 0.136. I obtained both of these controls from the ELISA kit, where your kit's typical data shows O.D. values much higher than my positive control and your background is lower. My samples O.D. values are around 0.225 and the highest is only 0.357. can I consider these samples contain TGFB1 even though the O.D. values are not very high?
Verified Customer
Verified customer
Asked: 2019-02-19
Answer
A: The absolute O.D. values may change according to incubation time. The more you incubate the higher the O.D. values are going to be. a point of focus should be is whether your sample O.D. values are statistically significantly higher than your blank values. regarding your assay, you could extend your development time in the substrate incubation step to obtain higher O.D. values, as long as your negative controls' O.D. values are not increasing faster in relation to your positive controls. normally, a sample with O.D. value 2 standard deviations higher than your negative controls can be considered positive. We calculate the sensitivity of this ELISA kit by changeing cutoff O.D. value, calculated as the average of 20 negative controls plus 2 standard deviations of the 20 negative controls, into a concentration. in other words, when we claim this TGFB1 ELISA kit to have sensitivity of 10pg/ml , that means the minimum amount of TGFB1 that can be declared/interpreted as positive by the above standard is 10pg/ml .
Boster Scientific Support
Answered: 2019-02-19
Question
Q: how long can samples (cell cultures, serum, and plasma) be stored and still be stable for measurement TGFB1 using the EK1698 Rat TGFB1 Picokine® ELISA Kit?
M. Carter
Verified customer
Asked: 2018-07-10
Answer
A: Boster Bio does not assess sample stability. Variations in sample collection, processing, and storage may affect the stabilityof samples. It is recommend to assay sample on-stat collection when possible, or aliquot into single use volumes and store samples frozen. avoid repetitive freeze-thaw cycles with the stored samples to prevent protein degradation.
Boster Scientific Support
Answered: 2018-07-10
Question
Q: Are Boster Bio recombinant proteins and antibodies sterile?
Verified Customer
Verified customer
Asked: 2018-01-06
Answer
A: although the vials are bottled using aseptic techniques, heat-treated vials, and sterile stock solutions, they are not considered or guaranteed to be sterile. If sterile material is required for an experiment, the material can be filtered through a 0.2 micron filter designed for use with biological fluids.
Boster Scientific Support
Answered: 2018-01-06
